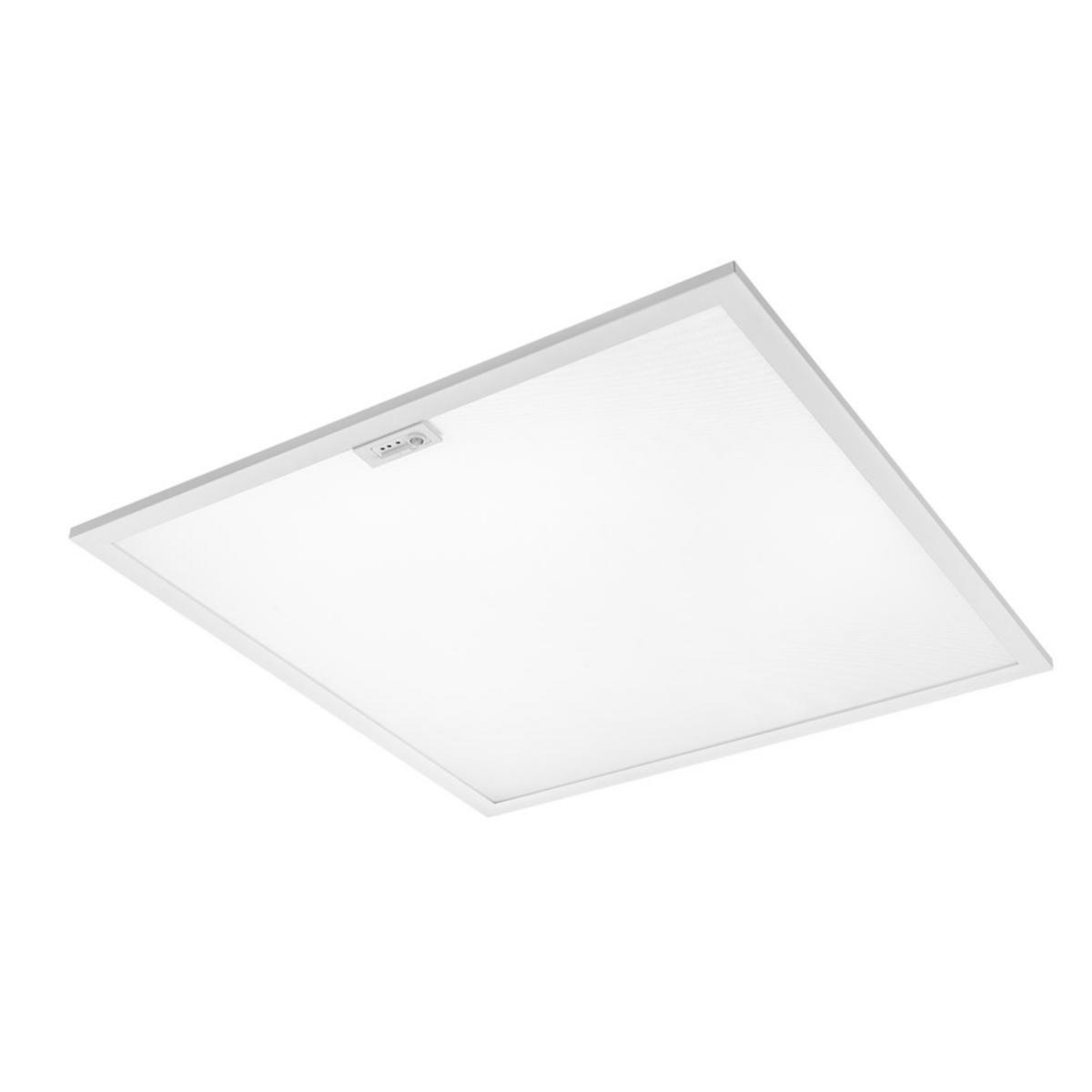

Interior luminaire Sense Pro Connect
Sense Pro 600x600 Con 3K
Article number: Suppl. article no:
7026638
212684
to see price and stock
Sense Pro Connect comes complete with driver and integrated wireless SG Connect sensor. The sensor is discreetly placed at the edge and activates the light when movement is detected, and it switches off after a defined period of time, which contributes to energy savings. The sensor also has an integrated daylight sensor. If this function is activated, the sensor will constantly aim to provide the desired amount of light within its working area. The light control is easily configured using the SG Connect Commissioning App, and the luminaire can be used individually or as part of a larger system, which can be easily expanded or reconfigured as needed. Driver is ordered separately (lumen is determined by driver) 700mA 25W 3440lm, 900mA 32W 4340lm and 1050mA 38W 4990lm.
- Article number: 7026638
- Suppl. article no: 212684
- Ean no: 7021982126840
- Material class QT0300
Technical data
- Packagin Size: 1 PCS/4 PCS/28 PCS
- Max. system power: 38 W
- Colour temperature: 3000 K
- Housing colour: White
- Type of control gear: LED operating device voltage-controlled
- Length: 597 mm
- Width: 597 mm
- Height/depth: 11 mm
- With movement sensor: Yes
- Degree of protection (IP), rear side: IP20
- Degree of protection (IP), front side: IP40
- Impact strength: IK10
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Voltage type: DC
- With control gear: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- With light source: Yes
- With light sensor: Yes
- Suitable for ceiling mounting: Yes
- Beam angle: > 80° - Extreme wide beam
- Number of poles: 2
- Conductor cross section: 1 mm²
- Dimming Zigbee: Yes
- Dimming manufacturer's proprietary system: Yes
- Colour of light: White
- Suitable for lamp power: 25-38 W
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: Yes
- Photobiological safety according to EN 62471: RG0
- Exchangeable control gear: Yes
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Nominal current: 700-1050 mA
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Light outlet: Direct
- Suitable for number of light sources: 1
- Movement sensor/presence detector technology: Passive infrared
- REACH Date: 2024-05-23
- REACH Information obligation: No
