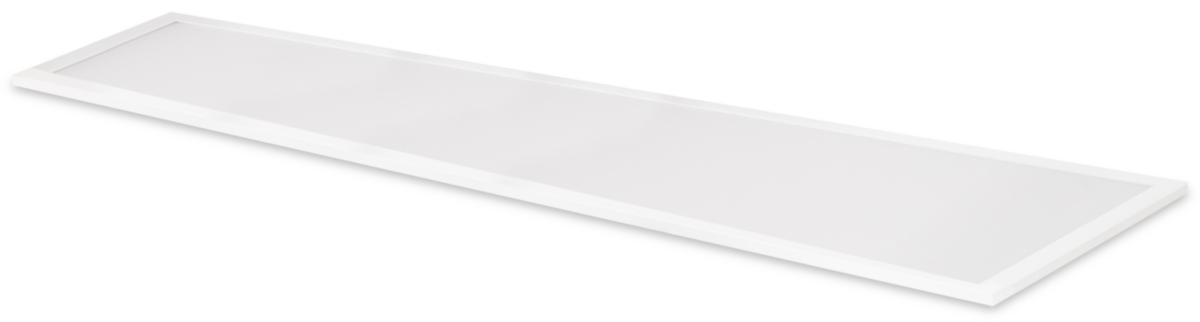

Recessed interior luminaire aLight Office LED Tec rectangular
LED PAN 40W 4000LM 3'/4'K DALI ALIGHT OFFIC E LED TEC
Article number:
7021097
to see price and stock
Recessed LED luminaire for general lighting in offices and similar environments with suspended ceilings. White lacquered aluminum frame. With or without DALI. The color temperature is easily changeable between 3000 Kelvin and 4000 Kelvin on both models using a switch on the back of the luminaire. The fixture is preset to 3000K from the factory. Microprismatic disc to create pleasant light distribution and minimize glare. Non-dimmable version is connected with pre-assembled cable rack 2.2 m. Dimmable version with DALI is connected with 230V in the drive.
- Article number: 7021097
- Ean no: 7333123142634
- Material class QT0200
Technical data
- Packagin Size: 1 PCS/5 PCS
- Width: 295 mm
- Height/depth: 10 mm
- Degree of protection (IP): IP20
- Colour temperature: 3000-4000 K
- Housing colour: White
- Length: 1195 mm
- Max. system power: 40 W
- Suitable for built-in mounting: Yes
- Suitable for light line configuration: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: No
- Suitable for ceiling mounting: Yes
- Material cover: Plastic, structured
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Unified Glare Ratio (UGR): 19
- Colour consistency (McAdam ellipse): SDCM3
- Colour of light adjustable: Positions
- Surface protection housing: Lacquered
- Exchangeable control gear: Yes
- REACH Date: 2025-04-15
- Nominal voltage: 220-240 V
- Rated luminous flux according to IEC 62722-2- 1: 4000 lm
- Suitable for wall mounting: No
- Lamp type: LED not exchangeable
- Suitable for workplace according to EN 12464-1: No
- REACH Information obligation: No
- Voltage type: AC
- Housing material: Aluminium
- Colour rendering index CRI: 80-89
- Dimming with push-button: Yes
- Dimmable: Yes
- With control gear: Yes
- Dimming DALI: Yes
