Hide-a-lite

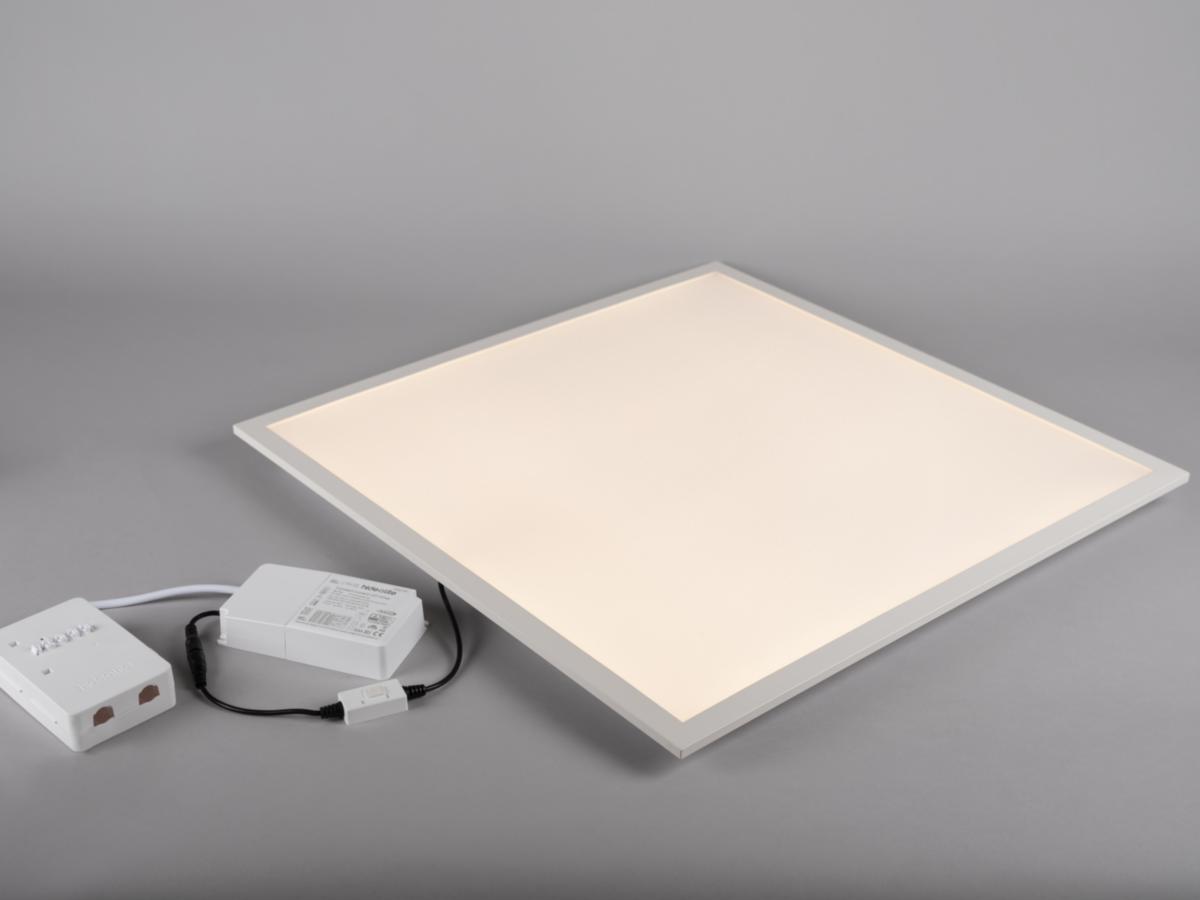

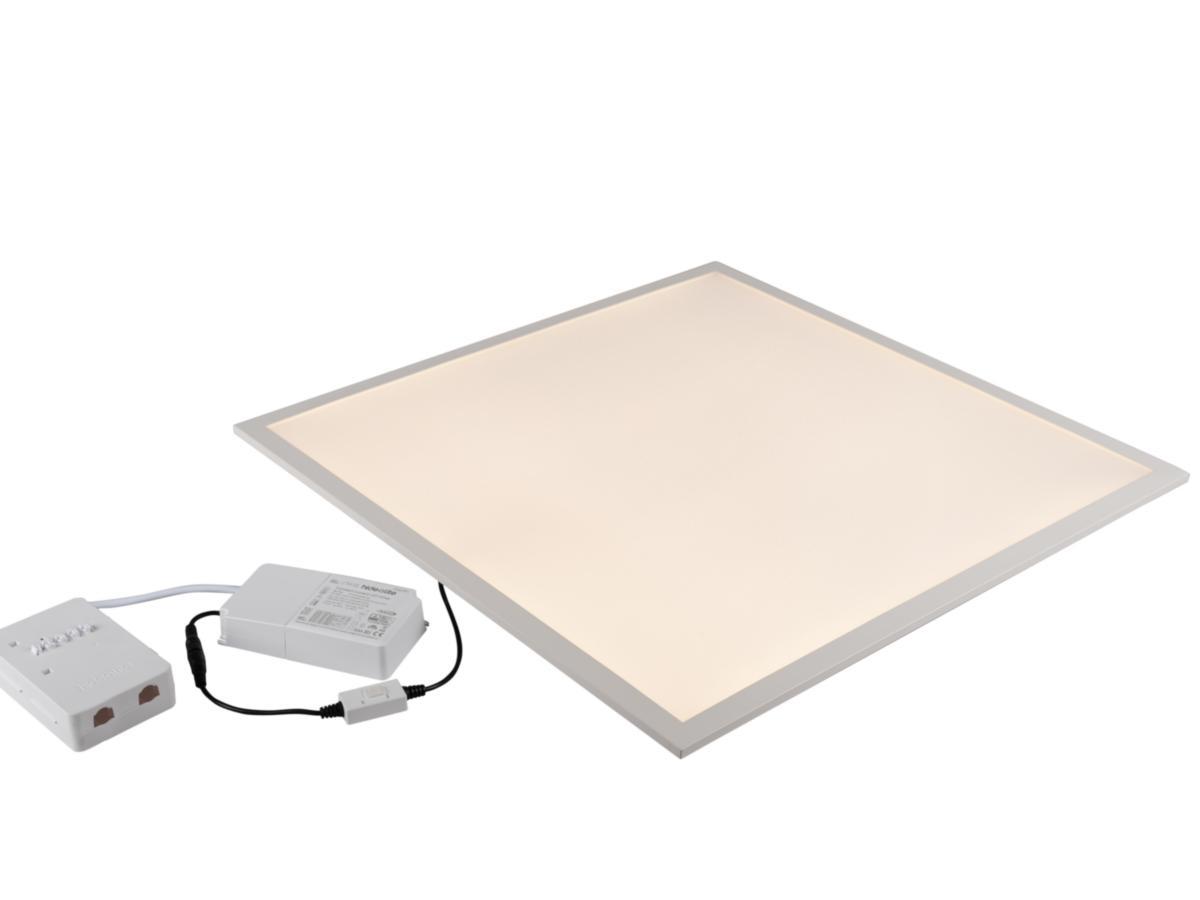

Recessed Interior luminaire Sky
PANEL SKY OP 3K/4K DALI Q-BOX DALI Q-BOX PANEL SKY OP
Article number: Suppl. article no:
7019645
7019645
to see price and stock
LED panel with opal louver for corridors and public areas. Mounted in suspended ceilings with visible support profile and can be supplemented with a spacer frame for surface mounting. Selectable color temperature via DIP switch. Complete with driver for phase dimming or DALI-2. Available with Q-Box Mini or Linect. FDIM version is delivered with 2m pre-assembled cable rack and is available in 5-packs for quick installation in larger projects.
MP=microprismatic louver
OP=opal louver
CAS=With Casambi for easy control directly in the app. Dim the light and create environments for focus, comfort and energy saving. Sky Panel Casambi is delivered complete with pre-assembled Casambi driver and 2m cable rack with plug.
MP=microprismatic louver
OP=opal louver
CAS=With Casambi for easy control directly in the app. Dim the light and create environments for focus, comfort and energy saving. Sky Panel Casambi is delivered complete with pre-assembled Casambi driver and 2m cable rack with plug.
- Article number: 7019645
- Suppl. article no: 7019645
- Ean no: 7392971143729
- Material class QT0320
Technical data
- Packagin Size: 1 ST/5 ST
- Design: OP, Q-Box
- Max. system power: 42 W
- Rated luminous flux according to IEC 62722-2- 1: 5050 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: Yes
- Dimming DALI-2: Yes
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: Yes
- Length: 595 mm
- Width: 595 mm
- Height/depth: 32 mm
- With movement sensor: No
- Degree of protection (IP): IP40
- Impact strength: IK06
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated life time L80/B10 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -10-40 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Material cover: Plastic, opal
- Luminous flux adjustable: Continuously variable
- Luminous intensity: 1750 cd
- Built-in width: 595 mm
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Built-in length: 595 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: No
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 5
- Conductor cross section: 2.5 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 120 lm/W
- Type of wiring: Suitable for loop-through wiring
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 0.9 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 0.85 %
- Operation by Bluetooth: No
- Flickering value Pst LM: 0.035
- Beam angle adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 43
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 43
- Stroboscope effect value SVM: 0.01
- Exchangeable control gear: Yes
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: Yes
- Nominal current: 600-1050 mA
- Built-in height/depth: 32 mm
- Connection type: Push-in clamp
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.9
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- GWP-tot (A1-A3): 10,4000 kgCO2e/ST
- REACH Date: 2023-04-03
- REACH contains candidate substances: Bly | Blynitrat
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- REACH Information obligation: Yes
- Emergency power supply integrated: No
- Dimming depending on control gear: No
