Recessed Interior luminaire Sky

PANEL SKY OP 3K/4K DIM DIM 2M SL.ST PANEL SKY OP
Article number:
7019640
Suppl. article no:
7019640
‌
‌
‌
‌
‌
 to see price and stock
Environmental product declarationByggvarubedomning: Accepteras

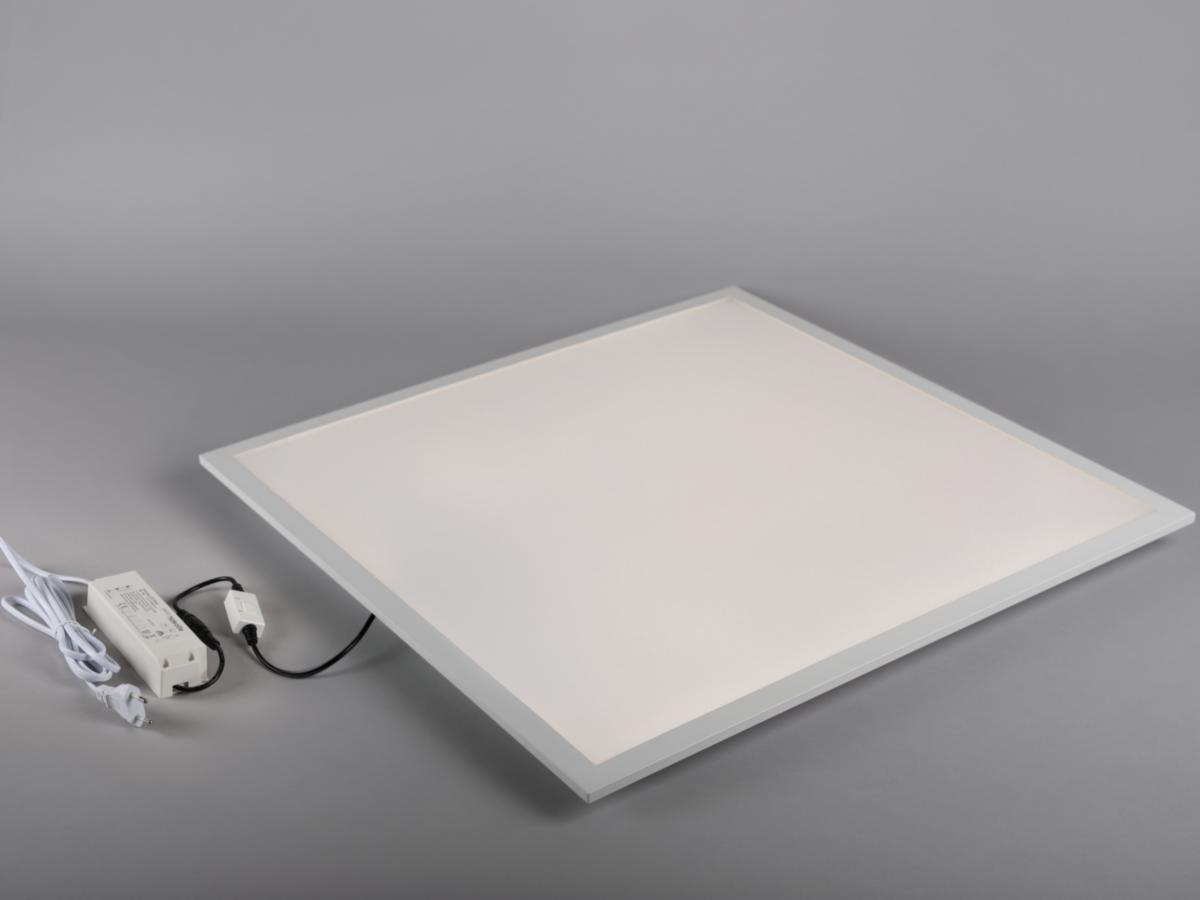

LED panel with opal louver for corridors and public areas. Mounted in suspended ceilings with visible support profile and can be supplemented with a spacer frame for surface mounting. Selectable color temperature via DIP switch. Complete with driver for phase dimming or DALI-2. Available with Q-Box Mini or Linect. FDIM version is delivered with 2m pre-assembled cable rack and is available in 5-packs for quick installation in larger projects.
MP=microprismatic louver
OP=opal louver
CAS=With Casambi for easy control directly in the app. Dim the light and create environments for focus, comfort and energy saving. Sky Panel Casambi is delivered complete with pre-assembled Casambi driver and 2m cable rack with plug.
  • Article number:
    7019640
  • Suppl. article no:
    7019640
  • Ean no:
    7392971143675
  • Material class
    QT0320
  • This is an alternative to item
    7015002 7016921
Technical data
  • Packagin Size: 1 ST/5 ST
  • Design: OP
  • Max. system power: 30 W
  • Rated luminous flux according to IEC 62722-2- 1: 3800 lm
  • Colour temperature: 3000-4000 K
  • Housing colour: White
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Type of control gear: LED operating device current-controlled
  • Dimming with push-button: No
  • Length: 595 mm
  • Width: 595 mm
  • Height/depth: 32 mm
  • Degree of protection (IP): IP40
  • Impact strength: IK06
  • Protection class according to IEC 61140: II
  • Colour consistency (McAdam ellipse): SDCM3
  • Housing material: Aluminium
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • With control gear: Yes
  • Suitable for light line configuration: No
  • Rated lifetime L70/B50 at 25 °C: 100000 h
  • Rated life time L80/B10 at 25 °C: 100000 h
  • Colour rendering index CRI: 80-89
  • Colour of light adjustable: Positions
  • Constant light output (CLO): No
  • Cover material: Plastic, opal
  • Luminous flux adjustable: Continuously variable
  • Built-in width: 595 mm
  • Lamp type: LED not exchangeable
  • Suitable for built-in mounting: Yes
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • Built-in length: 595 mm
  • Suitable for surface mounting: Yes
  • With light source: Yes
  • With light sensor: No
  • With movement sensor: No
  • Suitable for ceiling mounting: Yes
  • Type of grid: None
  • Beam angle: 80° - Extreme wide beam
  • Suitable for workplace according to EN 12464-1: No
  • Covering of the luminaire with thermally insulating material possible: No
  • Number of poles: 2
  • Conductor cross section: 0.75 mm²
  • Dimming phase cut-off (trailing edge): Yes
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming Touch and Dim: No
  • Dimming phase cut-on (leading edge): No
  • Dimmable: Yes
  • Glow-wire test according to IEC 60695-2-11: 650 °C - 30 s
  • Colour of light: White
  • Type of wiring: Ending
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 0.9 %
  • Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 0.85 %
  • Operation by Bluetooth: No
  • Flickering value Pst LM: 0.037
  • Beam angle adjustable: No
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 63
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 63
  • Stroboscope effect value SVM: 0.004
  • Exchangeable control gear: Yes
  • Surface protection housing: Powder coating
  • Light distribution: Symmetric
  • Light distributor: Diffuser lens/optic/panel
  • Energy efficiency class of the light source according to EU regulation 2019/2015: D
  • Suitable for wall mounting: Yes
  • Nominal current: 750 mA
  • Built-in height/depth: 32 mm
  • Connection type: Cable
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Power factor: 0.9
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • With air slots: No
  • Luminaire efficacy: 127 lm/W
  • REACH Date: 2022-06-01
  • Ambient temperature: -10-40 °C
  • REACH Information obligation: No
  • Dimming depending on control gear: No
