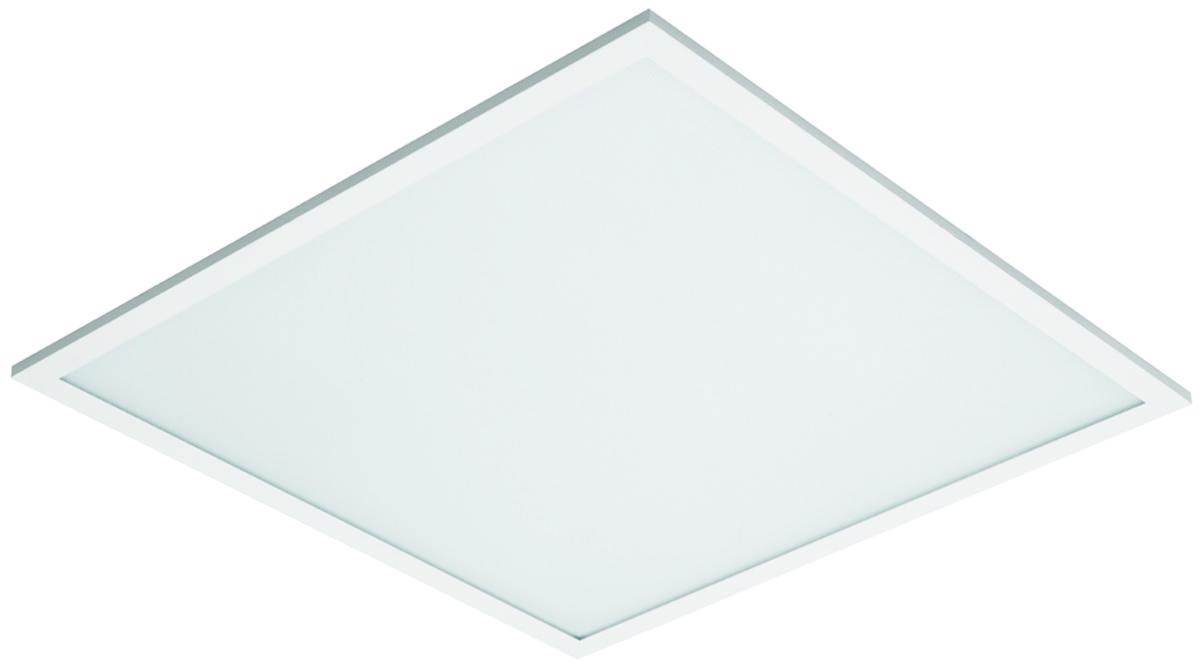

Recessed Interior light fixture aLight Office LED, a-collection
PROXIMITY TAG PR-4 KEY CARD
Article number:
7013476
to see price and stock
Area of application:
General lighting in offices and similar environments with suspended ceiling systems
or in hard ceiling with kit for surface mounted assemblies.
Version:
Recessed LED fitting for false ceiling with actuator.
White lacquered frame in aluminium. With or without DALI.
Available in colour temperature 3000K and 4000K. Opalised cover to
create a pleasant light distribution and minimise glare. IP class 40.
Assembly:
Fits into sub ceiling’s T- profile.
Connection:
Non-dimmable versions (7013474 and 7013475) are connected with pre-assembled cable stand 2.2 m.
Dimmable versions (7013476 and 7013477) are connected with 230V in the actuator.
General lighting in offices and similar environments with suspended ceiling systems
or in hard ceiling with kit for surface mounted assemblies.
Version:
Recessed LED fitting for false ceiling with actuator.
White lacquered frame in aluminium. With or without DALI.
Available in colour temperature 3000K and 4000K. Opalised cover to
create a pleasant light distribution and minimise glare. IP class 40.
Assembly:
Fits into sub ceiling’s T- profile.
Connection:
Non-dimmable versions (7013474 and 7013475) are connected with pre-assembled cable stand 2.2 m.
Dimmable versions (7013476 and 7013477) are connected with 230V in the actuator.
- Article number: 7013476
- Ean no: 7340080785361
- Material class QT0201
Technical data
- Packagin Size: 1 ST/30 ST/30 ST
- Type: Office LED DALI
- Max. system power: 35 W
- Rated luminous flux according to IEC 62722-2- 1: 3750 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: Yes
- Length: 595 mm
- Width: 595 mm
- Height/depth: 10 mm
- Degree of protection (IP): IP20
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 230 V
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 24
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Surface protection housing: Lacquered
- Connection type: Cable
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
