SG Armaturen

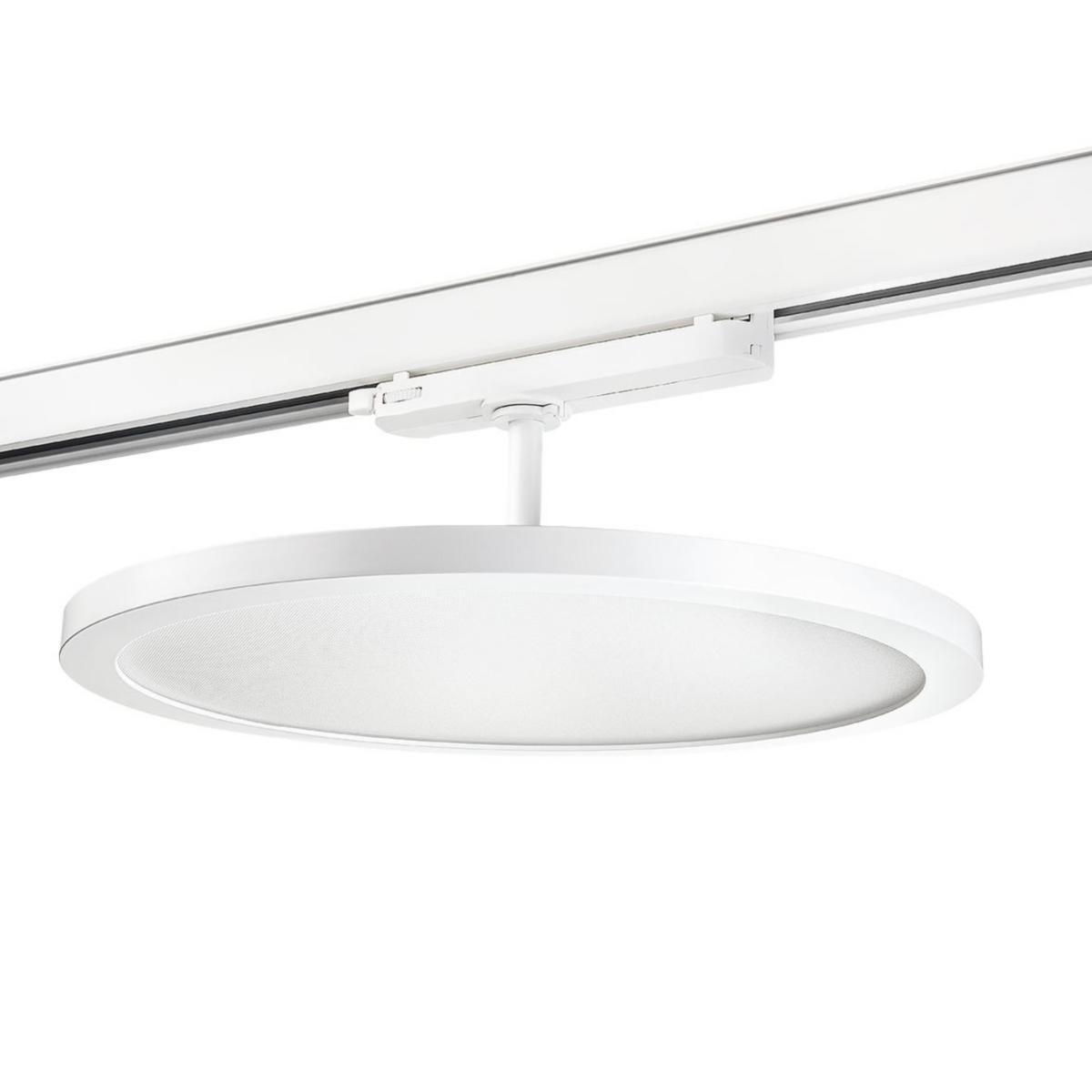

Interior luminaire Sense 320 for 3-phase rail
Sense 320 3-F 3000K
Article number: Suppl. article no:
7403285
212382
to see price and stock
Sense 320 3-phase is well suited as general lighting, such as in stores. Adapted to Shopline 3-phase system but also suitable for common 3-phase rails such as Global. Thin profile with opal prismatic front with low glare factor. The driver is integrated in the rail adapter.
- Article number: 7403285
- Suppl. article no: 212382
- Ean no: 7021982123825
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/4 PCS/24 PCS/24 PCS
- Max. system power: 27 W
- Rated luminous flux according to IEC 62722-2- 1: 3310 lm
- Colour temperature: 3000 K
- Housing colour: White
- Housing material: Aluminium
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Outer diameter: 320 mm
- Beam angle: > 80° - Extreme wide beam
- Degree of protection (IP): IP20
- Degree of protection (IP), front side: IP40
- Degree of protection (IP), rear side: IP20
- Protection class according to IEC 61140: II
- Reflector: Matt
- Colour rendering index CRI: 80-89
- Adjustability: Rotatable
- Colour of light: White
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Number of poles: 2
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
- Surface brushed: Yes
- Dimmable: No
- Power factor: 100
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 20 %
- Height/depth: 25 mm
- Lamp holder: Other
- Conductor cross section: 1 mm²
- Luminaire efficacy: 123 lm/W
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for lamp power: 27 W
- Suitable for light-track mounting: Yes
- Suitable for surface mounting: Yes
- Material cover: Plastic, opal
- With light source: Yes
- Nominal voltage: 230 V
- Rated ambient temperature according to IEC 62722-2-1: 0-25 °C
- Impact strength: IK00
- Voltage type: AC
- Type of wiring: Ending
- Surface protection: Powder coating
- Energy efficiency class: A++
- Nominal current: 300-700 mA
- Connection type: Busbar adaptor
- Luminous flux: 3000-3500 lm
- REACH Date: 2025-02-26
- REACH Information obligation: No
