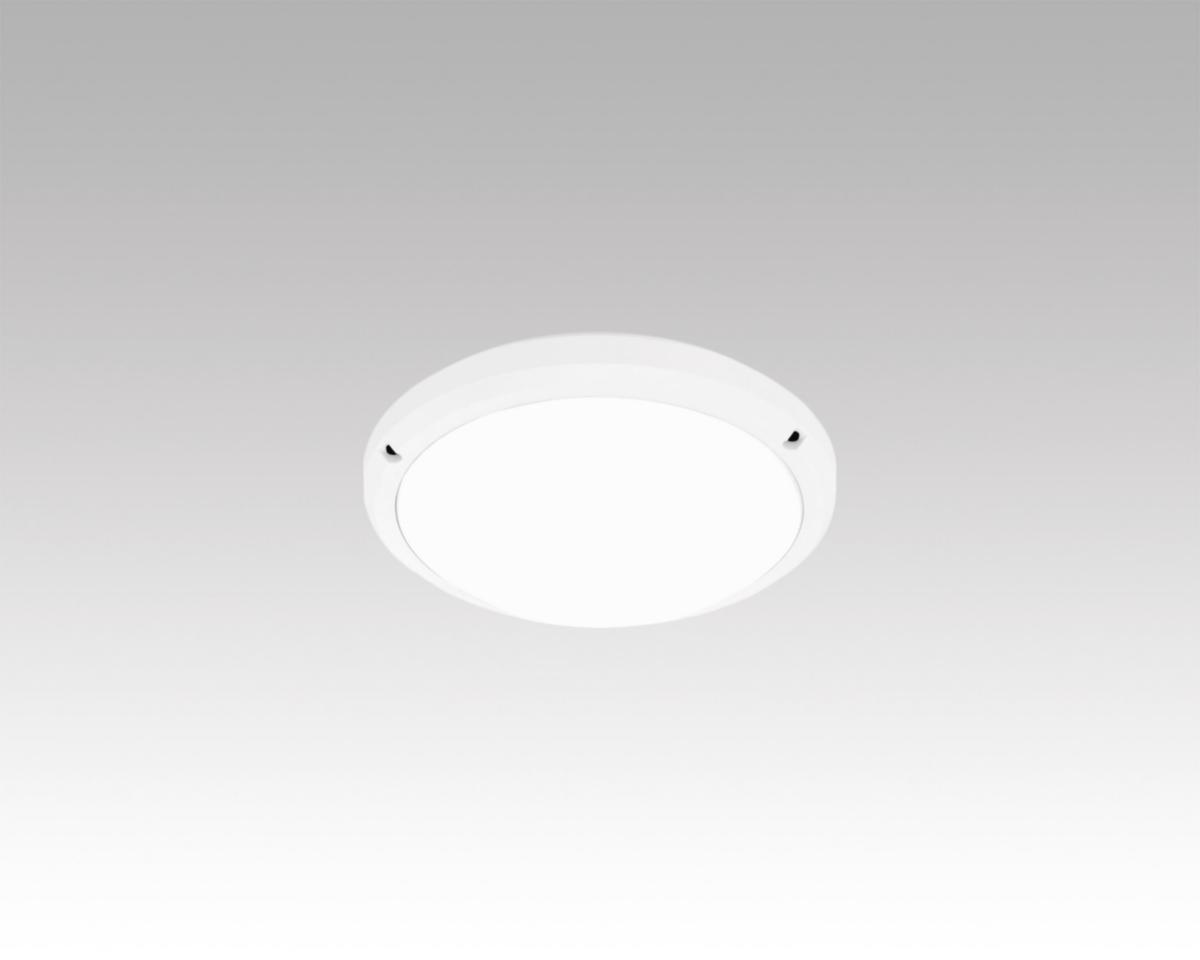

Ceiling and wall fitting Alien Maxi LED, Nokalux
LUM LED 1500LM 830 SENSOR ALIEN MAXI LED
Article number: Suppl. article no:
7534236
151622
to see price and stock
Alien Maxi LED Wall and ceiling plafond for LED that provides 1500 lumen in 3000 K light colour.
White frame and opal dome of polycarbonate.
Stainless steel screws for locking the dome.
Robust fitting that meets the iK + 10 (20 J) demands.
An Alien Maxi LED with alternative sensor types is available.
The energy savings is up to 50% compared to a compact light source.
Service life L70 50000 h MacAdam 3 SDCM
Fitting with sensor, turns lights on and off when there is movement.
Fitting with sensor and corridor function lights with 10% strength and increases to 100% when someone is present.
Also available with 60 min. emergency operation.
Class: IP 54 | CE
White frame and opal dome of polycarbonate.
Stainless steel screws for locking the dome.
Robust fitting that meets the iK + 10 (20 J) demands.
An Alien Maxi LED with alternative sensor types is available.
The energy savings is up to 50% compared to a compact light source.
Service life L70 50000 h MacAdam 3 SDCM
Fitting with sensor, turns lights on and off when there is movement.
Fitting with sensor and corridor function lights with 10% strength and increases to 100% when someone is present.
Also available with 60 min. emergency operation.
Class: IP 54 | CE
- Article number: 7534236
- Suppl. article no: 151622
- Material class QT6860
Technical data
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1190 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimmable: No
- With light sensor: Yes
- With movement sensor: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: Open beam/diffuse
- Outer diameter: 335 mm
- Cover material: Plastic, opal
- Lamp holder: Other
- Lamp type: LED exchangeable
- Housing material: Plastic
- Height/depth: 100 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP54
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: White
- With air slots: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: Yes
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK10
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 5
- Power factor: 0.97
- Conductor cross section: 2.5 mm²
- Light distributor: None
- Luminaire efficacy: 99 lm/W
- Suitable for light line configuration: Yes
- Rated lifetime L70/B50 at 25 °C: 54000 h
- Ambient temperature: -25-25 °C
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Surface protection housing: Untreated
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 92 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 75 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 27
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 46
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Suitable for wall mounting: Yes
- Connection type: Other
- REACH Date: 2024-04-23
- REACH Information obligation: No
