Exaktor
Ceiling luminaire Isa
Isa 400 BTDA RS 3-4K
Article number: Suppl. article no:
7511174
Isa 400 BTDA RS 3-4K
to see price and stock

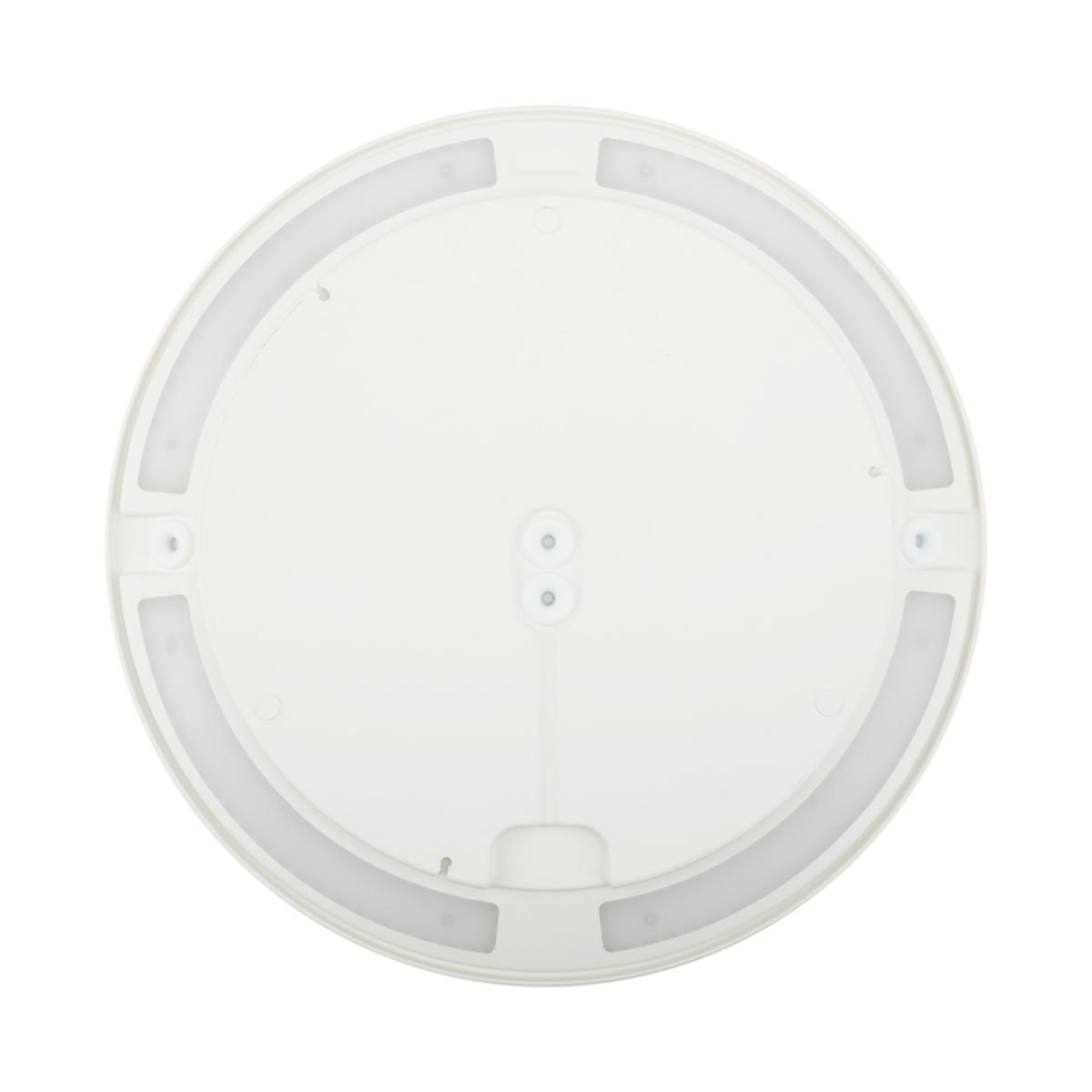

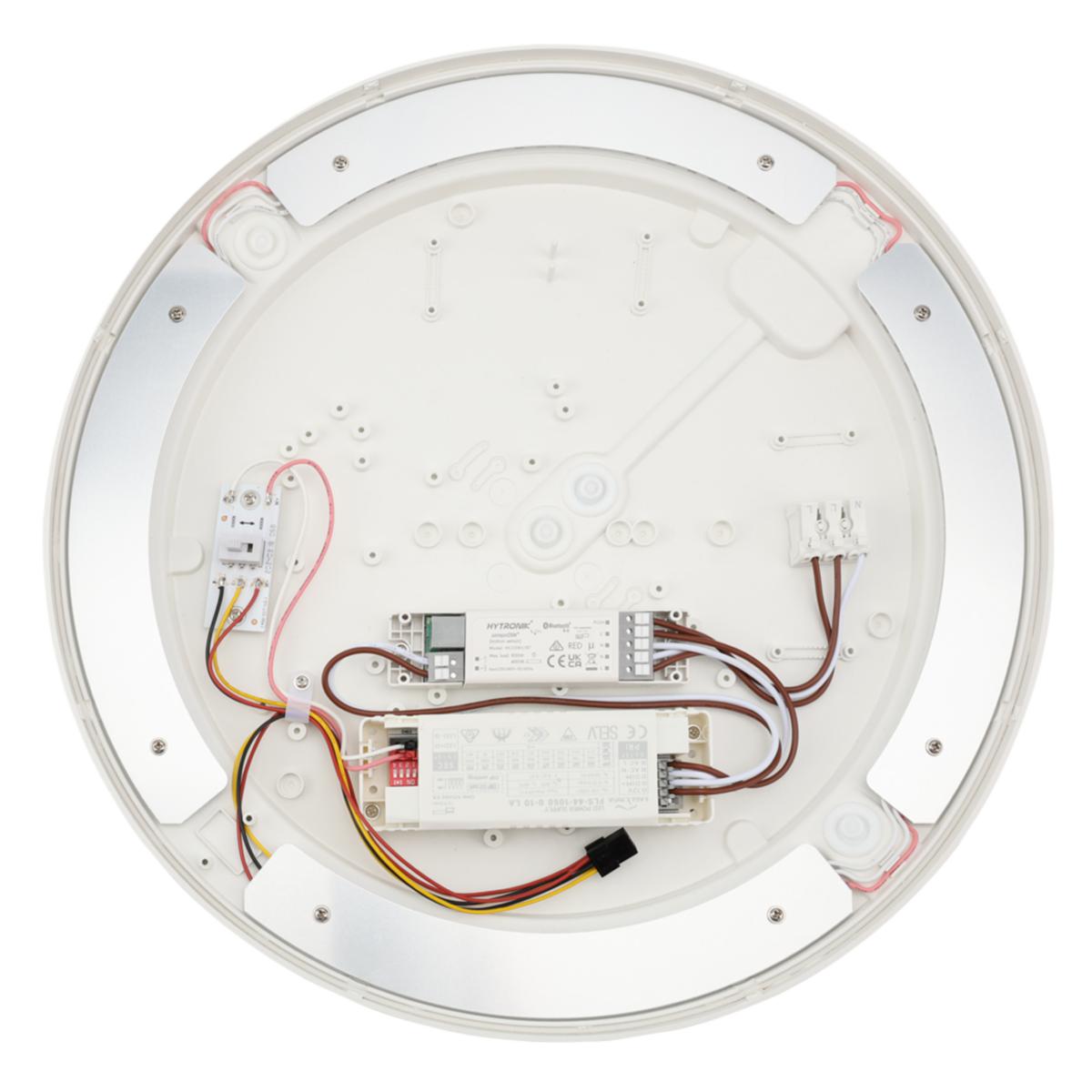

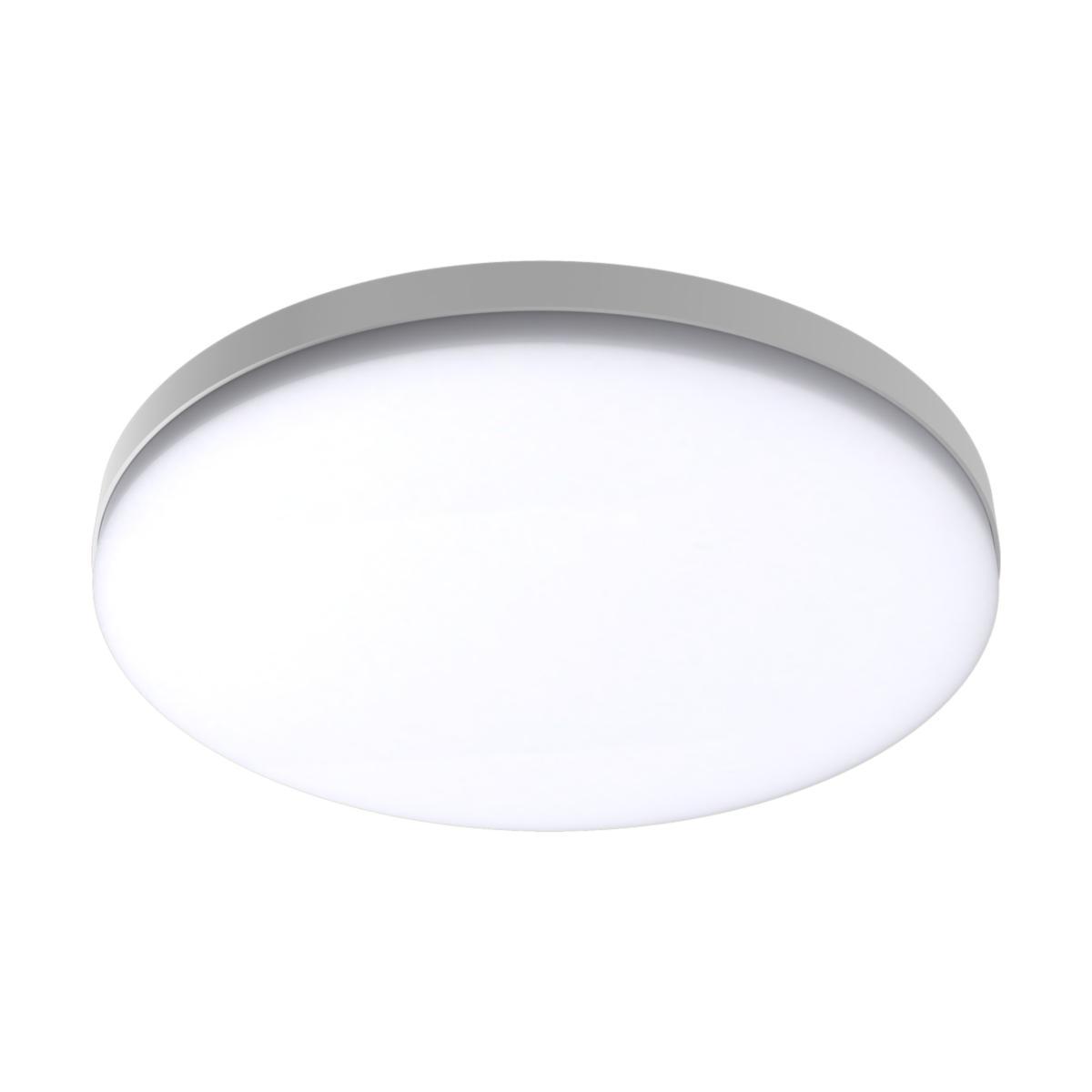

Plafond Isa 400 is a versatile and slim ceiling with a diameter of 400 mm. With adjustable color temperature and effect, the light can be easily adjusted as needed and the smart combination of down and up light gives the room a pleasant light distribution. The Isa 400 is mounted directly on the wall or ceiling and is ideal for spaces such as corridors, stairwells, storage rooms, toilets, basements, changing rooms and other public areas. The fixture is also excellent as pendant lighting in spaces with high ceilings. The range includes Isa with on/off (dimmable), microwave sensor (RS) or the app-controlled BTDA version for full control over the lighting. As an accessory, there is a decorative ring with microprismatic film (7511176), which reduces glare and creates a softer light. For flexible mounting, several accessories are available, such as cable suspension kit (7511177), roof cup and arm for suspension (7511178).
- Article number: 7511174
- Suppl. article no: Isa 400 BTDA RS 3-4K
- Ean no: 7330139295590
- Material class QT6930
Technical data
- Packagin Size: 1 PCS/6 PCS/48 PCS
- Design: Bluetooth & Microwave Sensor (BTDA RS)
- Max. system power: 32 W
- Rated luminous flux according to IEC 62722-2- 1: 2900-4500 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- With light sensor: Yes
- With movement sensor: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC
- Outer diameter: 400 mm
- Material cover: Plastic, opal
- Lamp type: LED exchangeable
- Housing material: Plastic
- Height/depth: 60 mm
- Suitable for number of light sources: 5
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: White
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: Yes
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK08
- Number of poles: 4
- Dimming with push-button: Yes
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming programmable: Yes
- Power factor: 0.97
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Luminaire efficacy: 140-145 lm/W
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: Yes
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 86 %
- Flickering value Pst LM: 1
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 40
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Stroboscope effect value SVM: 0.4
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: Yes
- Nominal current: 160-300 mA
- Connection type: Push-in clamp
- Movement sensor/presence detector technology: High frequency
- REACH Date: 2024-08-02
- REACH Information obligation: No
