Ledvance

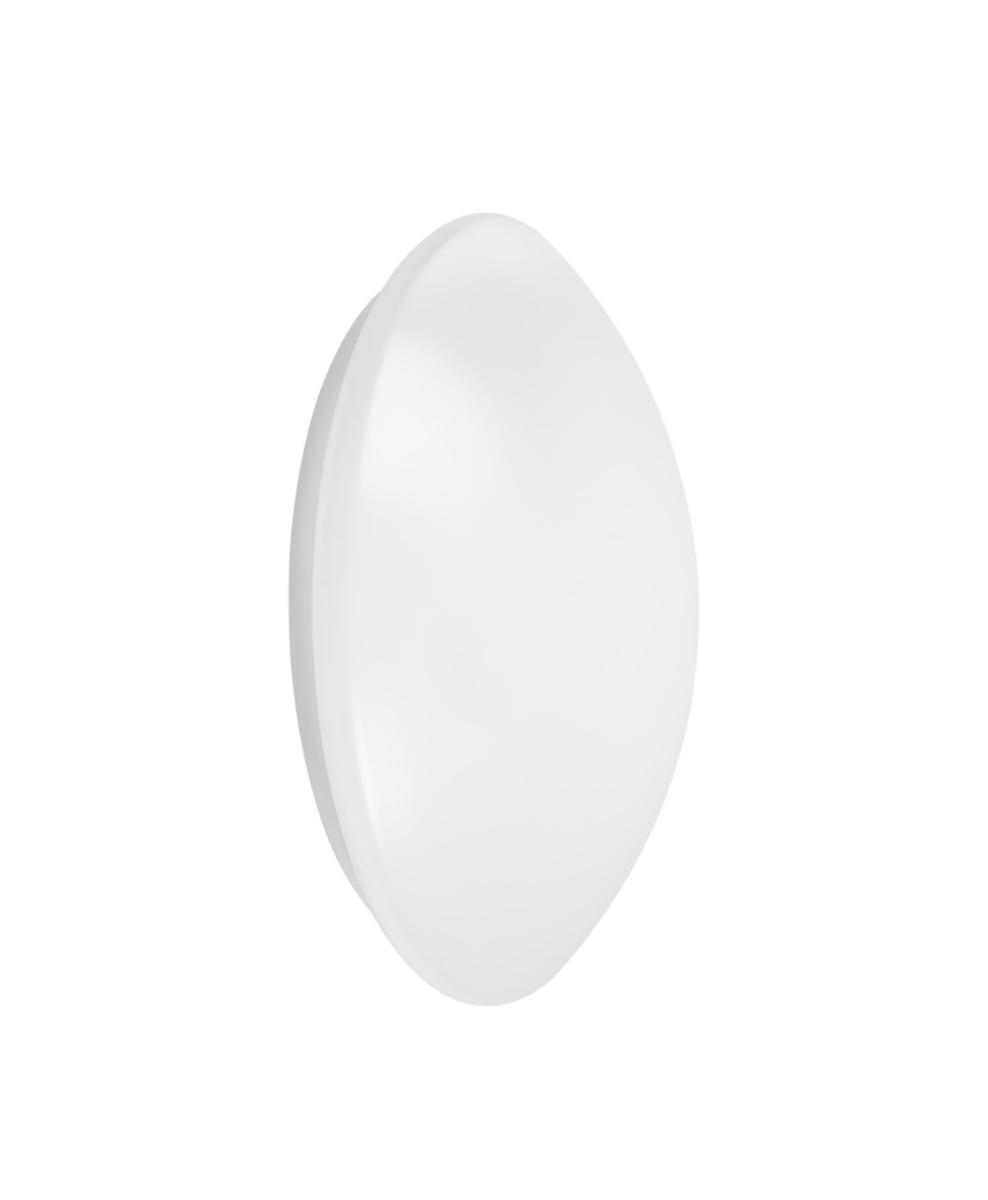

Ceiling and wall luminaire Surface
SURFACE-C 18W 830 IP44 4058075617940
Article number: Suppl. article no:
7508135
4058075617940
to see price and stock
LEDVANCE SURFACE CIRCULAR is an LED luminaire that replaces ceiling and wall-mounted luminaires with traditional compact fluorescent lamps. Available in versions with or without motion and daylight sensor. Very homogeneous light and high efficiency. Quick and easy to install. Spare cover is available as an accessory. Ideal for use in corridors, stairwells, bathrooms, public areas and foyers.
- Article number: 7508135
- Suppl. article no: 4058075617940
- Ean no: 4058075617940
- Material class QT6970
Technical data
- Packagin Size: 1 ST/5 ST/5 ST
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1440 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Dimmable: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Outer diameter: 350 mm
- Cover material: Plastic, opal
- Lamp holder: Other
- Lamp type: LED not exchangeable
- Housing material: Steel
- Height/depth: 115 mm
- Suitable for number of light sources: 0
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP44
- Type of control gear: Electronic ballast
- With control gear: Yes
- Colour of light: White
- With air slots: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: Matt
- Impact strength: IK03
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.55
- Glow-wire test according to IEC 60695-2-11: 650 °C - 30 s
- Light distributor: Other
- Luminaire efficacy: 80 lm/W
- Suitable for lamp power: 18 W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 30000 h
- Ambient temperature: -20-40 °C
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: RG0
- Colour consistency (McAdam ellipse): SDCM6
- Surface protection housing: Plastic-coated
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Exchangeable control gear: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- REACH Information obligation: No
