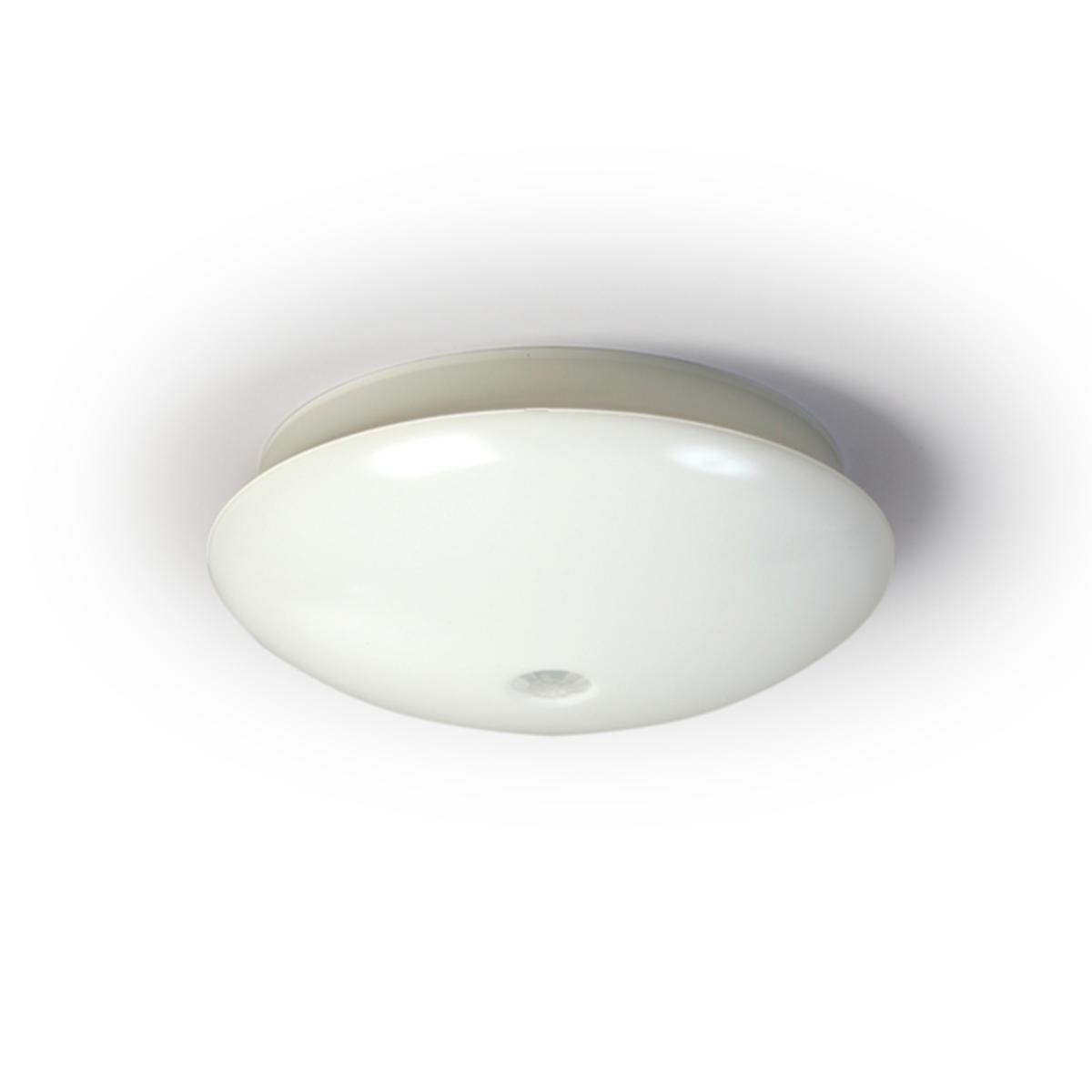

Ceiling luminaire aRound DW
CEIL LUM LED PIR 14W DW 1460LM AROUND 14 DW PIR
Article number:
7507817
to see price and stock
A small, easy to install and efficient LED luminaire that is adapted for both outdoor and indoor use. The light through the acrylic dome is even and well distributed. Color temperature (K) is set with a small dipswitch on the LED plate. Also available with motion detector (PIR). A maximum of 4 PIR luminaires (master) and 6 slaves should be connected to the same ignition wire.
- Article number: 7507817
- Ean no: 7333123104489
- Material class QT6800
Technical data
- Packagin Size: 1 ST/42 ST/42 ST
- Design: PIR
- Max. system power: 14 W
- Rated luminous flux according to IEC 62722-2- 1: 1460 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- With movement sensor: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC
- Outer diameter: 320 mm
- Material cover: Plastic, opal
- Lamp type: LED exchangeable
- Housing material: Plastic
- Height/depth: 111 mm
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- With control gear: Yes
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: Yes
- Light distribution: Symmetric
- Suitable for ceiling mounting: Yes
- Impact strength: IK06
- Suitable for workplace according to EN 12464-1: No
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: Yes
- Built-in diameter: 306 mm
- Suitable for wall mounting: No
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Built-in height/depth: 43 mm
- Connection type: Push-in clamp
- Movement sensor/presence detector technology: Passive infrared
- Rated life time L80/B10 at 25 °C: 100000 h
- REACH Date: 2023-06-02
- REACH Information obligation: No
