SG Armaturen

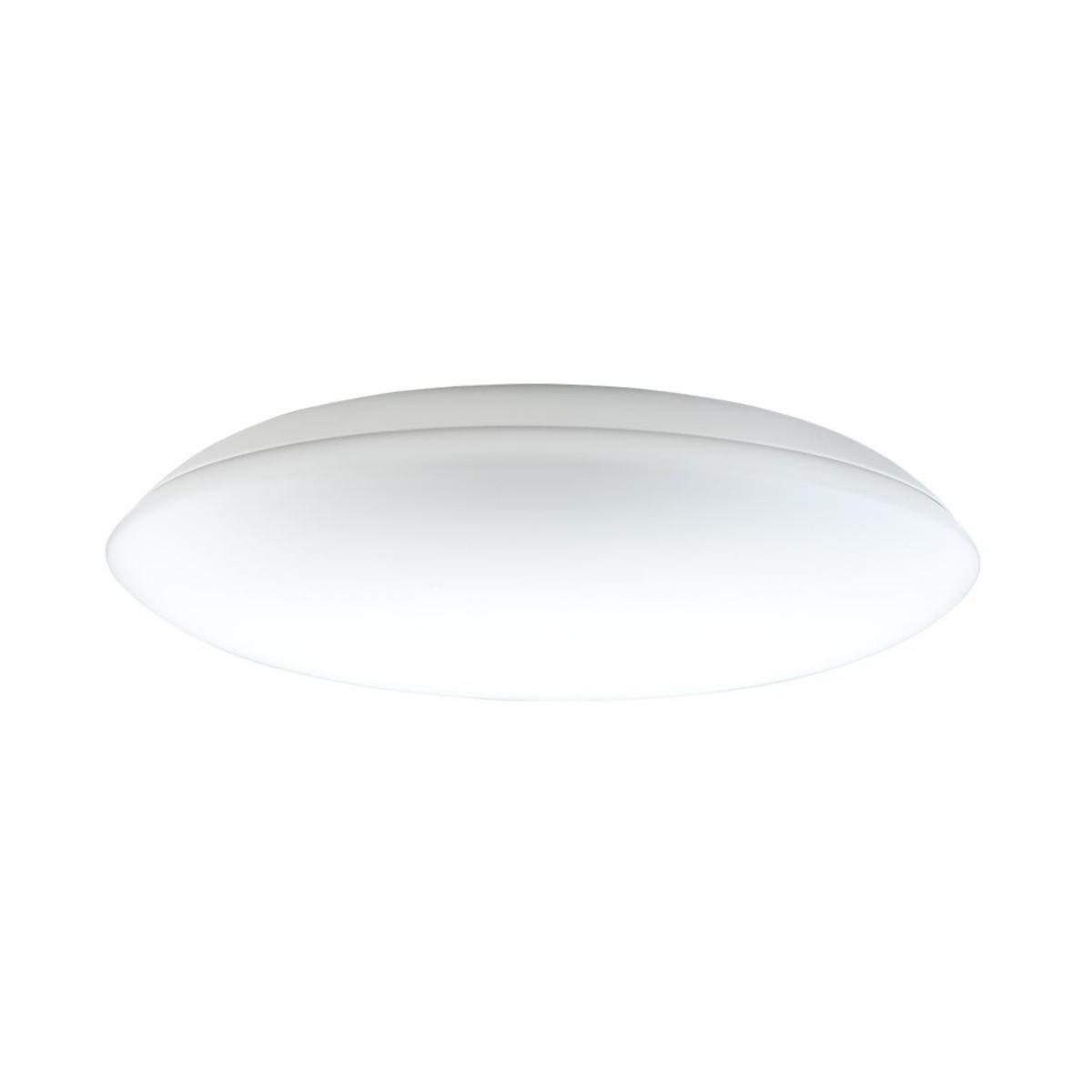

Ceiling luminaire Frosta
Frosta 330 White 3K Sense Dim
Article number: Suppl. article no:
7507621
211737
to see price and stock
A decorative plafond with matt opalised shielding. Suitable for both residential environments and hotels, restaurants and the like where a ceiling with an elegant design is desired. Frosta has a perfectly even shining surface and also an indirect light that gives the room increased space and comfort. Simple installation with holes that fit all standard ceiling boxes and break-out openings in the luminaire housing for external cabling. The light flux can be reduced via dip switches on the device.
- Article number: 7507621
- Suppl. article no: 211737
- Ean no: 7021982117374
- Material class QT9030
Technical data
- Packagin Size: 1 PCS/3 PCS
- Design: Sensor
- Max. system power: 17 W
- Rated luminous flux according to IEC 62722-2- 1: 2230 lm
- Colour temperature: 3000 K
- Housing colour: White
- Height/depth: 77 mm
- Outer diameter: 330 mm
- Degree of protection (IP): IP20
- Lamp type: LED exchangeable
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Material cover: Plastic, opal
- Voltage type: AC
- Number of poles: 5
- Dimmable: No
- Suitable for number of light sources: 1
- Suitable for lamp power: 17 W
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Protection class according to IEC 61140: II
- Housing material: Steel
- Lamp holder: Other
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 131 lm/W
- With light source: Yes
- With light sensor: Yes
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Type of wiring: Suitable for loop-through wiring
- Beam angle: > 80° - Extreme wide beam
- Photobiological safety according to EN 62471: RG0
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 22.7
- Surface protection housing: Lacquered
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 69
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 110
- Stroboscope effect value SVM: 0.03
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: Yes
- Nominal current: 125-450 mA
- Connection type: Push-in clamp
- REACH Date: 2024-08-23
- GWP-tot (A1-A3): 29,4503 kgCO2e/ST
- REACH Information obligation: No
