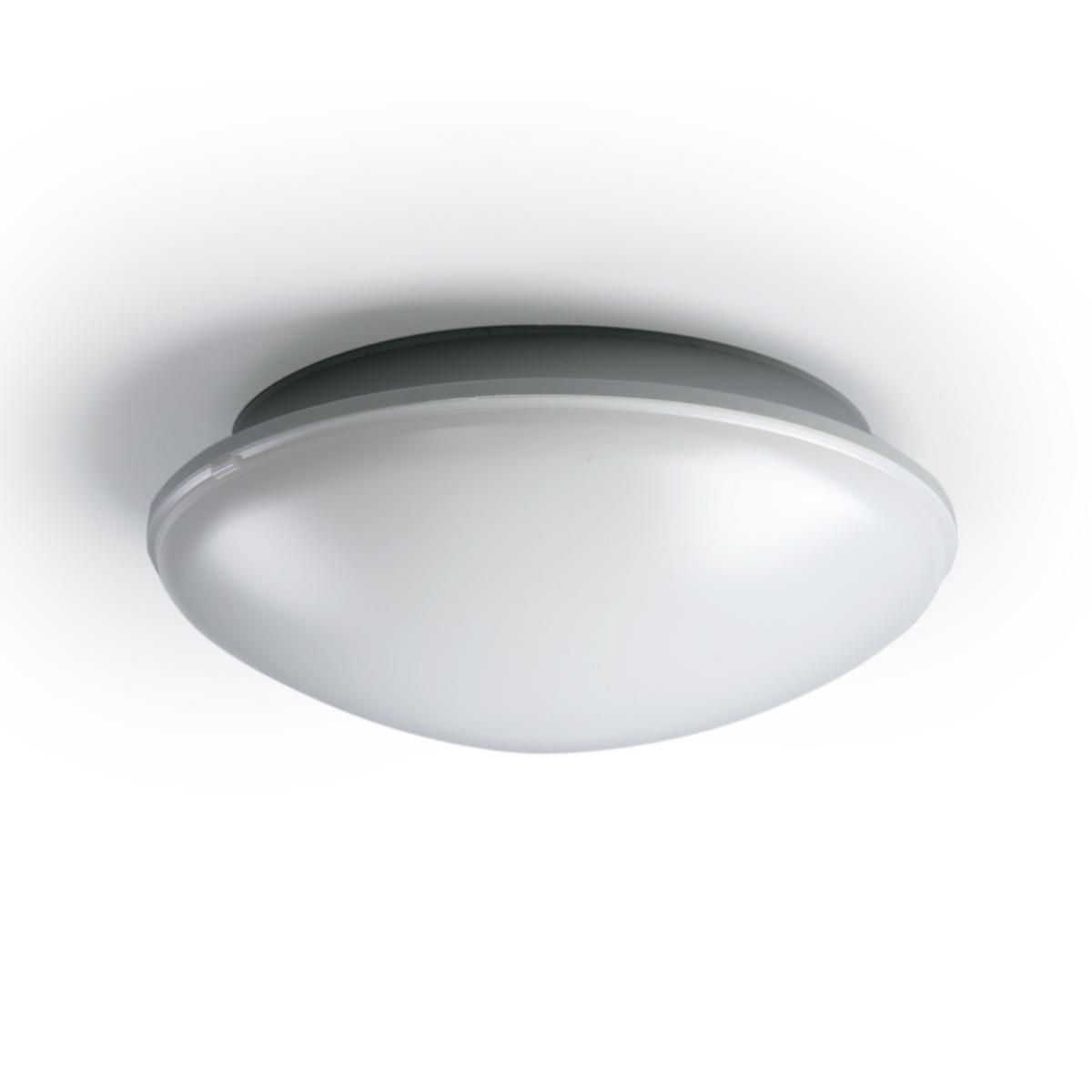

Ceiling and wall fitting AVR254 LED / LED PIR / LED Radar, Ensto
LUM LED IP54 8W 830 AVR254.18L/3K
Article number:
7501101
to see price and stock
Enclosure class IP 54
A low built all round fixture for both recessed and surface mounting. IP class IP54 Class II, over heating protection.
Equipped with 8 or 11W LED which gives a pleasant shine through the acrylic diffuser with a satin surface. Light colour 830 or 840. For recessed or surface-mounting. AVR254 The LED is excellently suited for the AVR254-decoration details and accessories of the series. AVR254 The LED is also available in the entire AVR254-series with PIR and Radar.
A low built all round fixture for both recessed and surface mounting. IP class IP54 Class II, over heating protection.
Equipped with 8 or 11W LED which gives a pleasant shine through the acrylic diffuser with a satin surface. Light colour 830 or 840. For recessed or surface-mounting. AVR254 The LED is excellently suited for the AVR254-decoration details and accessories of the series. AVR254 The LED is also available in the entire AVR254-series with PIR and Radar.
- Article number: 7501101
- Ean no: 6418677626142
- Material class QT6820
Technical data
- Packagin Size: 1 ST/120 ST/120 ST
- Colour cover: White
- Colour temperature: 3000 K
- Lamp power: 8 W
- Design: ON/OFF
- Degree of protection (IP): IP54
- Luminous flux: 530 lm
- Diameter: 254 mm
- Length: 254 mm
- Width: 254 mm
- Height/depth: 90 mm
- Colour display: CRI80
- Service life: 60000 h
- Max. system power: 8 W
- Colour temperature: 3000 K
- Power factor: 0.72
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for number of light sources: 1
- Built-in diameter: 240 mm
- REACH Date: 2021-06-18
- Built-in height/depth: 34 mm
- Nominal voltage: 230 V
- Covering of the luminaire with thermally insulating material possible: Yes
- Colour of light: White
- With movement sensor: No
- Beam angle: Open beam/diffuse
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Type of control gear: LED operating device voltage-controlled
- Suitable for light line configuration: No
- Dimming 1-10 V: No
- Dimming programmable: No
- Dimming 0-10 V: No
- Suitable for suspended mounting: No
- Housing material: Plastic
- Suitable for emergency lighting: No
- Dimming RF: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming LineSwitch: No
- Dimming phase cut-off (trailing edge): No
- With light source: Yes
- With air slots: No
- Suitable for ceiling mounting: Yes
- Dimming Zigbee: No
- Colour rendering index CRI: 80-89
- Dimming with push-button: No
- Dimming potentiometer (integrated): No
- Dimming Sine Wave Reduction: No
- With control gear: Yes
- Dimming DMX: No
- Dimming DALI: No
- Dimming Touch and Dim: No
- Impact strength: IK03
- Lamp type: LED exchangeable
- Suitable for workplace according to EN 12464-1: No
- Dimming mains voltage modulation: No
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- REACH Information obligation: No
- Voltage type: AC
- Material cover: Plastic, opal
- Light distribution: Symmetric
- Suitable for surface mounting: Yes
- Dimming DSI: No
- Type of grid: None
- Protection class according to IEC 61140: II
- Housing colour: Grey
- With light sensor: No
