AhlsellProductsElectricLighting 70-8370 Interior light luminairesPlafond luminaires and accessoriesPlafond luminaires
Ledvance
Downlight Universal

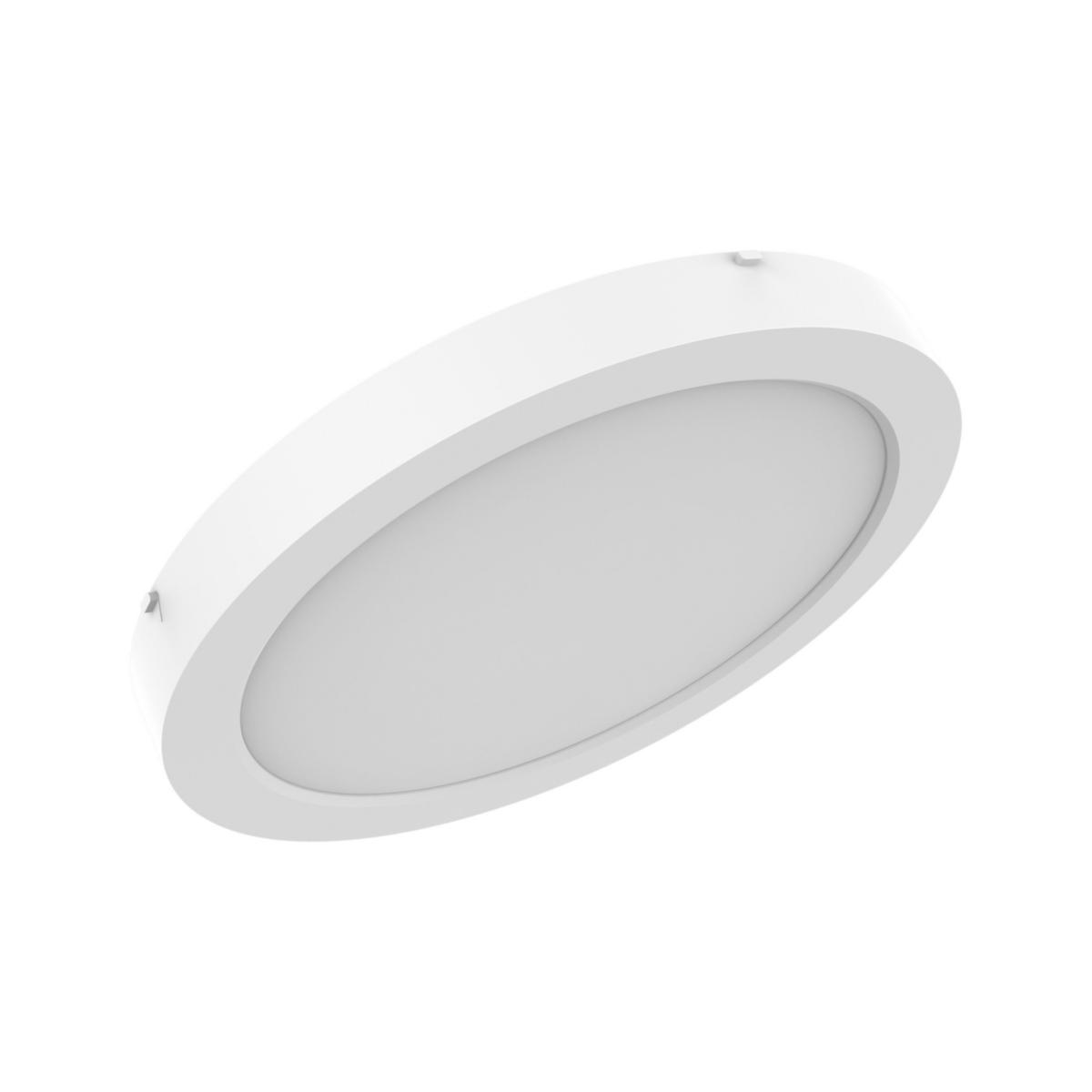

DOWNLIGHT UNIVERSAL DALI 18W
Article number: Suppl. article no:
7478244
4099854541339
to see price and stock
LEDVANCE DOWNLIGHT UNIVERSAL are partially recessed downlights that fit into existing cut-outs. The luminaire has a Multi Lumen function (selectable lumen) and Multi-Color (selectable light color). Available in two sizes 200 and 300 mm, with adjustable mounting springs for cut-out diameters of 65–260 mm. Easy installation thanks to integrated driver, through-wiring and long service life of 50,000 hours (L80) at 25 °C. IP44 from below, high efficiency up to 130 lm/W and very homogeneous light distribution. In addition to on/off, versions with DALI-2 and sensor are available. Decorative rings in black and brushed nickel are available as accessories and must be ordered separately. Safety wire included.
- Article number: 7478244
- Suppl. article no: 4099854541339
- Ean no: 4099854541339
- Material class QT4400
Technical data
- Packagin Size: 1 PCS/14 PCS
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 2350 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: Yes
- Dimming DALI-2: Yes
- Outer diameter: 217 mm
- Built-in diameter: 65-185 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: Electronic ballast
- Reflector: None
- Housing material: Plastic
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 4
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG0
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Plastic, opal
- Dimmable: Yes
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 125-135 lm/W
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK03
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM4
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 22
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 29
- IFTTT support available: No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Nominal current: 84 mA
- Connection type: Push-in clamp
- Compatible with Casambi: No
- Containing product according to 2019/2020/EU: Yes
- With presence detector: No
- Emergency power supply system: None
- Emergency function monitoring system: None
- REACH Date: 2025-01-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
