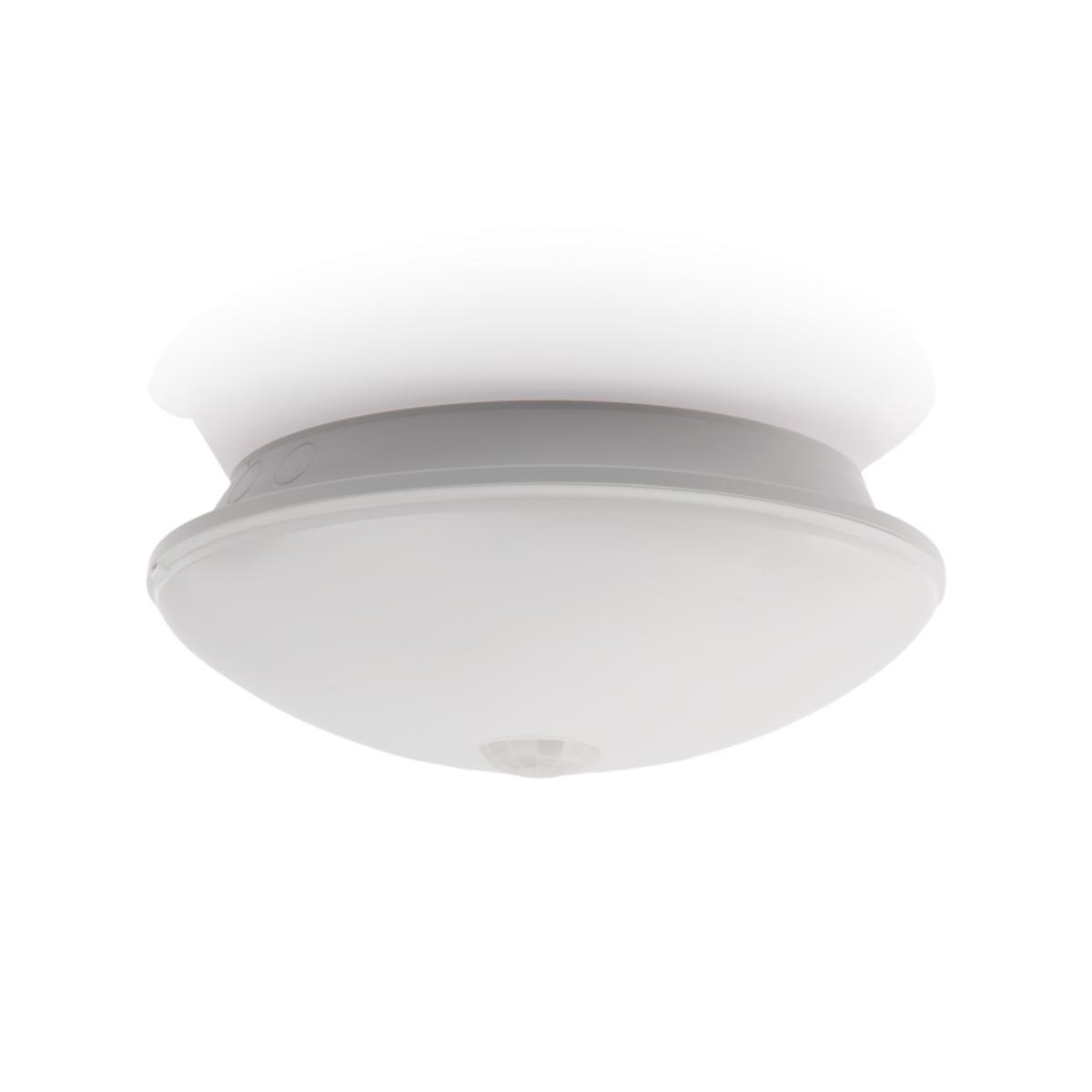

Ceiling luminaire aRound LED 8
AROUND LED 8 PIR 3000K/4000K
Article number: Suppl. article no:
7028591
7333123911049
to see price and stock
A small, easy-to-install and efficient LED luminaire that is suitable for both outdoor and indoor use. The light through the acrylic dome is even and well distributed. Protection class II means that PE does not need to be connected.
PIR models: Max 4 PIR luminaires (master) and a total of 6 slaves should be connected to the same ignition wire.
Detection area: 360°/135° Ø approx. 5-6 m (ceiling mounting recommended)
After-lighting time: 1-30 min
PIR models: Max 4 PIR luminaires (master) and a total of 6 slaves should be connected to the same ignition wire.
Detection area: 360°/135° Ø approx. 5-6 m (ceiling mounting recommended)
After-lighting time: 1-30 min
- Article number: 7028591
- Suppl. article no: 7333123911049
- Ean no: 7333123911049
- Material class QT6800
- This is an alternative to item 7501067 7502067
Technical data
- Design: PIR
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 440-750 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Nominal voltage: 220-240 V
- Voltage type: AC
- Outer diameter: 254 mm
- Material cover: Plastic, opal
- Lamp type: LED exchangeable
- Housing material: Plastic
- Height/depth: 90 mm
- Protection class according to IEC 61140: II
- With control gear: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: Yes
- Light distribution: Symmetric
- Suitable for ceiling mounting: Yes
- Impact strength: IK06
- Suitable for workplace according to EN 12464-1: Yes
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: Yes
- Built-in diameter: 240 mm
- Suitable for wall mounting: Yes
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Built-in height/depth: 34 mm
- Connection type: Push-in clamp
- REACH Date: 2025-03-01
- REACH Information obligation: No
