Westal

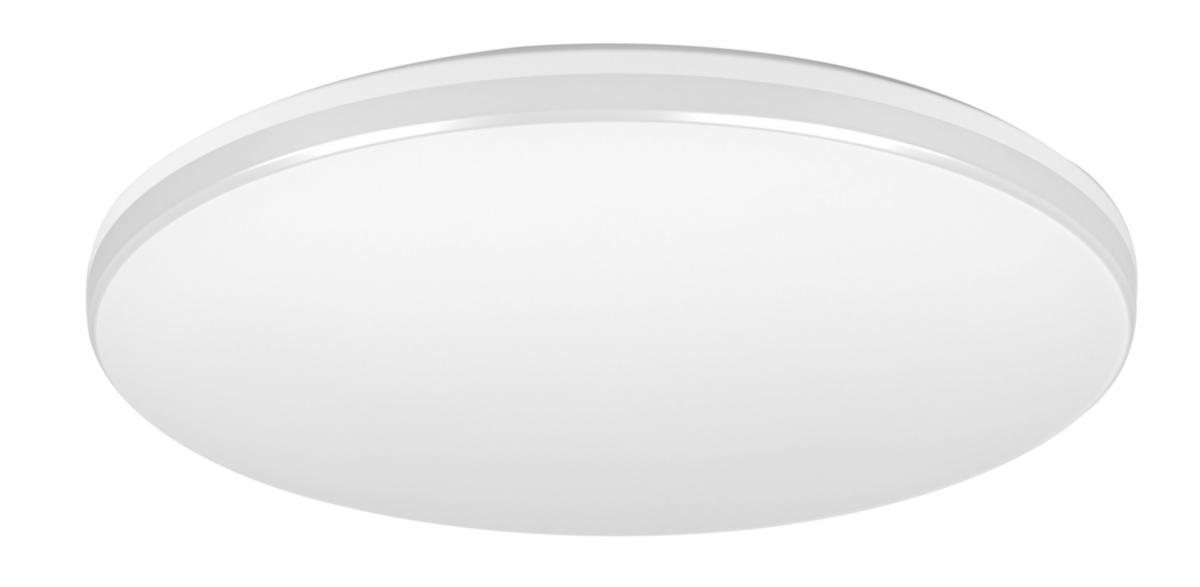

Ceiling luminaire Athena II dimflex
Ceiling Athena II Dim Flex 12W
Article number: Suppl. article no:
7026945
04-3-01
to see price and stock
Thin ceiling and wall ceiling made of polycarbonate with opal anti-glare protection, equipped with LED unit with DIP switch for setting color temperature. Dimmable with front-back edge dimmer. With quick connection terminal block and double knockouts for external cable and forwarding.
- Article number: 7026945
- Suppl. article no: 04-3-01
- Ean no: 07393047043011
- Material class QT7000
Technical data
- Packagin Size: 1 PCS/10 PCS
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1444 lm
- Colour temperature: 2700-4000 K
- Housing colour: White
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Height/depth: 42 mm
- Outer diameter: 250 mm
- With movement sensor: No
- Degree of protection (IP): IP44
- Impact strength: IK10
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Plastic
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-50 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Material cover: Plastic, opal
- Luminous flux adjustable: Positions
- Lamp type: LED exchangeable
- Suitable for built-in mounting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: Yes
- Light distribution: Symmetric
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Light outlet: Direct
- REACH Date: 2024-01-26
- REACH Information obligation: No
