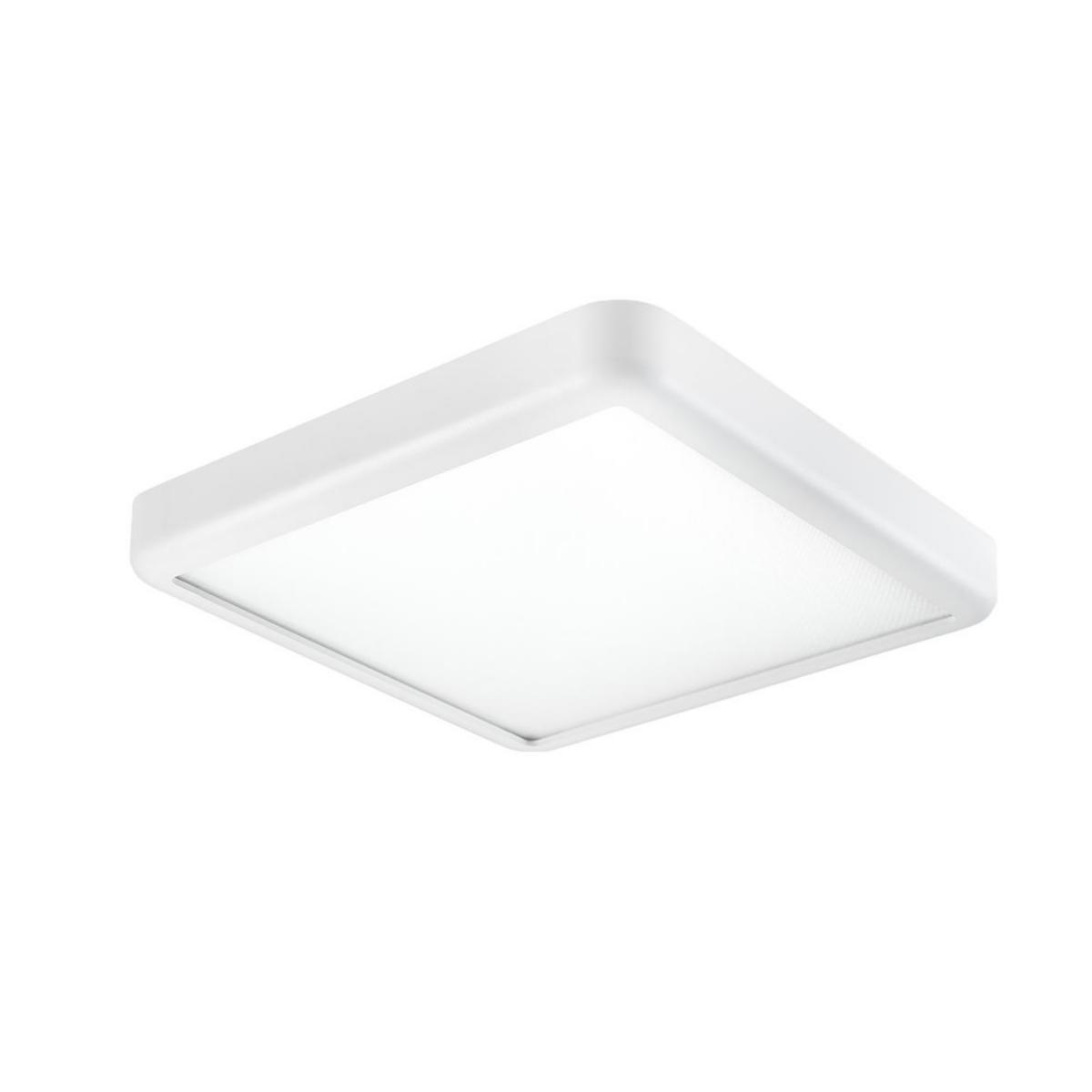

Interior luminaire Sense Surface 370x370
Sense Surface 370x370 3K
Article number: Suppl. article no:
7021281
212394
to see price and stock
Sense Surface is an elegant, thin surface-mounted luminaire that is illuminated by LED side lights. Simple, tool-free installation with quick-connectors between bracket and front held in place by strong magnets. An innovative mechanism allows you to choose whether the front should lie completely in line with the ceiling with hidden cables or float just below with visible cables. Supplied including drive unit, dimmable with trailing edge control.
- Article number: 7021281
- Suppl. article no: 212394
- Ean no: 7021982123948
- Material class QT0300
Technical data
- Packagin Size: 1 PCS/4 PCS
- Max. system power: 17 W
- Rated luminous flux according to IEC 62722-2- 1: 1980 lm
- Colour temperature: 3000 K
- Housing colour: White
- Type of control gear: LED operating device current-controlled
- Length: 370 mm
- Width: 370 mm
- Height/depth: 45 mm
- Degree of protection (IP): IP20
- Impact strength: IK10
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Constant light output (CLO): No
- Material cover: Plastic, opal
- Luminous flux adjustable: Positions
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for surface mounting: Yes
- With light source: Yes
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: Open beam/diffuse
- Number of poles: 2
- Conductor cross section: 1 mm²
- Dimming phase cut-off (trailing edge): Yes
- Colour of light: White
- Luminaire efficacy: 116 lm/W
- Suitable for lamp power: 17 W
- Degree of protection (NEMA): Other
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 69
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 69
- IFTTT support available: No
- Exchangeable control gear: No
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Other
- Nominal current: 200-450 mA
- Connection type: Push-in clamp
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light outlet: Direct
- Suitable for number of light sources: 1
- REACH Date: 2024-08-23
- REACH Information obligation: No
