AhlsellProductsElectricLighting 70-8370 Interior light luminairesBench luminaires and accessoriesBench luminaires
Exaktor

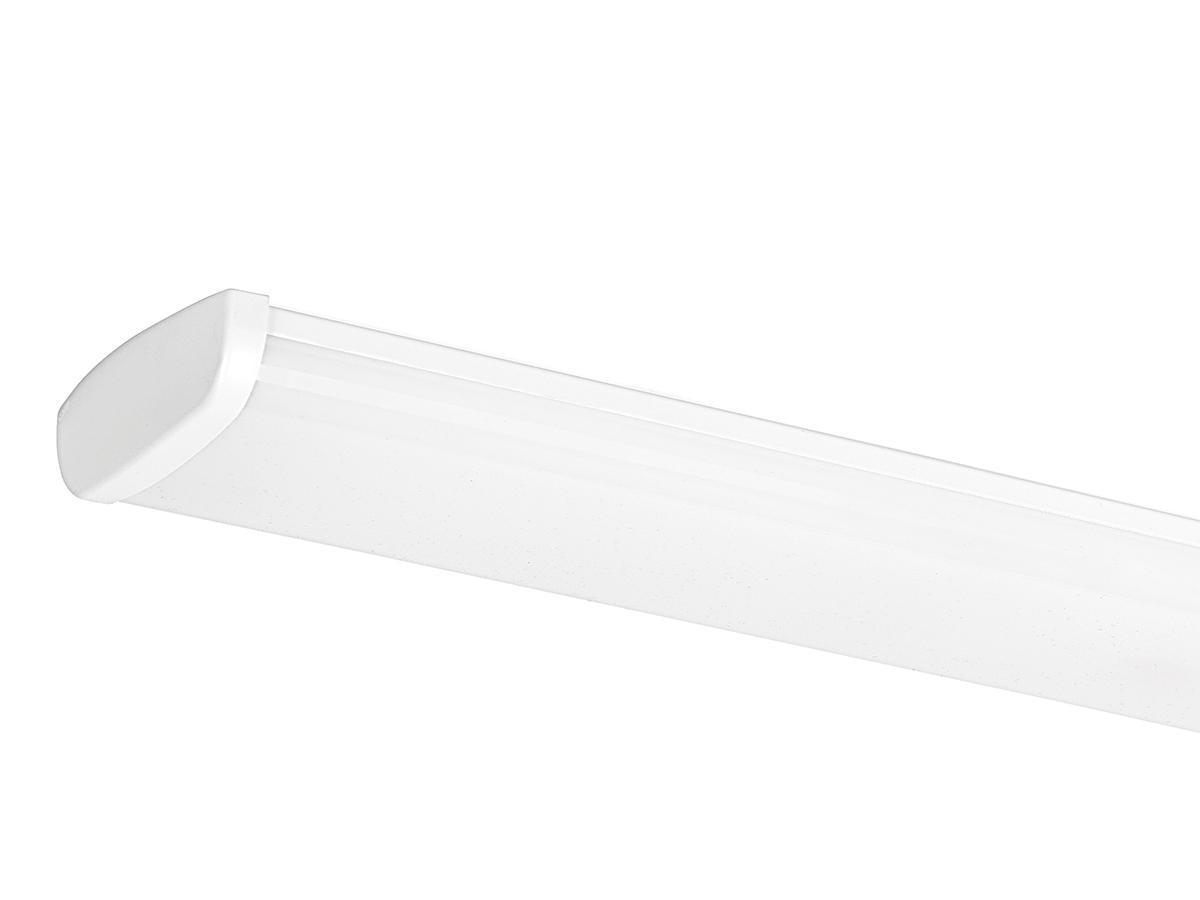

Interior luminaire Kajsa, Exaktor
KAJSA L1203 /830 2641/L1203 830
Article number: Suppl. article no:
7016772
2641/L1203 830
to see price and stock
The Kajsa luminaire provides a pleasant light that is ideally suited for general lighting. Luminaire for mounting thick ceiling against roof box. Kajsa is suitable in kitchens, storage rooms, entrances, public environments, corridors and other public spaces where a simple and light lighting solution is needed in IP20. Kajsa DIM is dimmable with Phase cut dimmer 10-100%, both front edge / leading edge and back edge / trailing edge.
- Article number: 7016772
- Suppl. article no: 2641/L1203 830
- Ean no: 7330139260284
- Material class QT024A
Technical data
- Packagin Size: 1 ST/52 ST
- Design: -
- Max. system power: 35 W
- Rated luminous flux according to IEC 62722-2- 1: 4300 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: No
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 1203 mm
- Width: 160 mm
- Height/depth: 46 mm
- With movement sensor: No
- Degree of protection (IP): IP20
- Impact strength: IK06
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 230 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-35 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Material cover: Plastic, opal
- Luminous flux adjustable: No
- Lamp type: LED exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Conductor cross section: 1.5 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Colour of light: White
- Luminaire efficacy: 123 lm/W
- Suitable for lamp power: 33.6 W
- Type of wiring: Ending
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 27
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 45
- IFTTT support available: No
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: None
- Suitable for wall mounting: No
- Connection type: Other
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.98
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2023-10-13
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
