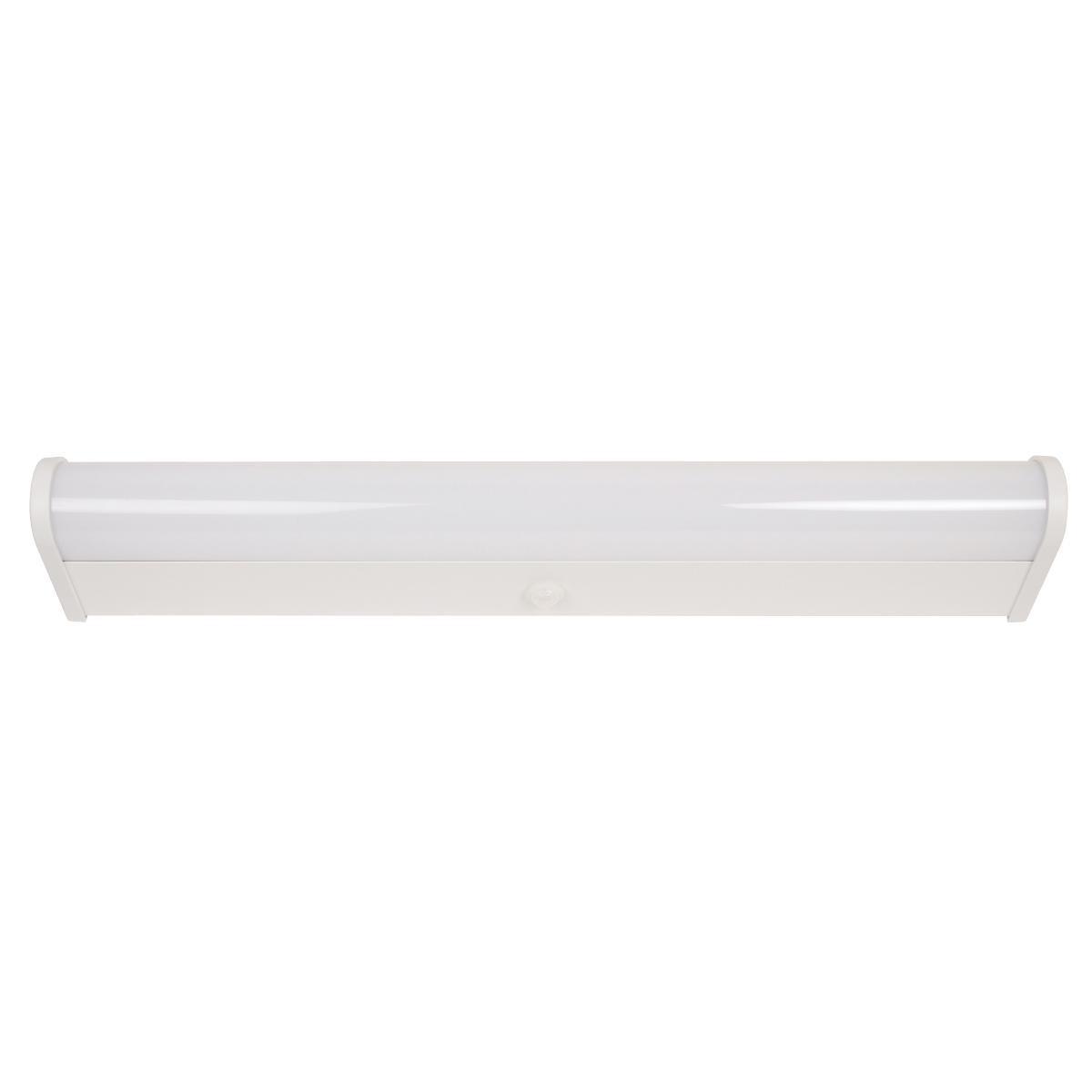

Bathroom luminaire Bagno Linear
BATHROOM LUM PIR 1420LM 3000K BAGNO LINEAR
Article number:
7507902
to see price and stock
Bathroom luminaire in classic design. Intended to be placed over bathroom mirrors. Interchangeable LED module and smooth installation with quick connectors and cable entry from behind or from above in the middle of the armrest. Also available with socket or PIR motion sensor.
- Article number: 7507902
- Ean no: 7333123104663
- Material class QT6800
- This is an alternative to item 7504697
Technical data
- Packagin Size: 1 ST/100 ST
- Design: PIR-sensor
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 1420 lm
- Colour temperature: 3000 K
- Housing colour: White
- Colour rendering index CRI: 90-100
- Length: 600 mm
- Width: 60 mm
- Height/depth: 112 mm
- Degree of protection (IP): IP44
- Impact strength: IK08
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, opal
- Rated life time L80/B10 at 25 °C: 50000 h
- Number of poles: 3
- Dimmable: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Protection class according to IEC 61140: I
- Housing material: Steel
- Conductor cross section: 1.5 mm²
- With movement sensor: Yes
- Nominal voltage: 220-240 V
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Surface protection housing: Powder coating
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2025-04-15
- REACH Information obligation: No
