Elko

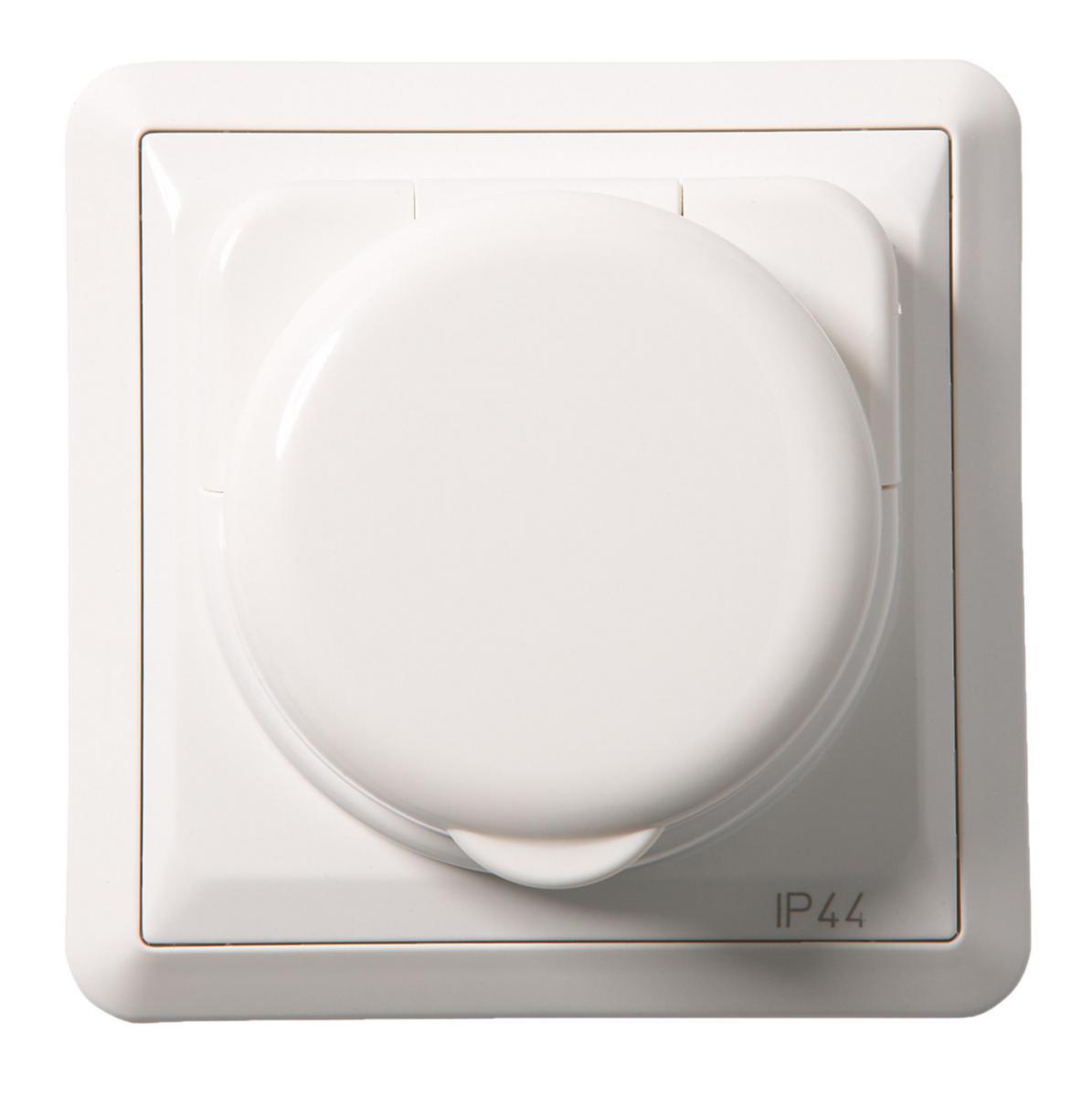

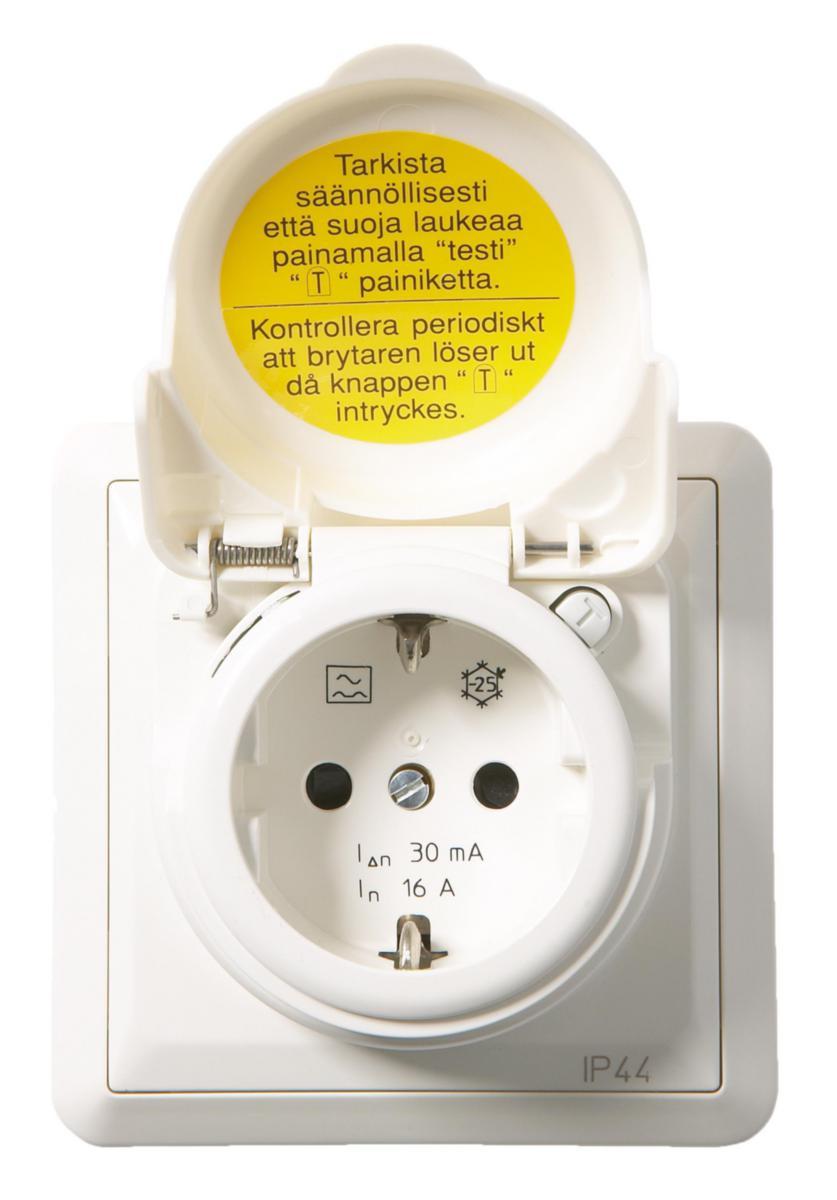

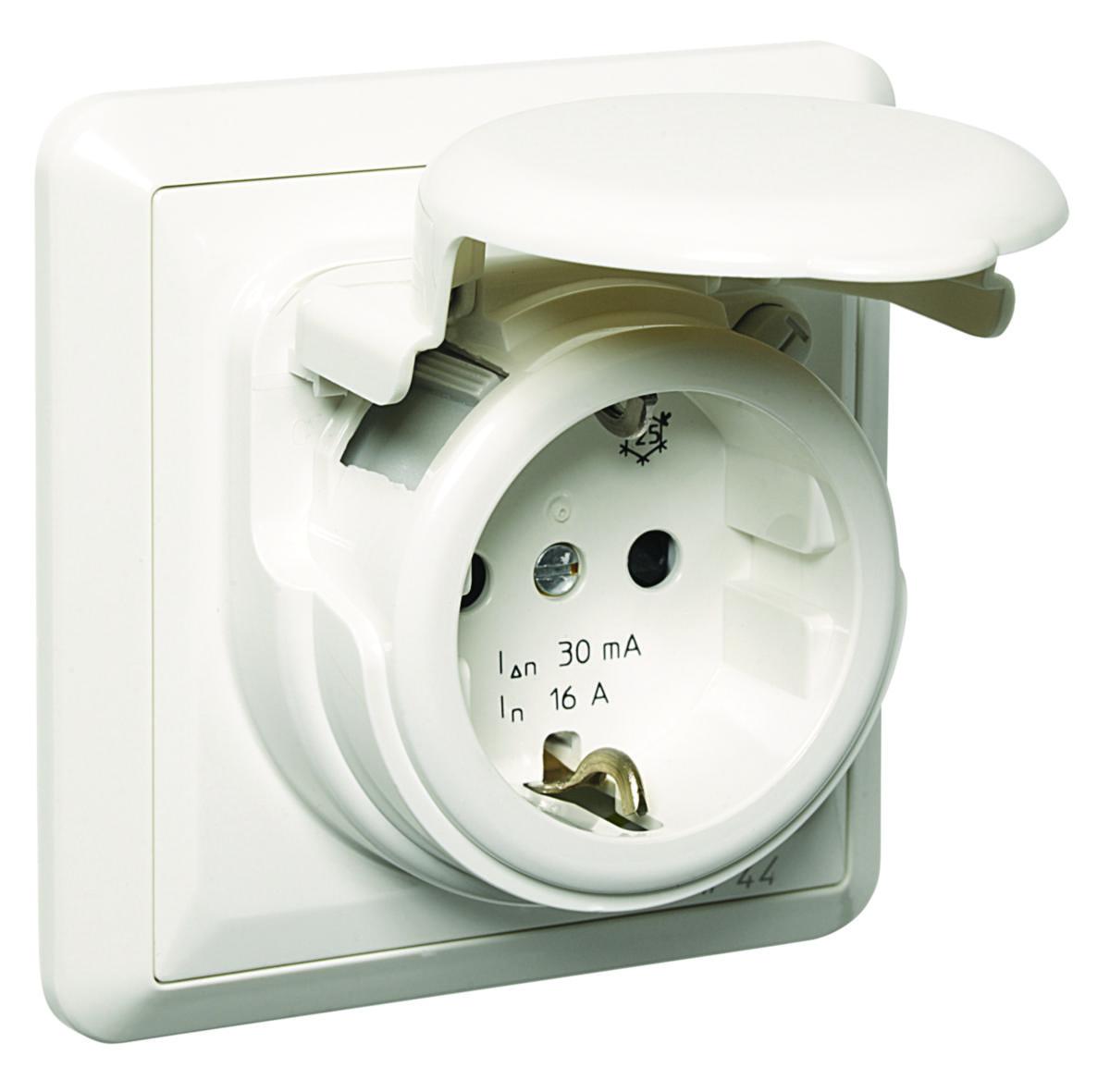

1-way socket with earth fault breaker, Elko
1-WAY OUTLET RCDS
Article number: Suppl. article no:
1898270
EKO01182
to see price and stock
1-way outlet with earth fault switch for mounting in device box with 60mm attachment screw spacing. 2-pole. Earth fault switch type A for alternating and pulsating DC currents. With forwarding from the outlet on the socket, the subsequent socket can be protected by the earth fault switch. Quick-release connector. For surface mounting use raising frame 18 890 71
- Article number: 1898270
- Suppl. article no: EKO01182
- Ean no: 7020160118202
- Material class QH929B
Technical data
- Packagin Size: 1 PCS/10 PCS/800 PCS
- Number of socket outlets: 1
- Fault current protection: Yes
- Overvoltage protection: No
- Colour: White
- Rated fault current: 30 mA
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Suitable for degree of protection (IP): IP44
- Imprint/indication: Other
- Type of fastening: Mounting with screw
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Lockable: No
- With on/off switch: Yes
- Device width: 85 mm
- Device height: 85 mm
- Device depth: 38 mm
- RAL-number (similar): 9010
- Mounting method: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Special power supply: No special power supply
- Frequency: 50 Hz
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Insulated mounting: No
- With loop through function: Yes
- Surface finishing: Glossy
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- Type: EKO01182
- REACH Information obligation: No
