Wall socket Protector SP with earth fault circuit breaker type A - PROTECTOR SP 30MA BLACK 480053
Norwesco

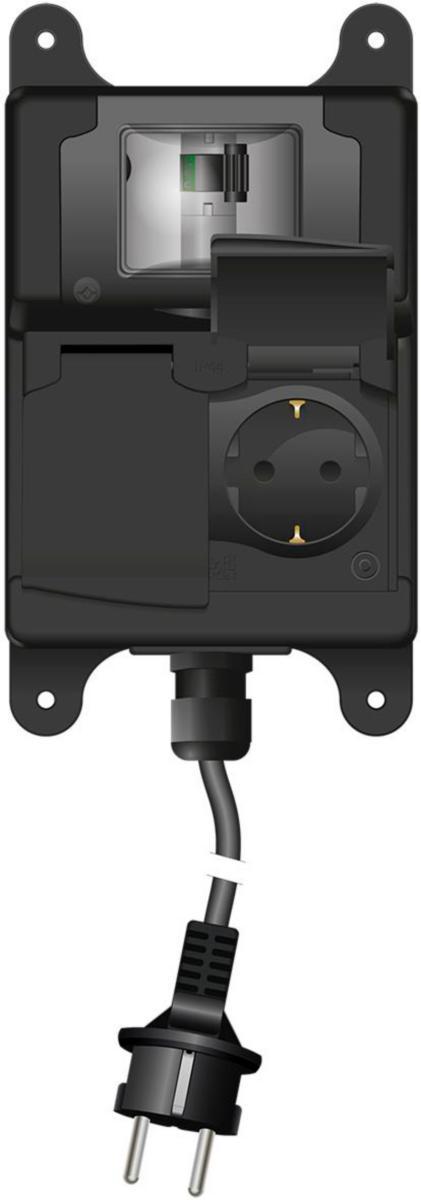

Wall socket Protector SP with earth fault circuit breaker type A

PROTECTOR SP 30MA BLACK 480053
Article number:
1860037
Suppl. article no:
480053





 to see price and stock
A combination of a 2-way earthed socket-protected socket 16A / 230V and a 2-pole earth-leakage circuit breaker with either 10 or 30mA rated fault current. The earth fault circuit breakers are of type A, ie they have increased surge current safety and react for alternating fault currents and pulsating direct current currents. The earth fault circuit breaker can withstand cooling down to -25 degrees. Mounted cord and plug 1.5m for connection in a standard wall socket. Protector SP has a mounting plate that facilitates mounting against a flat surface.
  • Article number:
    1860037
  • Suppl. article no:
    480053
  • Ean no:
    7394438800534
  • Material class
    QH929B
Technical data
  • Number of phases: 1
  • Fault current protection: TRUE
  • Overvoltage protection: FALSE
  • Colour: Black
  • Rated fault current: 30 mA
  • Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Suitable for degree of protection (IP): IP44
  • With hinged lid: TRUE
  • Rotated central insert: FALSE
  • With function lighting: FALSE
  • Lockable: FALSE
  • Device width: 111 mm
  • Device height: 220 mm
  • Device depth: 95 mm
  • Mounting method: Surface mounted
  • Material: Plastic
  • Material quality: Thermoplastic
  • With orientation lighting: FALSE
  • Halogen free: TRUE
  • Nominal current: 16 A
  • Nominal voltage: 230 V
  • Frequency: 50 Hz
  • With miniature fuse: FALSE
  • With enhanced contact protection: TRUE
  • Transparent: FALSE
  • Eject-mechanism: FALSE
  • Surface protection: Other
  • Label space/information surface: FALSE
  • Surface finishing: Matt
  • Protective earth pin round: TRUE
  • Protective contact: TRUE
