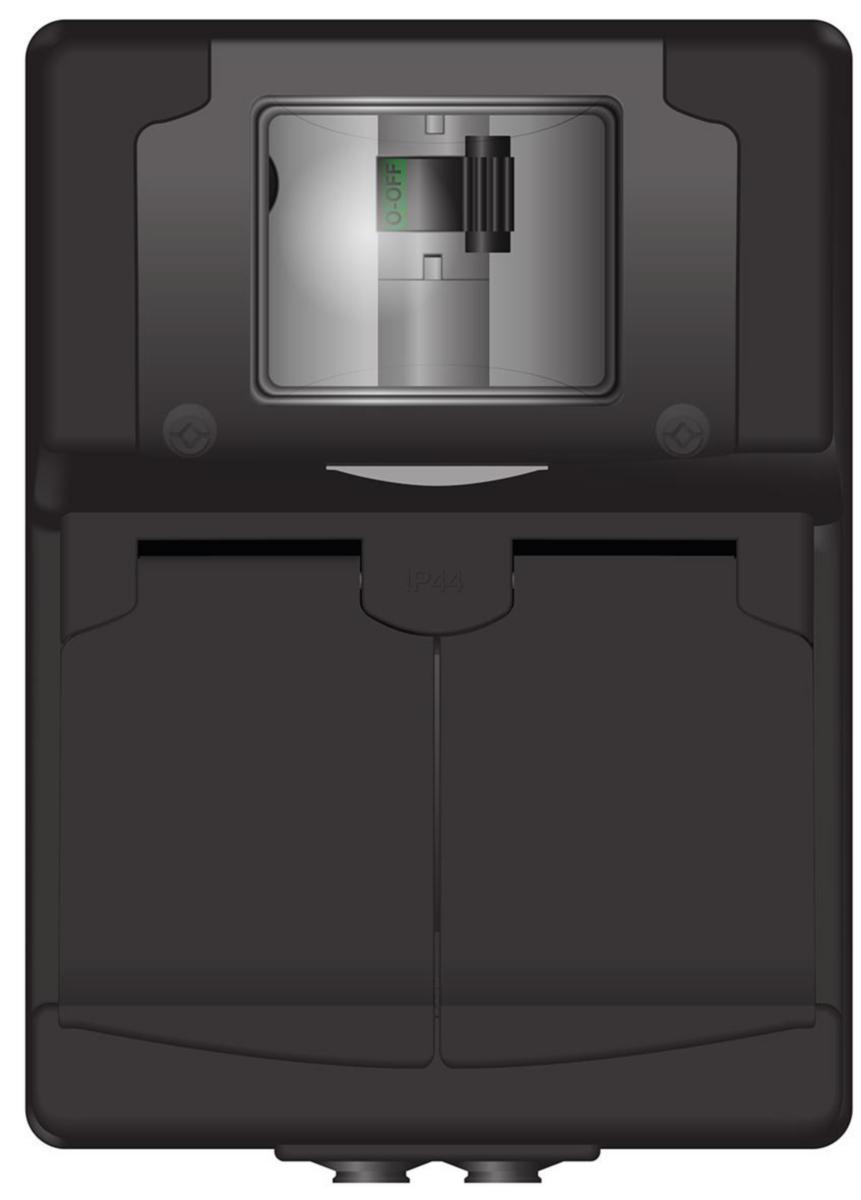

Earth fault breaker socket Protector II, Norwesco
PROTECTOR II BLACK0MA 470055
Article number: Suppl. article no:
1860014
470055
to see price and stock
Protector 2 IP 44 a combination of a 2-way earthed and child-protected outlet 16A / 230 V and a 2-pole earth fault breaker. The earth fault breaker is visible from the front, which enables you to clearly see if it has been triggered, and makes it easier to exercise the earth fault breaker, which should be done once a month. Protector 2 also has cable entry from the bottom.
- Article number: 1860014
- Suppl. article no: 470055
- Ean no: 7394438700551
- Material class QH929B
Technical data
- Number of socket outlets: 2
- Number of phases: 1
- Fault current protection: TRUE
- Overvoltage protection: FALSE
- Colour: Black
- Rated fault current: 30 mA
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Suitable for degree of protection (IP): IP44
- Type of fastening: Mounting with screw
- With hinged lid: TRUE
- Rotated central insert: FALSE
- With function lighting: FALSE
- Lockable: FALSE
- Device width: 111 mm
- Device height: 156 mm
- Device depth: 90 mm
- RAL-number (similar): 9005
- Mounting method: Surface mounted
- Material: Plastic
- Material quality: Thermoplastic
- With orientation lighting: FALSE
- Halogen free: TRUE
- Nominal current: 16 A
- Nominal voltage: 230 V
- Frequency: 50 Hz
- With miniature fuse: FALSE
- With enhanced contact protection: TRUE
- Transparent: FALSE
- Eject-mechanism: FALSE
- Surface protection: Other
- Label space/information surface: FALSE
- Surface finishing: Matt
- Connection type: Screwed terminal
- Protective earth pin round: TRUE
- Protective contact: TRUE
