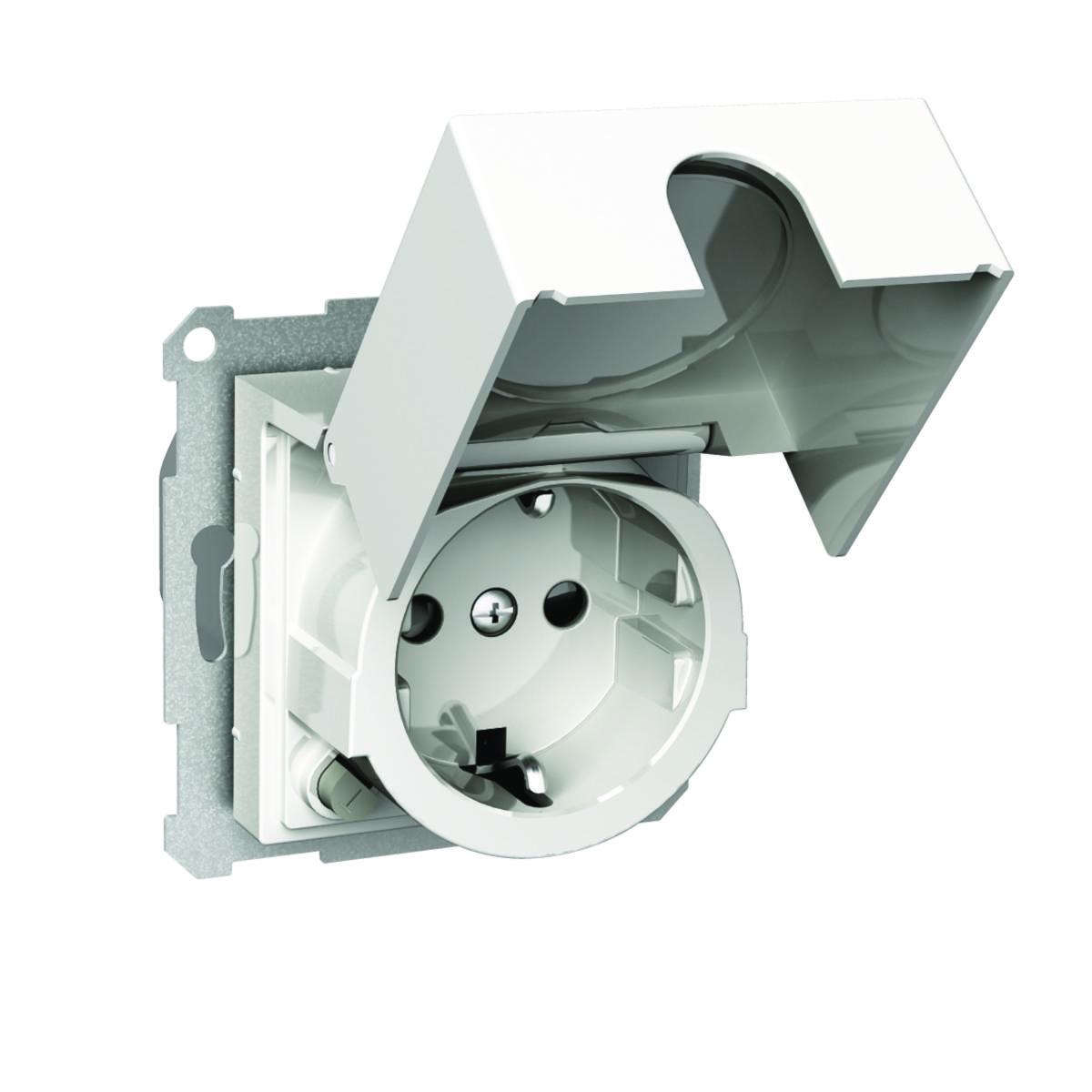

Wall socket 1-way with ground fault breaker grounded - EXXACT SSO RCD SCREWLESS WHITE 1 K
Schneider Electric

Wall socket 1-way with ground fault breaker grounded

EXXACT SSO RCD SCREWLESS WHITE 1 K
Article number:
1820264
Suppl. article no:
WDE002324
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Exxact 1-way socket IP44 earth fault breakers, incl. OFF/ON and test buttons. Earthed, quick connection, tamper-protected for recessed mounting in a junction box c/c 60mm. For surface mounting box 35mm is used. Supplemented by optional Exxact frame
  • Article number:
    1820264
  • Suppl. article no:
    WDE002324
  • Ean no:
    3606480203510
  • Replaces art.nbr:
    1898245
  • Material class
    QH9290
Technical data
  • Packagin Size: 1 ST/30 ST
  • Product series: Exxact
  • Number of socket outlets: 1
  • Number of phases: 1
  • Fault current protection: Yes
  • Overvoltage protection: No
  • Colour: White
  • Rated fault current: 30 mA
  • Model: Other
  • Suitable for degree of protection (IP): IP20
  • Imprint/indication: Other
  • Type of fastening: Mounting with screw
  • With hinged lid: Yes
  • With signal lamp: No
  • Rotated central insert: No
  • With function lighting: No
  • Lockable: No
  • With on/off switch: No
  • Device width: 71 mm
  • Device height: 71 mm
  • Device depth: 69 mm
  • Number of modules (module system): 0
  • Min. depth of built-in installation box: 32 mm
  • RAL-number (similar): 9003
  • Mounting method: Flush-mounted
  • Material: Plastic
  • Material quality: Thermoplastic
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Special power supply: No special power supply
  • Frequency: 50 Hz
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Transparent: No
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • Insulated mounting: No
  • With loop through function: Yes
  • Surface finishing: Glossy
  • Number of active contacts (round): 2
  • Metallic colour: No
  • Anti-bacterial treatment: No
  • Connection type: Push-in clamp
  • For heavy conditions according to VDE: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • Number of active contacts (flat): 0
  • REACH Date: 2022-07-20
  • Type: WDE002324
  • REACH Information obligation: No
