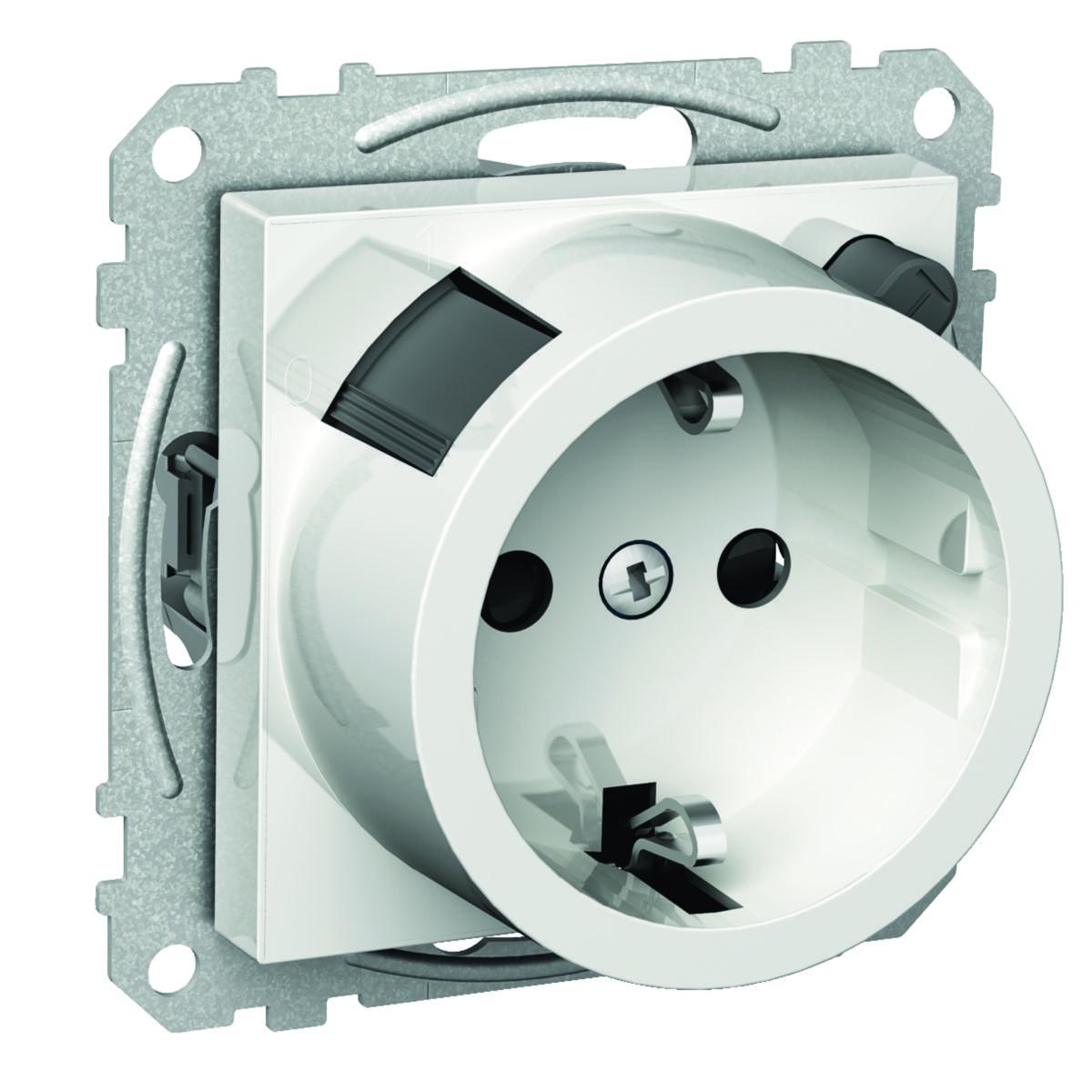

Earth fault breaker/wall socket for recessed installation - WALL SOCKET+ICP W JFB WH EXXACT
Schneider Electric

Earth fault breaker/wall socket for recessed installation

WALL SOCKET+ICP W JFB WH EXXACT
Article number:
1820262
Suppl. article no:
WDE002323
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Earth fault breaker for recessed IP20 mounting 16A, type A, 30 mA. Reset with a button on the front. For recessed mounting in device case, 60mm c/c, for surface mounting using box 35mm. Supplemented by optional Exxact frame.
  • Article number:
    1820262
  • Suppl. article no:
    WDE002323
  • Ean no:
    3606480203497
  • Material class
    QH1700
Technical data
  • Packagin Size: 1 ST/10 ST/20 ST
  • Product series: Exxact
  • Number of socket outlets: 1
  • Number of phases: 1
  • Fault current protection: TRUE
  • Overvoltage protection: FALSE
  • Colour: White
  • Rated fault current: 30 mA
  • Model: Other
  • Suitable for degree of protection (IP): IP20
  • Type of fastening: Mounting with screw
  • With hinged lid: FALSE
  • With signal lamp: FALSE
  • Rotated central insert: FALSE
  • With function lighting: FALSE
  • Lockable: FALSE
  • With on/off switch: FALSE
  • Device width: 71 mm
  • Device height: 71 mm
  • Device depth: 67 mm
  • Number of modules (module system): 0
  • Min. depth of built-in installation box: 32 mm
  • RAL-number (similar): 9003
  • Mounting method: Flush-mounted
  • Material: Plastic
  • Material quality: Thermoplastic
  • With orientation lighting: FALSE
  • Halogen free: TRUE
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Special power supply: No special power supply
  • Frequency: 50 Hz
  • With miniature fuse: FALSE
  • With enhanced contact protection: TRUE
  • Transparent: FALSE
  • Eject-mechanism: FALSE
  • Surface protection: Untreated
  • Label space/information surface: FALSE
  • Insulated mounting: FALSE
  • With loop through function: TRUE
  • Surface finishing: Glossy
  • Number of active contacts (round): 2
  • Metallic colour: FALSE
  • Anti-bacterial treatment: FALSE
  • Connection type: Push-in clamp
  • For heavy conditions according to VDE: FALSE
  • Compatible with Amazon Alexa: FALSE
  • Compatible with Apple HomeKit: FALSE
  • Compatible with Google Assistant: FALSE
  • IFTTT support available: FALSE
  • Number of active contacts (flat): 0
  • REACH Date: 2022-07-20
  • Type: WDE002323
  • REACH Information obligation: No
