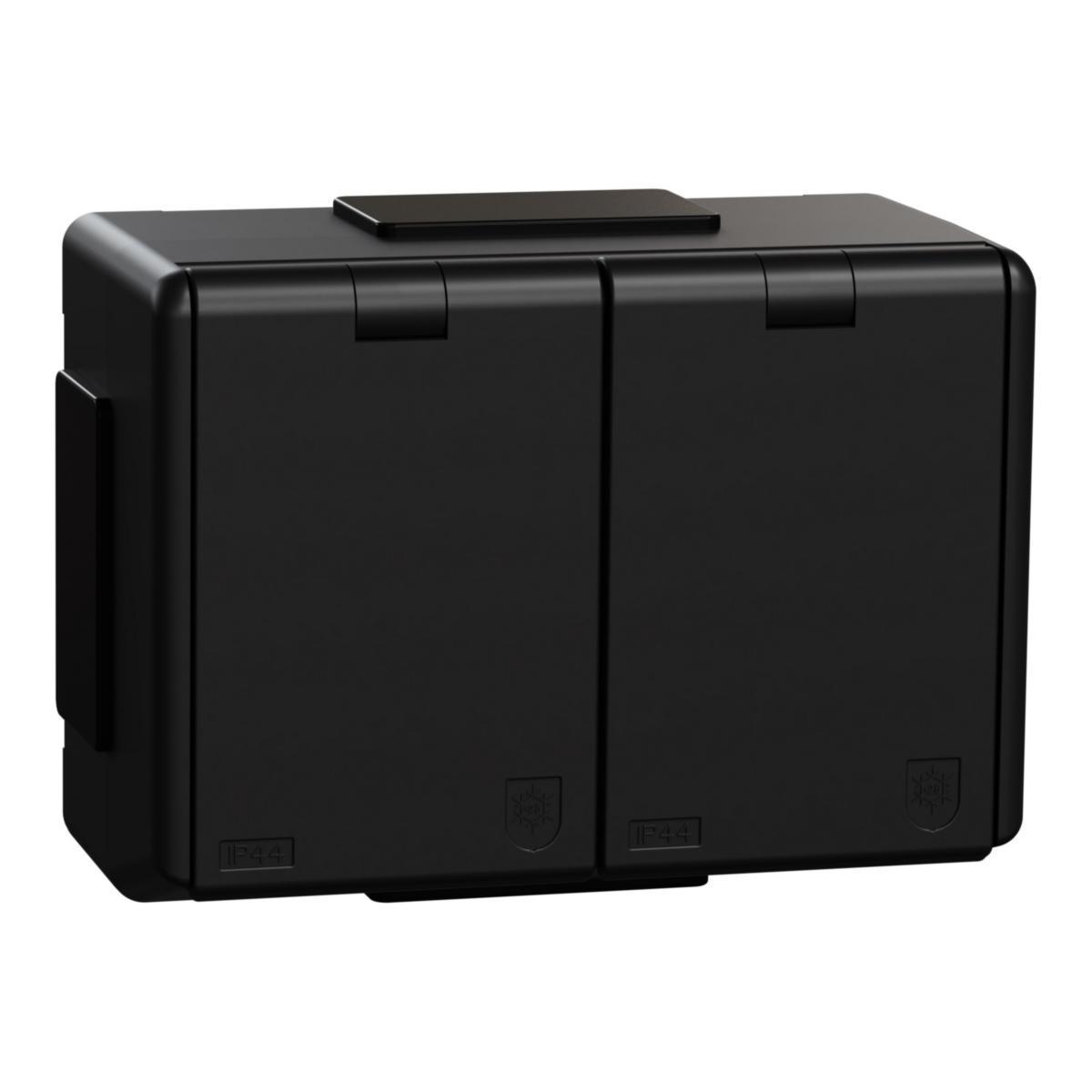

Wall outlet external black RS - 1090 UPT SOCKET OUTLET WT BL
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/15/ProductImage45369415.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/16/ProductImage45369416.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/17/ProductImage45369417.jpg
Elko

Wall outlet external black RS

1090 UPT SOCKET OUTLET WT BL
Article number:
1889704
Suppl. article no:
EKO40028
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
With a self-closing lid, it must be mounted so that the lid opens at the bottom. Double connections per phase. Place for 3 extra jumper clamps (E18 417 34) for bus conductors etc. Equipped with membrane nipples. Made of halogen-free thermoplastic. Oval mounting holes for easier mounting.
  • Article number:
    1889704
  • Suppl. article no:
    EKO40028
  • Ean no:
    7020160400284
  • Material class
    QH3601
Technical data
  • Packagin Size: 1 PCS/5 PCS/50 PCS/1400 PCS
  • Product series: RS
  • Number of socket outlets: 2
  • Colour: Black
  • RAL-number (similar): 9005
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Protective contact: Earthing clips
  • Number of phases: 1
  • Connection type: Screwed terminal
  • Surface finishing: Matt
  • Lockable: No
  • Device height: 75 mm
  • Device width: 100 mm
  • Device depth: 50 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP44
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Lacquered
  • Label space/information surface: No
  • Impact strength: IK02
  • With loop through function: No
  • Insulated mounting: No
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • With Wi-Fi signal repeater: No
  • With built-in bluetooth speaker: No
  • Concurrently switching neutral conductor: No
  • Number of active contacts (round): 4
  • Number of loop throughs: 2
  • Transparent: No
  • Compliant with UK Building Regulations Part M: No
  • Socket outlets phase-separated: No
  • REACH Date: 2023-12-31
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
  • Metallic colour: No
  • Assembly arrangement: Basic element with central cover plate
