Elko

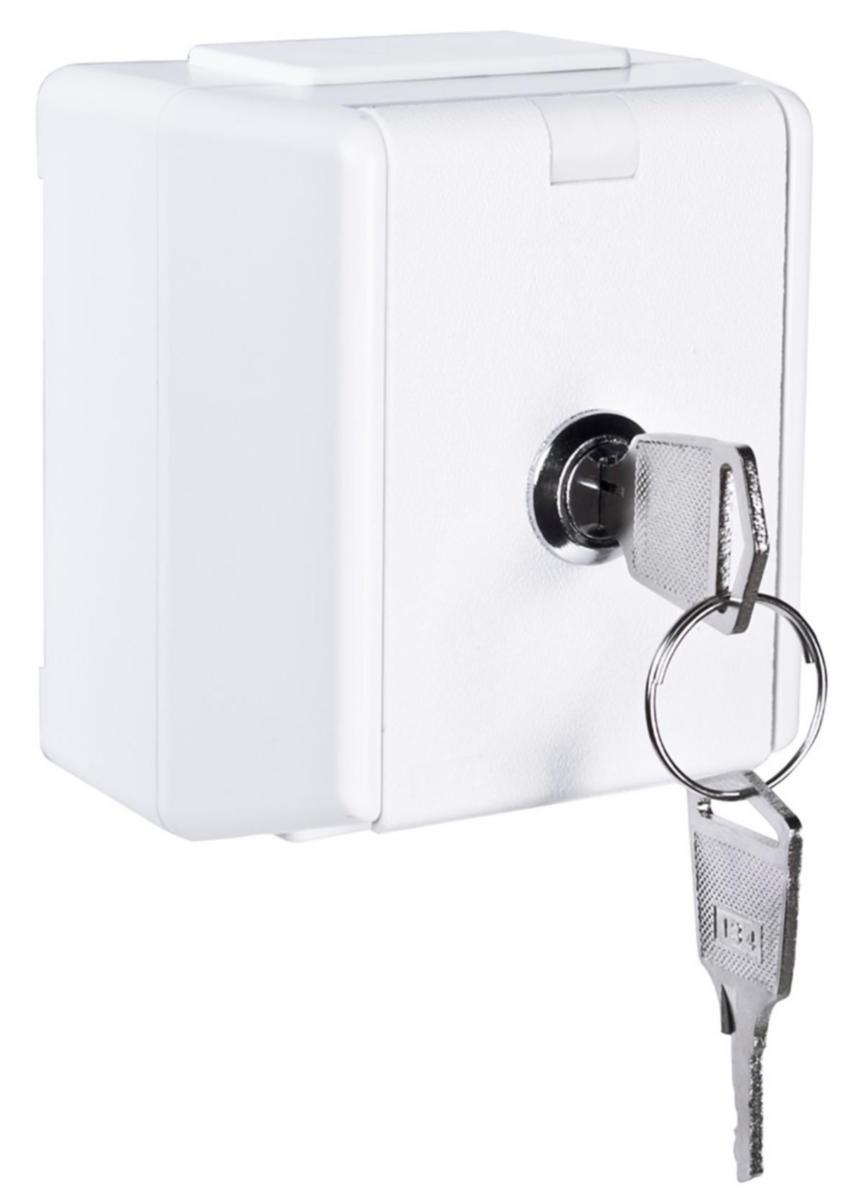

Wall socket 1-way surface-mounted IP44
1054 UPT W/LOCK SOCKET WT PW EKO07476
Article number: Suppl. article no:
1885703
EKO07476
to see price and stock
Made of halogen-free thermoplastic. With self-closing lid. Screw connection for connectors. Dual connections per phase. In the outlet, there is space for an extra switching clamp for e.g. certain bi-conductors. Equipped with membrane nipples
- Article number: 1885703
- Suppl. article no: EKO07476
- Ean no: 7020160747600
- Material class QH3600
Technical data
- Packagin Size: 1 PCS/5 PCS
- Model: Other
- Number of socket outlets: 1
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Mounting method: Surface mounted
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Lockable: Yes
- Device height: 75 mm
- Device width: 68 mm
- Device depth: 50 mm
- Surface finishing: Glossy
- With hinged lid: Yes
- With function lighting: No
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- With built-in USB power supply: No
- REACH Date: 2024-07-31
- REACH contains candidate substances: Bly
- RAL-number: 9003
- Number of poles: 2
- Degree of protection (IP): IP44
- REACH Information obligation: Yes
- Connection system: Screwed terminal
- Flange size: Other
- Insert direction: Straight
