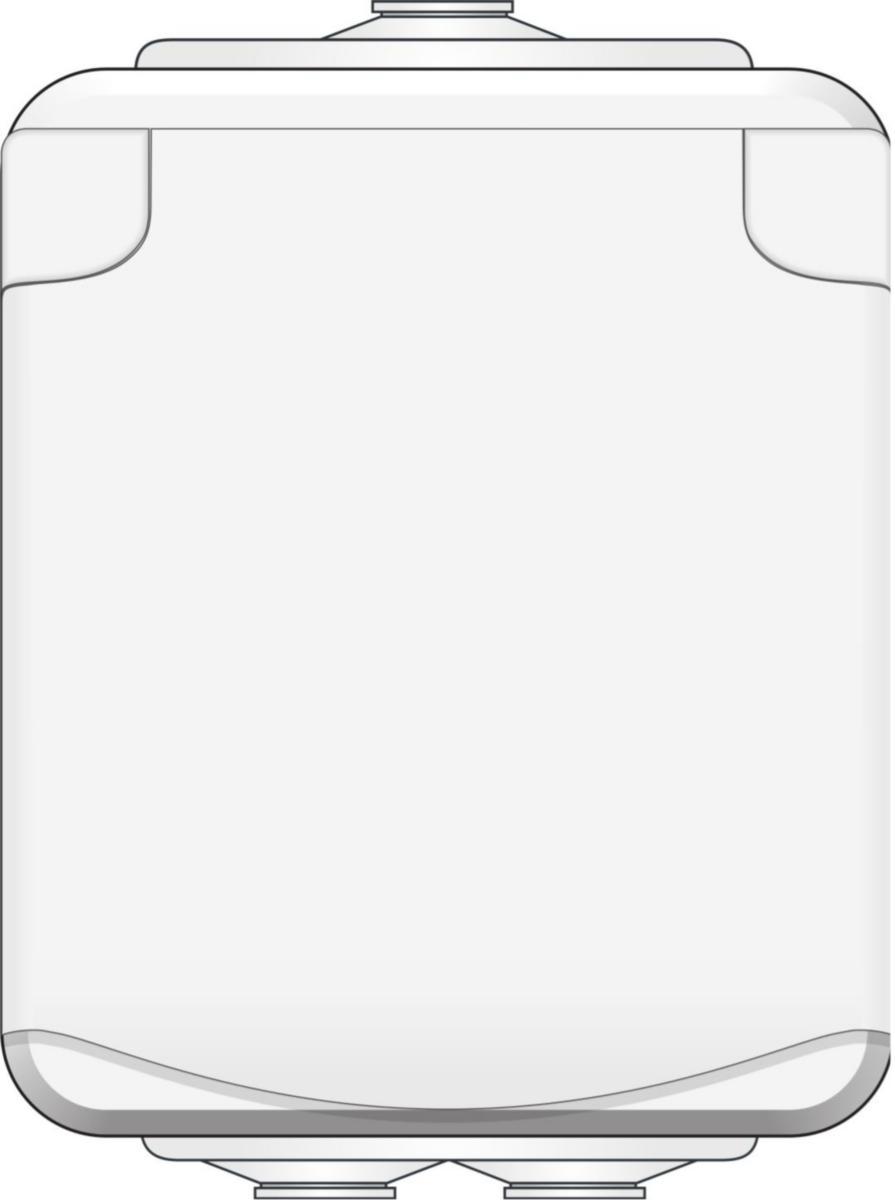

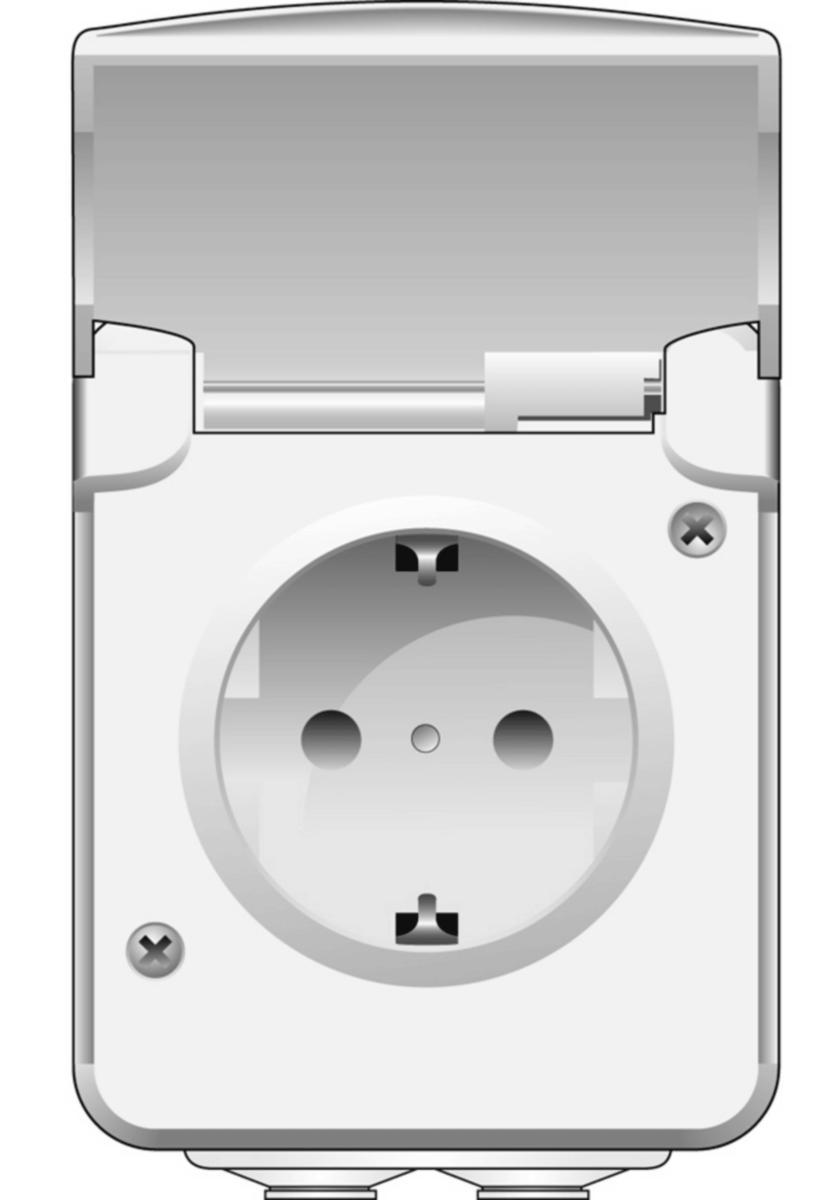

Wall socket AquaBest white fire classed IP44, Norwesco - SOCKET 1-WAY WITH IP44 UTP.
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/83/85/ProductImage35528385.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/70/85/ProductImage77087085.jpg
Norwesco

Wall socket AquaBest white fire classed IP44, Norwesco

SOCKET 1-WAY WITH IP44 UTP.
Article number:
1861701
Suppl. article no:
460002
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Encapsulated white wall sockets for surface mounting in impact-resistant halogen-free thermoplastic in a modern dirt-repellent design in protection class IP44 are designed to blend in with facades painted in Fala red. The wall sockets are made of self-extinguishing material and meet the requirements of the standard UL 94-V0 for Agriculture
  • Article number:
    1861701
  • Suppl. article no:
    460002
  • Ean no:
    7394438600028
  • Material class
    QH879B
Technical data
  • Packagin Size: 1 ST/5 ST/300 ST/2400 ST
  • Type: 1-way
  • Product series: AquaBest
  • Number of socket outlets: 1
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9010
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Protective contact: Earthing clips
  • Number of phases: 1
  • Connection type: Screwed terminal
  • Surface finishing: Matt
  • Lockable: FALSE
  • Device height: 74 mm
  • Device width: 61 mm
  • Device depth: 48 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: Degree of protection (IP)
  • With hinged lid: TRUE
  • Rotated central insert: FALSE
  • With function lighting: FALSE
  • Mounting method: Surface mounted
  • Overvoltage protection: FALSE
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: FALSE
  • With orientation lighting: FALSE
  • Halogen free: TRUE
  • Nominal current: 16 A
  • Nominal voltage: 230 V
  • Suitable for degree of protection (IP): IP44
  • Special power supply: No special power supply
  • Fault current protection: FALSE
  • Frequency: 50 Hz
  • For heavy conditions according to VDE: FALSE
  • With miniature fuse: FALSE
  • With enhanced contact protection: TRUE
  • Eject-mechanism: FALSE
  • Surface protection: Other
  • Label space/information surface: FALSE
  • With loop through function: TRUE
  • Insulated mounting: TRUE
  • Anti-bacterial treatment: FALSE
  • With signal lamp: FALSE
  • Compatible with Amazon Alexa: FALSE
  • Compatible with Apple HomeKit: FALSE
  • Compatible with Google Assistant: FALSE
  • IFTTT support available: FALSE
  • With built-in USB power supply: FALSE
  • Concurrently switching neutral conductor: TRUE
  • Number of active contacts (flat): 0
  • Number of active contacts (round): 1
  • Number of modules (module system): 0
  • Transparent: FALSE
  • REACH Date: 2025-02-17
  • REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
  • Protective earth pin round: FALSE
  • Protective contact: FALSE
  • REACH Information obligation: Yes
  • Metallic colour: FALSE
