Wall socket AquaBest Falured IP44, Norwesco - WEATHERPROOF SCHUKO OUTLET 460010
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/28/23/ProductImage38272823.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/78/53/ProductImage77087853.jpg
Norwesco

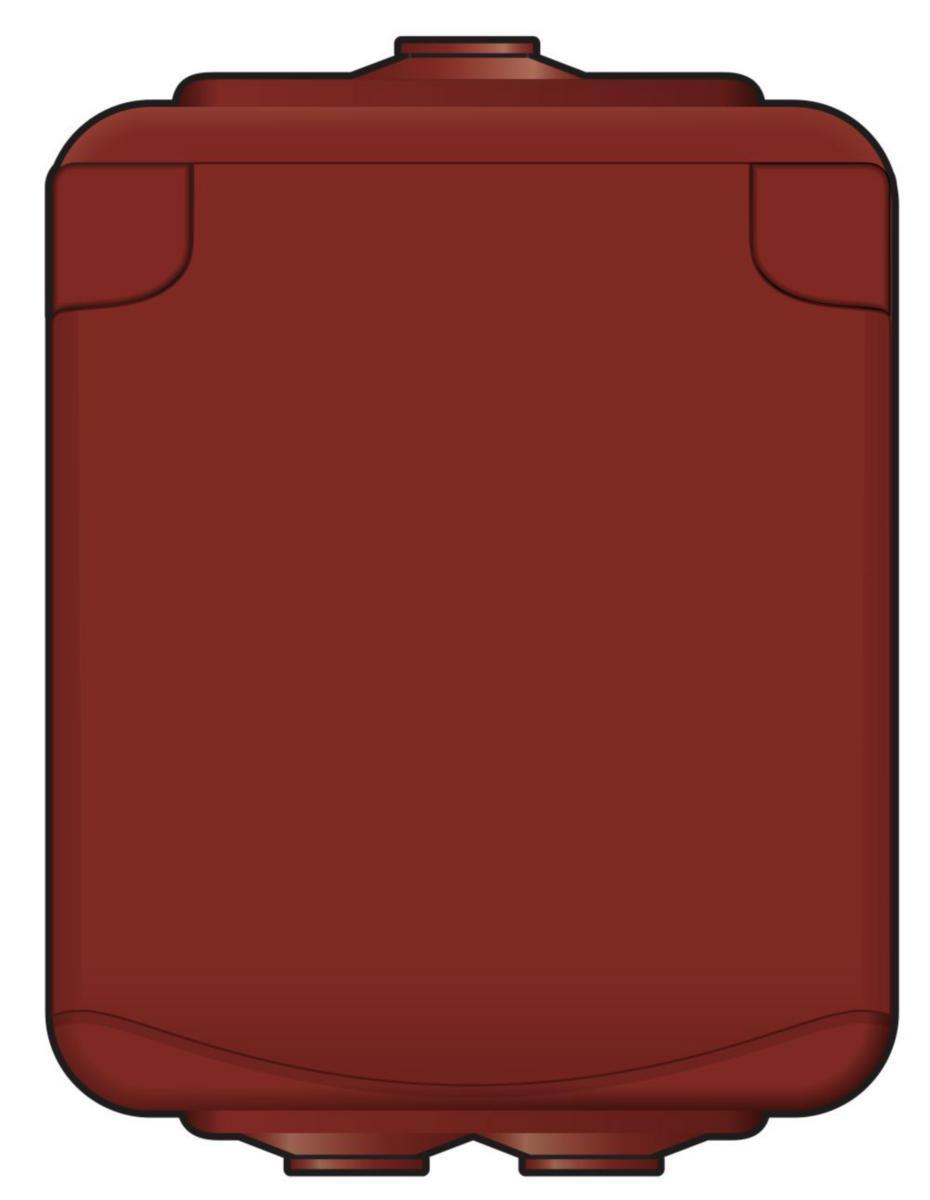

Wall socket AquaBest Falured IP44, Norwesco

WEATHERPROOF SCHUKO OUTLET 460010
Article number:
1860015
Suppl. article no:
460010
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Encapsulated Falured wall sockets for surface mounting in impact-resistant halogen-free thermoplastic in a modern dirt-repellent design in protection class IP44 are designed to blend in with facades painted in Fala red. The wall sockets are made of self-extinguishing material and meet the requirements of the standard UL 94-V0 for Agriculture
  • Article number:
    1860015
  • Suppl. article no:
    460010
  • Ean no:
    7394438600103
  • Material class
    QH879B
Technical data
  • Packagin Size: 1 PCS/5 PCS/300 PCS/2400 PCS
  • Product series: AquaBest
  • Number of socket outlets: 1
  • Colour: Red
  • RAL-number (similar): 3009
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Protective contact: Earthing clips
  • Number of phases: 1
  • Connection type: Screwed terminal
  • Surface finishing: Matt
  • Lockable: FALSE
  • Device height: 74 mm
  • Device width: 61 mm
  • Device depth: 48 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: Degree of protection (IP)
  • With hinged lid: TRUE
  • Rotated central insert: FALSE
  • With function lighting: FALSE
  • Mounting method: Surface mounted
  • Overvoltage protection: FALSE
  • Material: Plastic
  • Material quality: Thermoplastic
  • With orientation lighting: FALSE
  • Halogen free: TRUE
  • Nominal current: 16 A
  • Nominal voltage: 230 V
  • Suitable for degree of protection (IP): IP44
  • Fault current protection: FALSE
  • Frequency: 50 Hz
  • With enhanced contact protection: TRUE
  • Eject-mechanism: FALSE
  • Surface protection: Other
  • Label space/information surface: FALSE
  • With loop through function: TRUE
  • Insulated mounting: TRUE
  • With signal lamp: FALSE
  • With built-in USB power supply: FALSE
  • Concurrently switching neutral conductor: TRUE
  • Number of active contacts (round): 1
  • Transparent: FALSE
  • REACH Date: 2025-02-17
  • REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
  • REACH Information obligation: Yes
