Elko

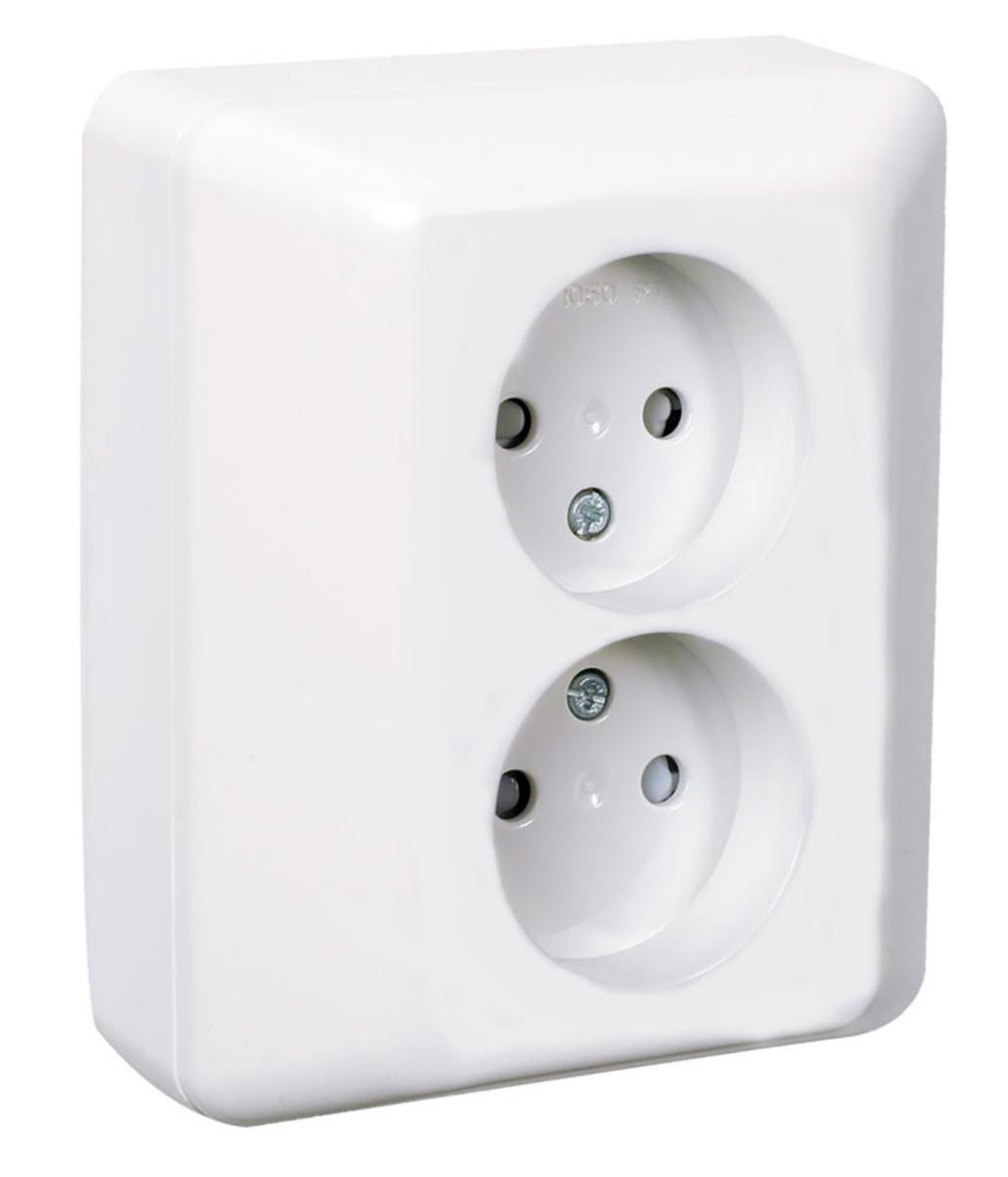

Wall socket Elko-Rot with raising frame
RS1051 2-WAY OUTLET ROOT PW EKO07564
Article number: Suppl. article no:
1849270
EKO07564
to see price and stock
Wall socket with screw connection complete with elevation frame, can be mounted on box or directly in wall. Possibility to continue with the cable exists. Made of halogen-free thermoplastic.
- Article number: 1849270
- Suppl. article no: EKO07564
- Ean no: 7020160756404
- Material class QH3400
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: RS
- Model: CEE 7/1 unearthed
- Number of socket outlets: 2
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 84 mm
- Device width: 84 mm
- Device depth: 44 mm
- Lockable: No
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- With built-in USB power supply: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
