Elko

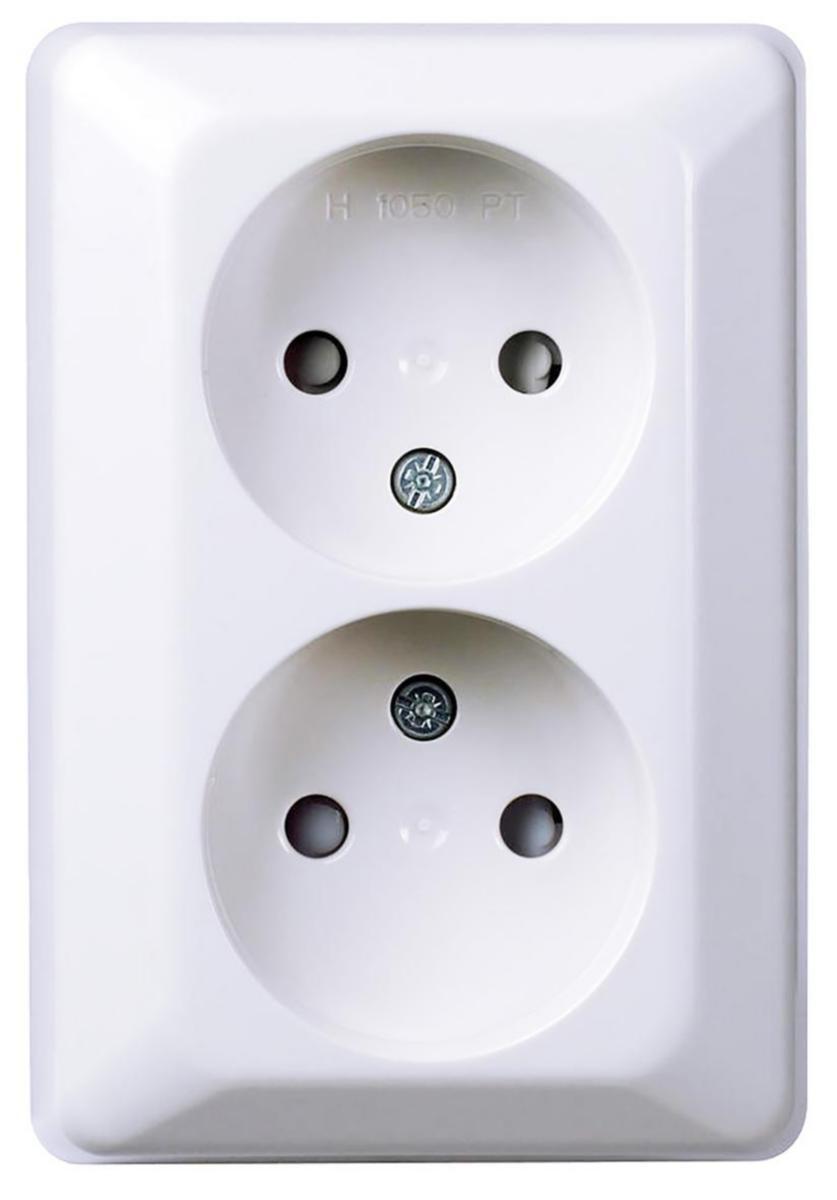

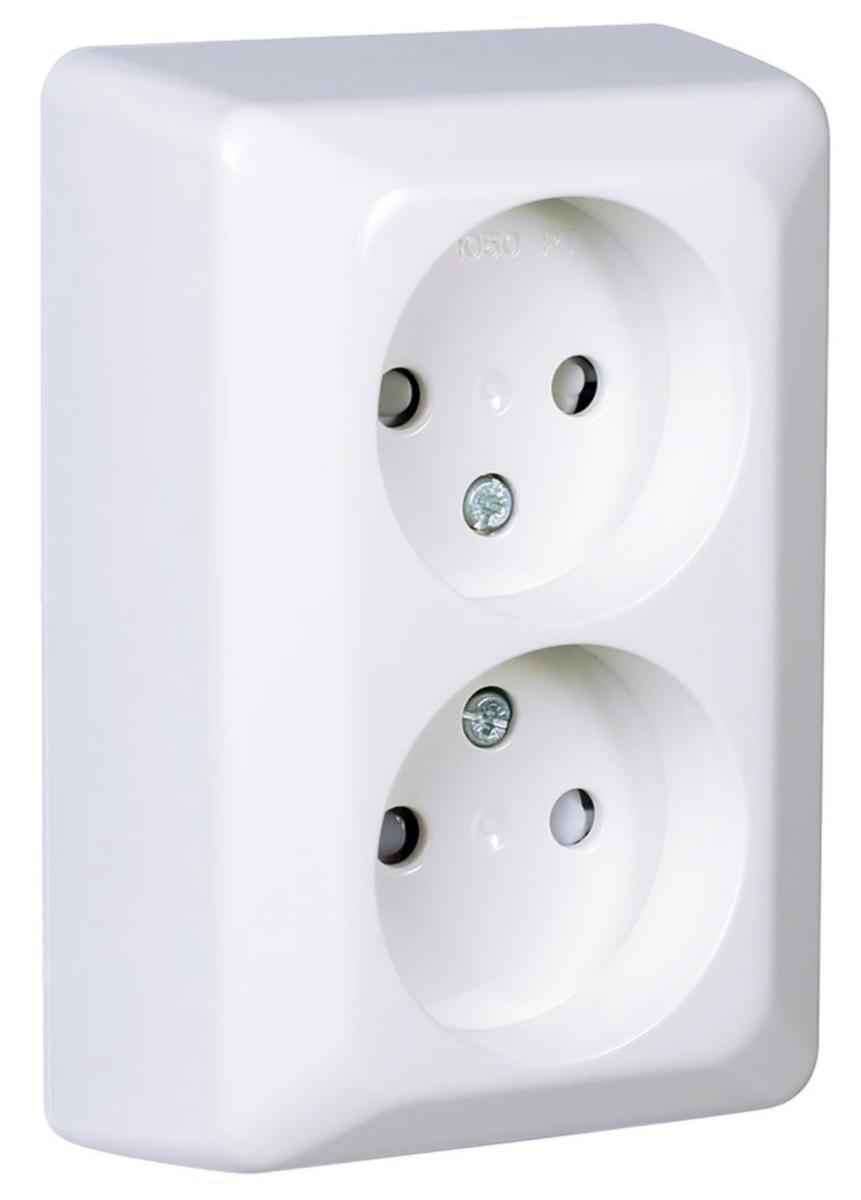

Elko-Qvick wall socket without ground for surface mounting
H1050 PT SOCKET OUTLET PW EKO07496
Article number: Suppl. article no:
1841974
EKO07496
to see price and stock
2-way outlet 16A 250V with screw connection or quick connection, ungrounded IP21
- Article number: 1841974
- Suppl. article no: EKO07496
- Ean no: 7020160749604
- Material class QH3400
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: Qvick
- Number of socket outlets: 2
- Colour: White
- RAL-number (similar): 9003
- Model: CEE 7/1 unearthed
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Lockable: No
- Device height: 104 mm
- Device width: 71 mm
- Device depth: 41 mm
- Type of fastening: Mounting with screw
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP21
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- With built-in USB power supply: No
- Transparent: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
