Wall socket 4-way socket 16A - 1044 PT SOCKET OUTLET PW EKO05446
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/03/23/ProductImage36360323.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/53/69/ProductImage72695369.jpg
Elko

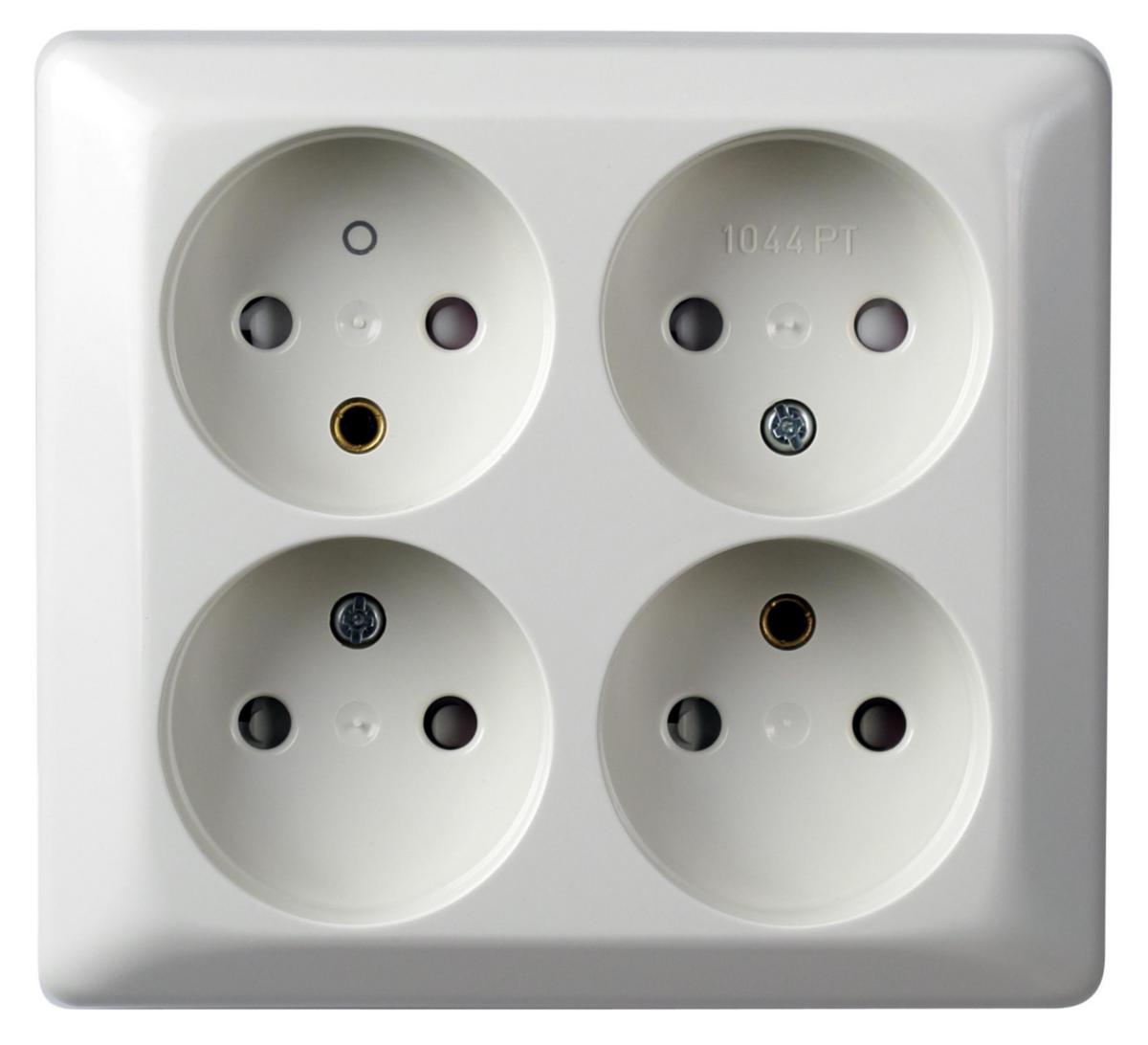

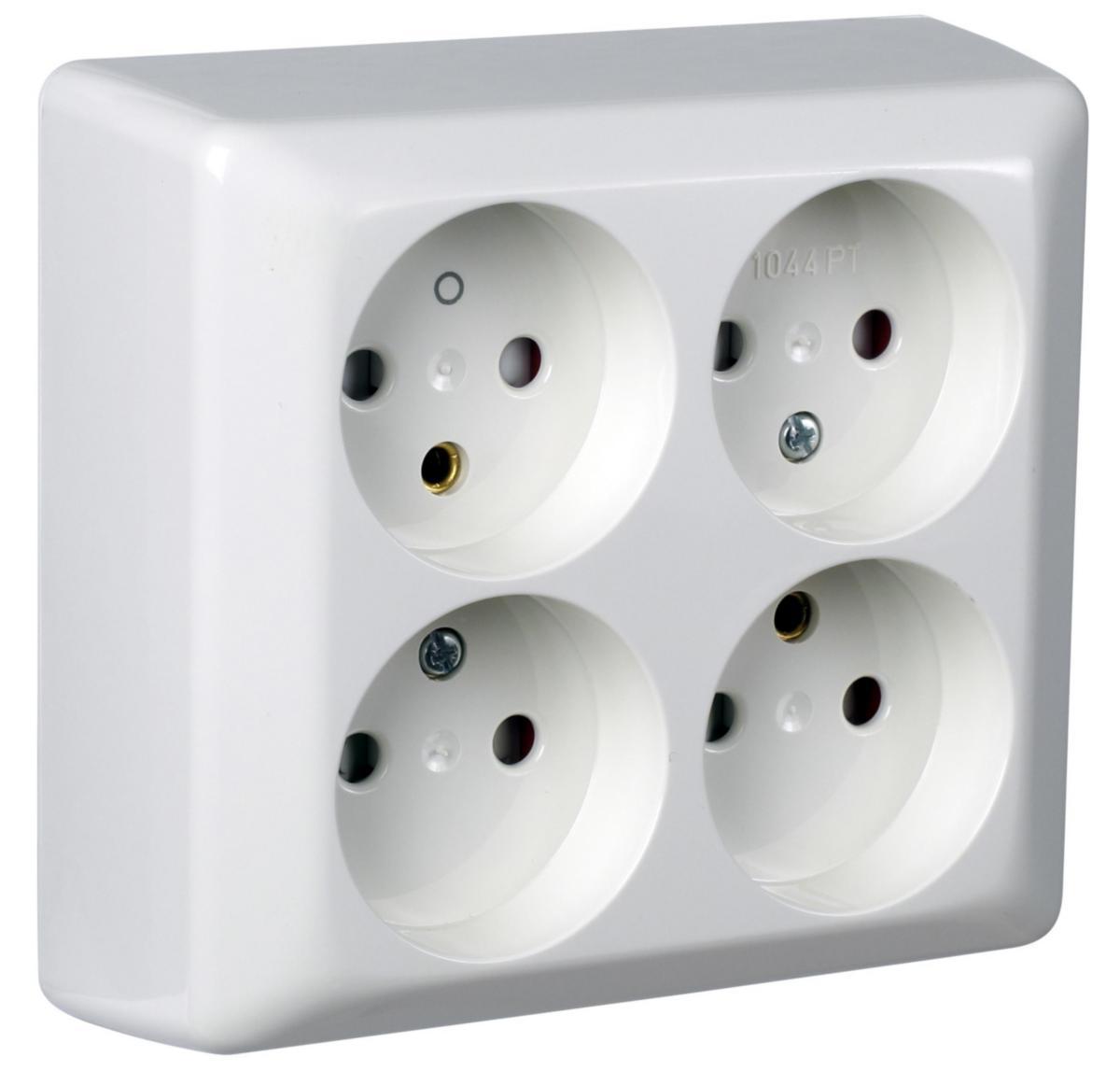

Wall socket 4-way socket 16A

1044 PT SOCKET OUTLET PW EKO05446
Article number:
1841486
Suppl. article no:
EKO05446
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
4-way safety type outlet. Base and centre plate of halogen free thermoplastic. The bottom plate has a key hole with “knock-outs" for mounting on device box. Screw connection for wires. Dual connections per phase. For installation on box or directly on wall. Two of the outlet wells can be controlled via the electric switch. There is space for 3 pcs extra cutover clamps on the bottom plate. E18 414 98 is supplied complete with 3 pcs extra cutover clamps.
  • Article number:
    1841486
  • Suppl. article no:
    EKO05446
  • Ean no:
    7020160544605
  • Material class
    QH3200
Technical data
  • Packagin Size: 1 PCS/5 PCS/50 PCS/900 PCS
  • Product series: RS
  • Number of socket outlets: 4
  • Number of socket outlets switchable: 2
  • Colour: White
  • RAL-number (similar): 9010
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Protective contact: Earthing clips
  • Number of phases: 1
  • Connection type: Screwed terminal
  • Surface finishing: Glossy
  • Lockable: No
  • Device height: 104 mm
  • Device width: 115 mm
  • Device depth: 43 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • With built-in USB power supply: No
  • Concurrently switching neutral conductor: No
  • Number of active contacts (round): 8
  • Number of loop throughs: 1
  • Transparent: No
  • Compliant with UK Building Regulations Part M: No
  • Socket outlets phase-separated: No
  • REACH Date: 2024-07-31
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
  • Metallic colour: No
  • Assembly arrangement: Basic element with complete housing
