Wall socket Elko-Rot with raising frame - RS1051 2-WAY OUTLET ROOT PW EKO05562
Elko

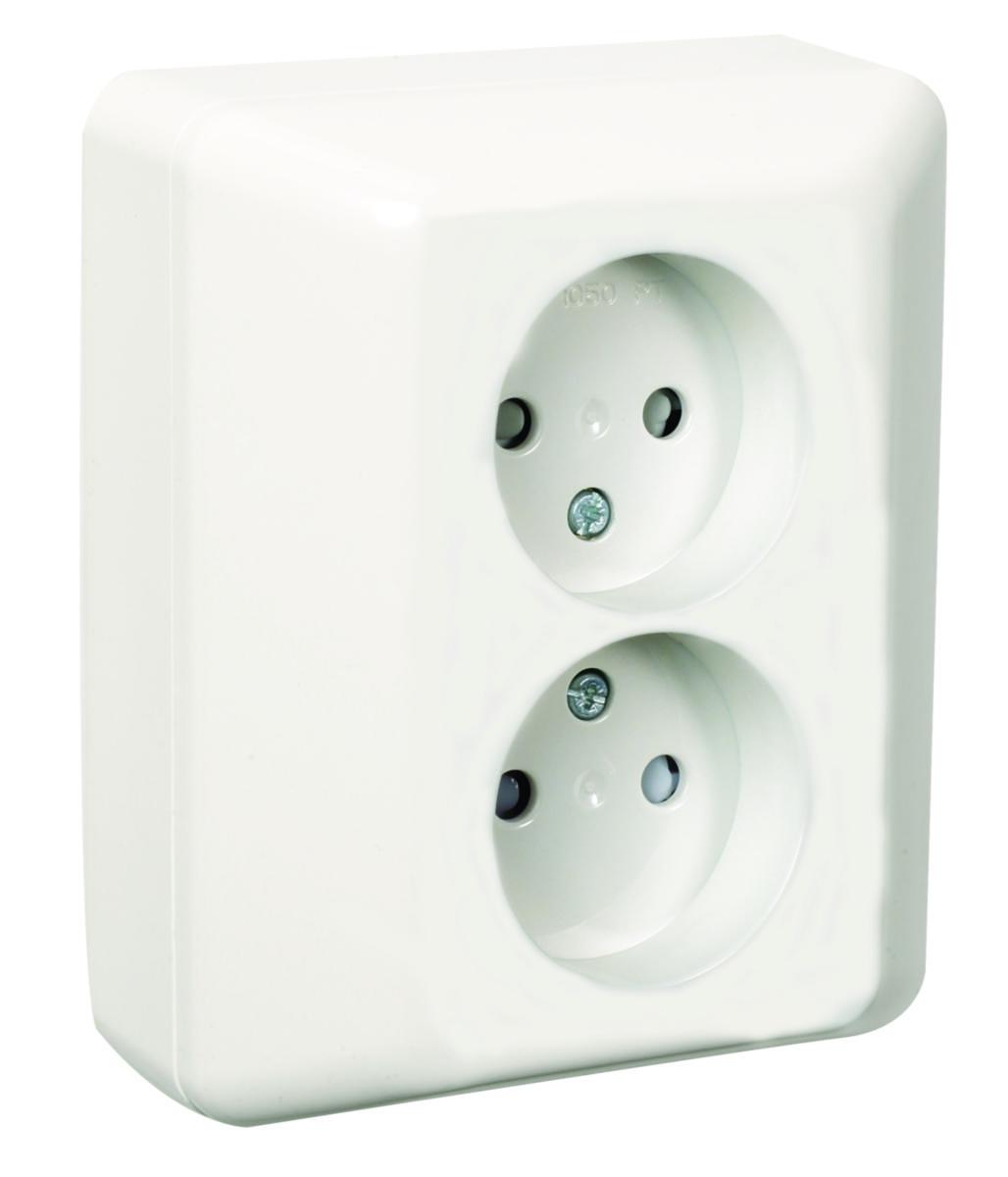

Wall socket Elko-Rot with raising frame

RS1051 2-WAY OUTLET ROOT PW EKO05562
Article number:
1841474
Suppl. article no:
EKO05562
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.
Wall socket with screw connection complete with elevation frame, can be mounted on box or directly in wall. Possibility to continue with the cable exists. Made of halogen-free thermoplastic.
  • Article number:
    1841474
  • Suppl. article no:
    EKO05562
  • Ean no:
    7020160556202
  • Material class
    QH320A
Technical data
  • Packagin Size: 1 ST/10 ST/50 ST
  • Product series: RS
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Number of socket outlets: 2
  • Protective contact: None
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9010
  • Connection type: Screwed terminal
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 84 mm
  • Device width: 84 mm
  • Device depth: 44 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Glossy
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Number of ports USB-A: 0
  • Number of ports USB-C: 0
  • With built-in USB power supply: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: No special power supply
  • Fault current protection: No
  • Frequency: 50 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: No
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: No
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • With built-in bluetooth speaker: No
  • Concurrently switching neutral conductor: Yes
  • With Wi-Fi signal repeater: No
  • Number of modules (module system): 0
  • Number of active contacts (flat): 0
  • Number of active contacts (square): 0
  • Number of active contacts (round): 0
  • Metallic colour: No
  • Transparent: No
  • REACH Date: 2022-08-09
  • REACH Information obligation: No
