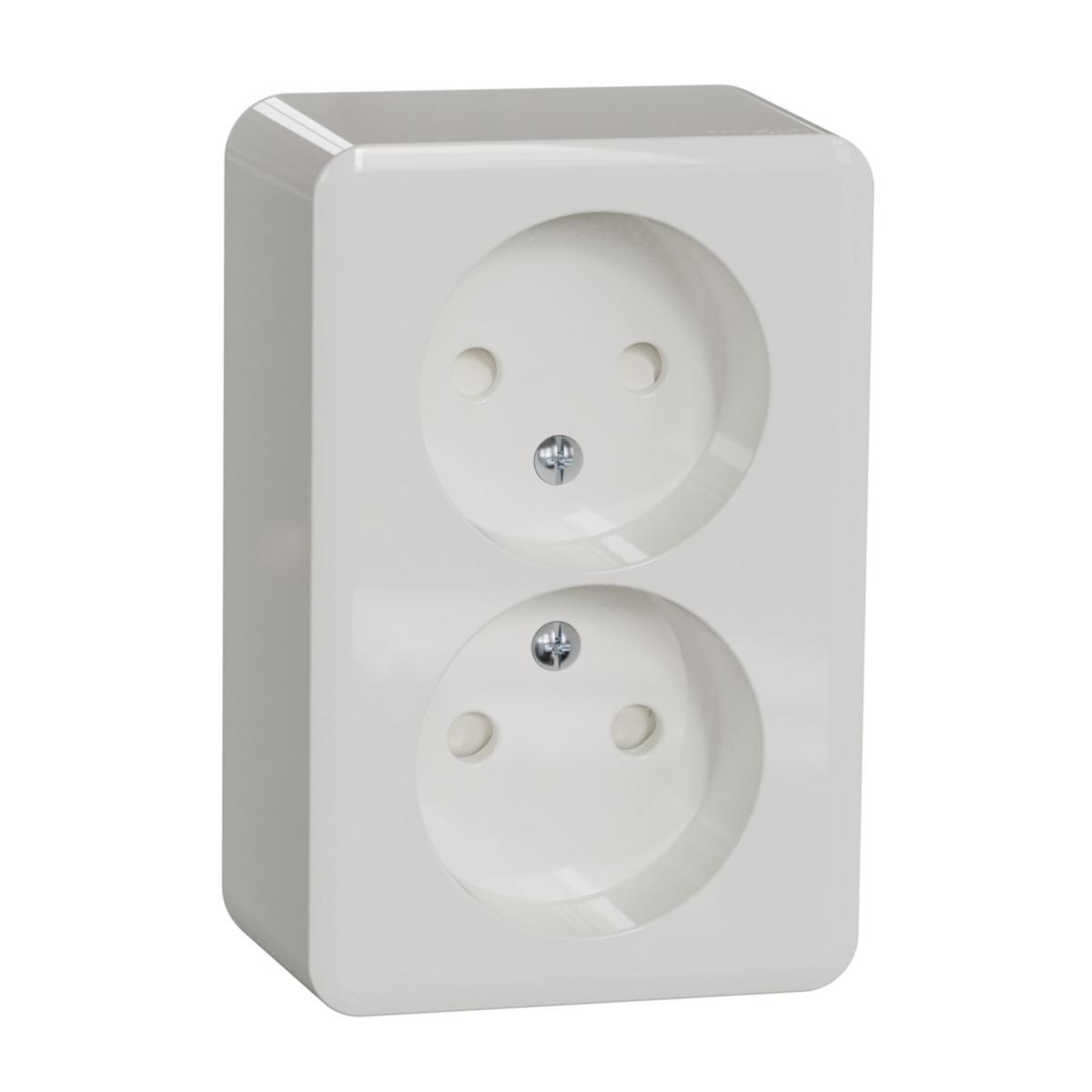

Wall outlet Exxact surface-mounted ungrounded quick connection ​ - DOUBLE SO W/O EARTH SCREWLESS WDE015591
Schneider Electric

Wall outlet Exxact surface-mounted ungrounded quick connection ​

DOUBLE SO W/O EARTH SCREWLESS WDE015591
Article number:
1820300
Suppl. article no:
WDE015591
‌
‌
‌
‌
‌
 to see price and stock
Third party verified Environmental product declarationProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Wall socket for surface installation with integrated base plate. 16AX, 250V pet protected. Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.
  • Article number:
    1820300
  • Suppl. article no:
    WDE015591
  • Ean no:
    3606489504342
  • Material class
    QH1600
Technical data
  • Packagin Size: 1 ST/10 ST/100 ST
  • Type: WDE015591
  • Product series: Exxact
  • Number of socket outlets: 2
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9003
  • Model: CEE 7/1 unearthed
  • Protective contact: None
  • Number of phases: 1
  • Connection type: Push-in clamp
  • Surface finishing: Glossy
  • Lockable: No
  • Device height: 98 mm
  • Device width: 65 mm
  • Device depth: 42 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP21
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 0 mm
  • With built-in USB power supply: No
  • Concurrently switching neutral conductor: No
  • Number of active contacts (flat): 0
  • Number of active contacts (round): 4
  • Number of loop throughs: 2
  • Transparent: No
  • Compliant with UK Building Regulations Part M: No
  • Socket outlets phase-separated: No
  • REACH Date: 2025-07-18
  • GWP-tot (A1-A3): 0,5428 kgCO2e/ST
  • REACH Information obligation: No
  • Metallic colour: No
  • Assembly arrangement: Basic element with complete housing
