Schneider Electric

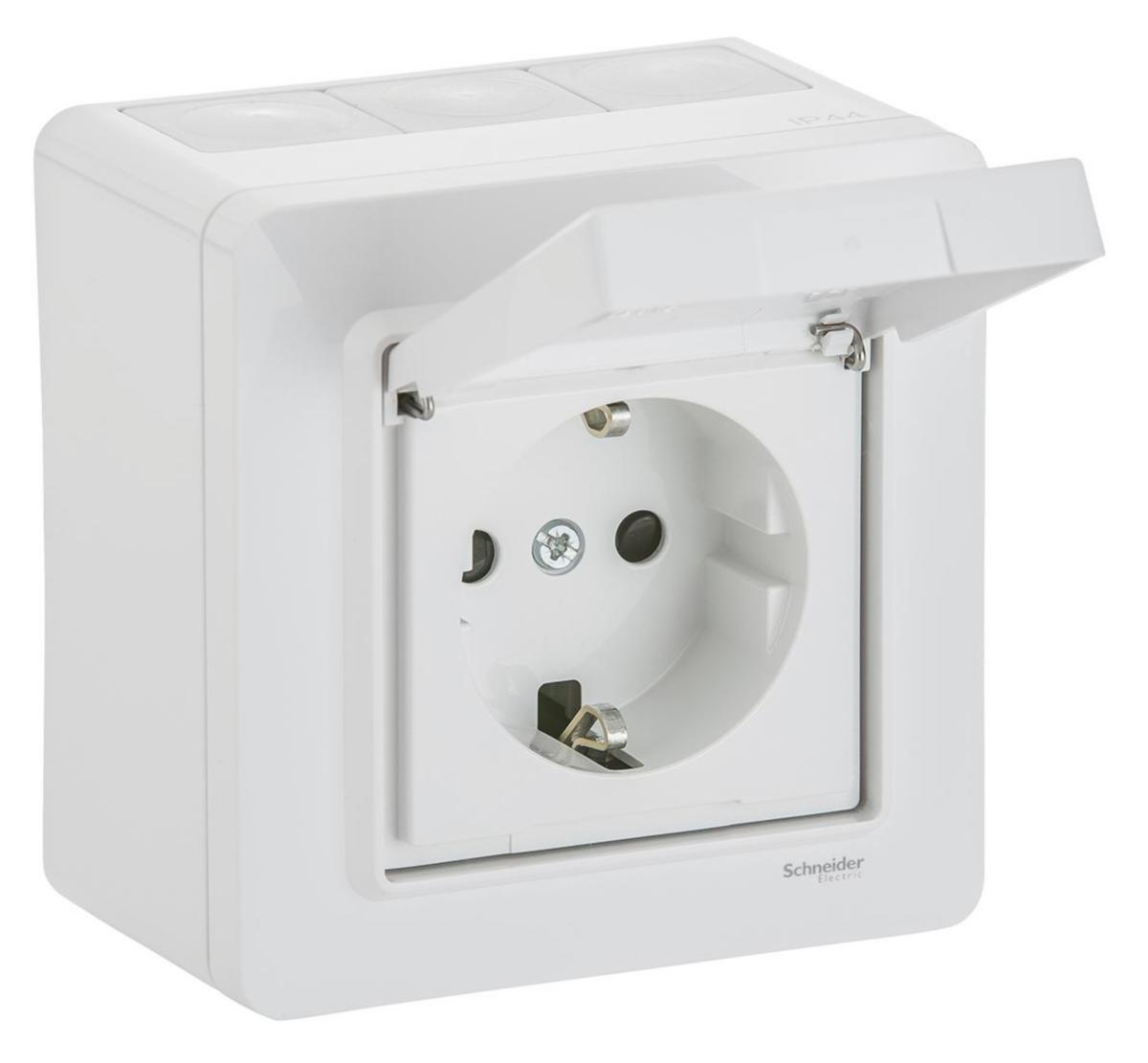

1-way socket ext. IP44 Exxact, Schneider
SSO SURFACE BASIC IP44 WHITE
Article number: Suppl. article no:
1820109
WDE002978
to see price and stock
1-plug socket for surface IP44 installation. Supplied complete with basic frame
- Article number: 1820109
- Suppl. article no: WDE002978
- Ean no: 3606480910135
- Material class QH1660
Technical data
- Packagin Size: 1 ST/5 ST/15 ST
- Type: WDE002978
- Product series: Exxact
- Number of socket outlets: 1
- Colour: White
- RAL-number (similar): 9003
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Protective contact: Earthing clips
- Number of phases: 1
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Lockable: No
- Device height: 85 mm
- Device width: 85 mm
- Device depth: 68 mm
- Type of fastening: Mounting with screw
- Imprint/indication: None
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Special power supply: None
- Fault current protection: No
- Frequency: 50-60 Hz
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Number of active contacts (round): 2
- Number of loop throughs: 1
- Transparent: No
- Socket outlets phase-separated: Yes
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Metallic colour: No
