AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsWall socketRecessed

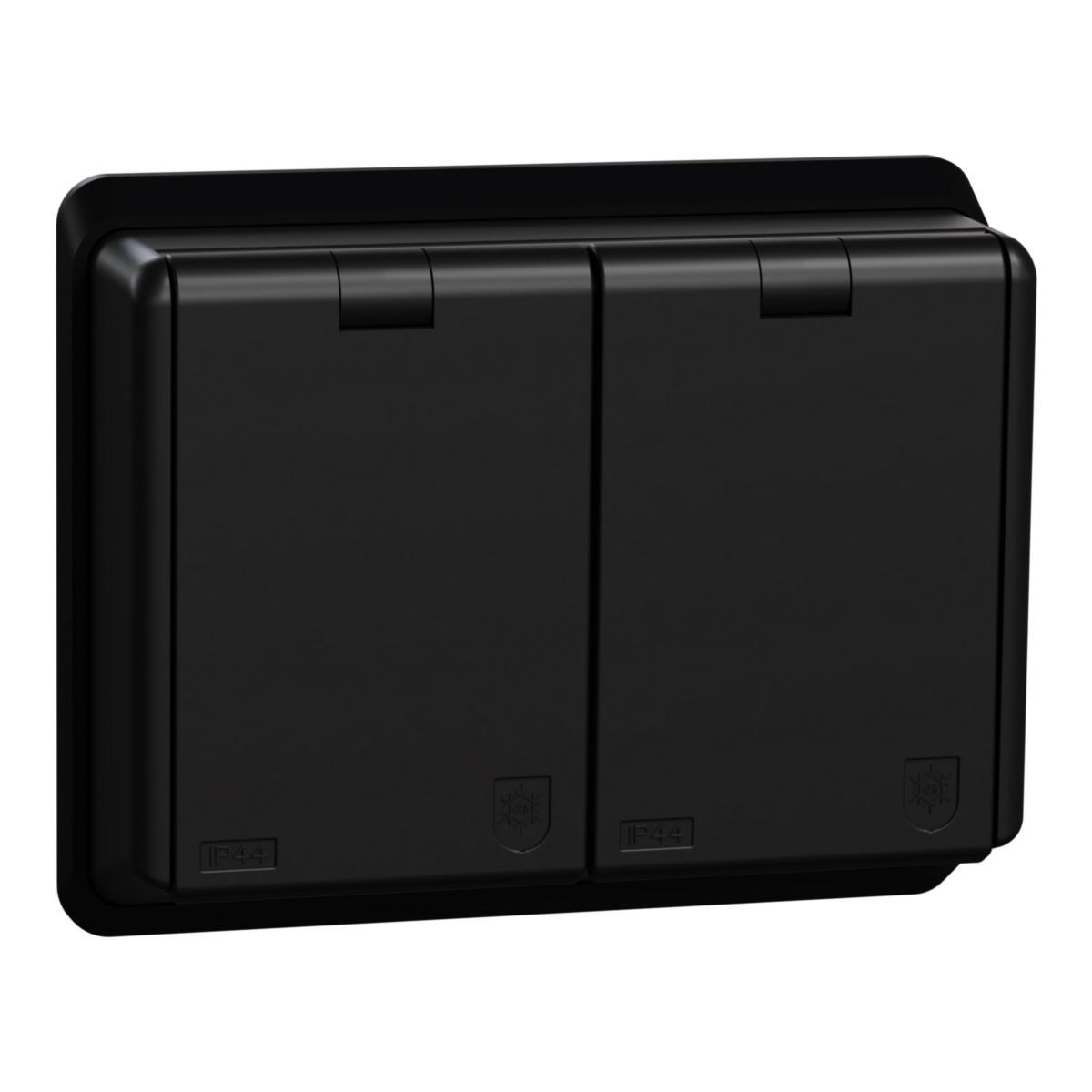

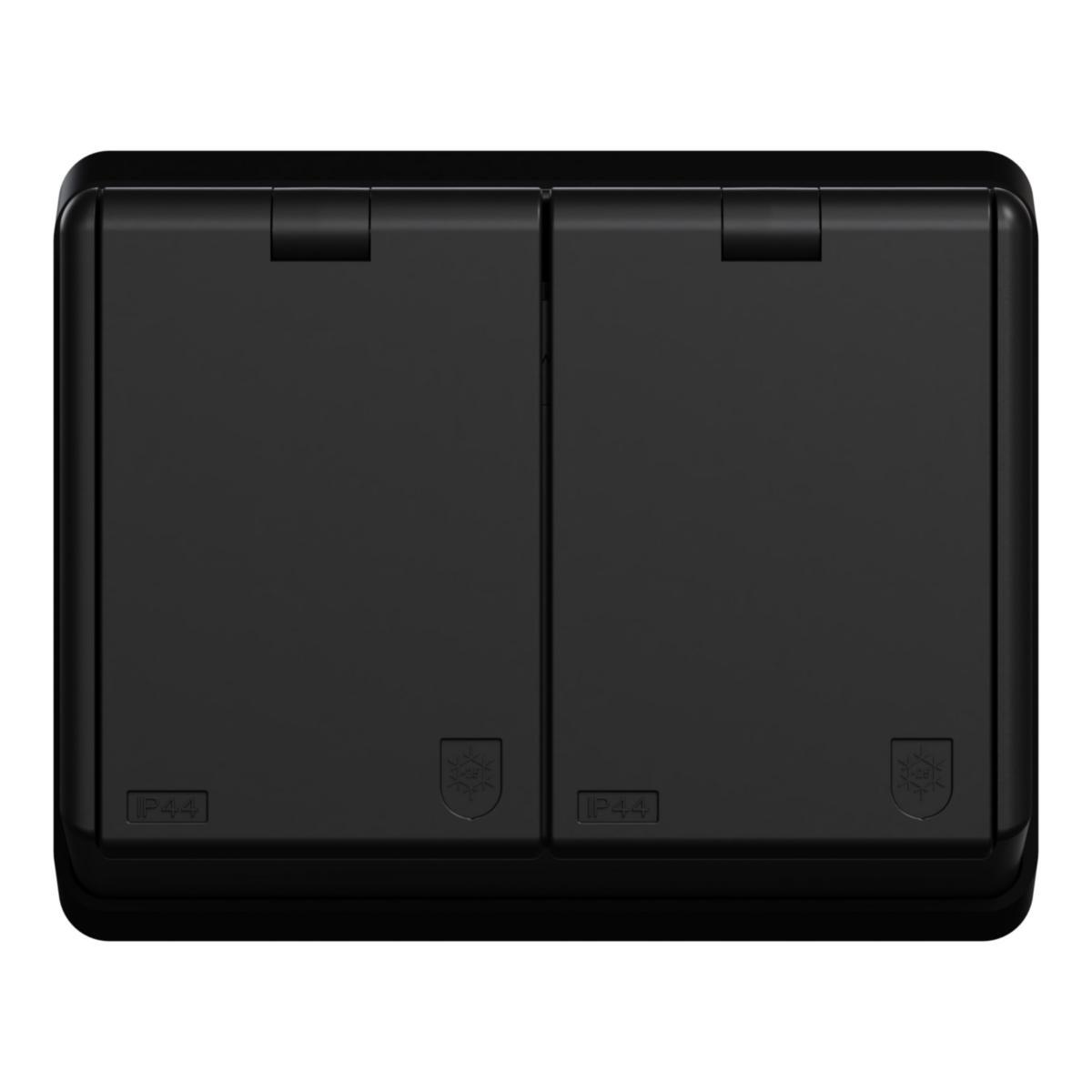

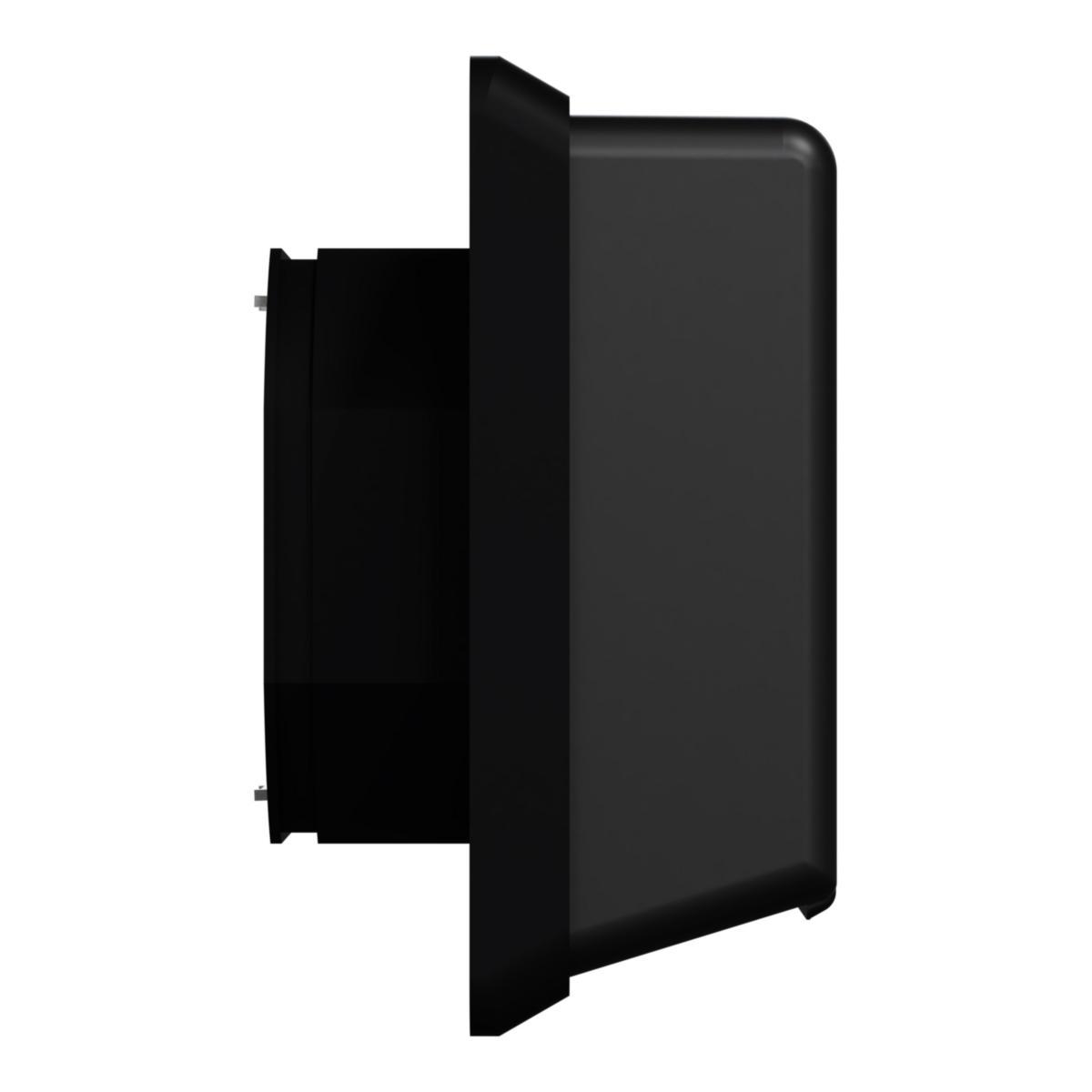

Wall outlet recessed black RS - 1090UPT IF SOCKET OUTLET WT BL
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/19/ProductImage45369419.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/20/ProductImage45369420.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/94/21/ProductImage45369421.jpg
Elko

Wall outlet recessed black RS

1090UPT IF SOCKET OUTLET WT BL
Article number:
1889705
Suppl. article no:
EKO40029
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Wall outlet recessed black RS
  • Article number:
    1889705
  • Suppl. article no:
    EKO40029
  • Ean no:
    7020160400291
  • Material class
    QH3600
Technical data
  • Packagin Size: 1 PCS/5 PCS/25 PCS/1400 PCS
  • Product series: RS
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Number of socket outlets: 2
  • Protective contact: Earthing clips
  • Socket outlets phase-separated: No
  • Colour: Black
  • RAL-number (similar): 9005
  • Connection type: Screwed terminal
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 84 mm
  • Device width: 100.5 mm
  • Device depth: 50 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Matt
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP44
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Lacquered
  • Label space/information surface: No
  • Impact strength: IK02
  • With loop through function: No
  • Insulated mounting: No
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 19 mm
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • With built-in bluetooth speaker: No
  • Concurrently switching neutral conductor: No
  • With Wi-Fi signal repeater: No
  • Number of loop throughs: 2
  • Number of active contacts (round): 4
  • Metallic colour: No
  • Assembly arrangement: Basic element with central cover plate
  • Transparent: No
  • REACH Date: 2023-12-31
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
  • Compliant with UK Building Regulations Part M: No
