Elko
Wall outlet OceanPlastic

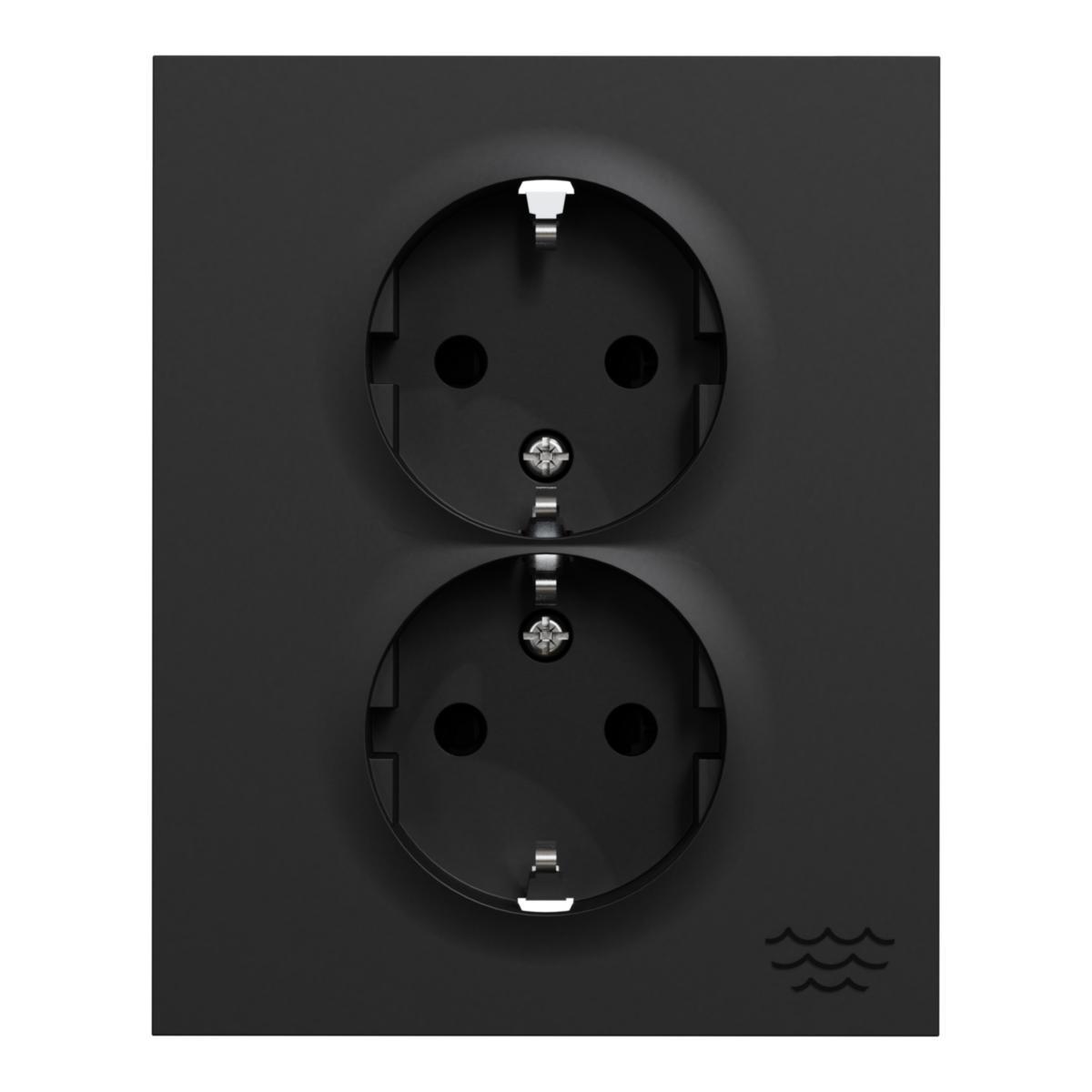

Plus dorble socket outlet blk EKO30017 OCEAN PLASTIC
Article number: Suppl. article no:
1849586
EKO30017
to see price and stock
ELKO is the first in the industry to produce switches, sockets and frames in marine plastic. Initially, products in the ELKO Plus design series in the color black are available in marine plastic. 1-way wall socket, ELKO Plus OP, base, cover plate and frame of halogen-free. Dual connections per phase. Mounting screw distance, 60mm. Delivered without mounting claws. Mounting depth 31mm.
- Article number: 1849586
- Suppl. article no: EKO30017
- Ean no: 7020160300171
- Material class QH3800
- This is an alternative to item 1848486
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: Plus, OceanPlastic
- Number of socket outlets: 2
- Colour: Black
- Surface finishing: Matt
- RAL-number (similar): 9005
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Protective contact: Earthing clips
- Connection type: Screwed terminal
- Number of phases: 1
- Type of fastening: Mounting with screw
- Device height: 107 mm
- Device width: 86 mm
- Device depth: 42.5 mm
- Lockable: No
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Imprint/indication: None
- Special power supply: None
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- Concurrently switching neutral conductor: No
- With enhanced contact protection: Yes
- Transparent: No
- Eject-mechanism: No
- Surface protection: Lacquered
- Label space/information surface: No
- With loop through function: No
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 31 mm
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Number of loop throughs: 2
- With Wi-Fi signal repeater: No
- With built-in bluetooth speaker: No
- Metallic colour: No
- Compliant with UK Building Regulations Part M: No
- Number of active contacts (round): 4
- Socket outlets phase-separated: No
- Assembly arrangement: Basic element with central cover plate
- REACH Date: 2023-12-31
- REACH contains candidate substances: Bly
- With built-in USB power supply: No
- REACH Information obligation: Yes
