AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsWall socketRecessed

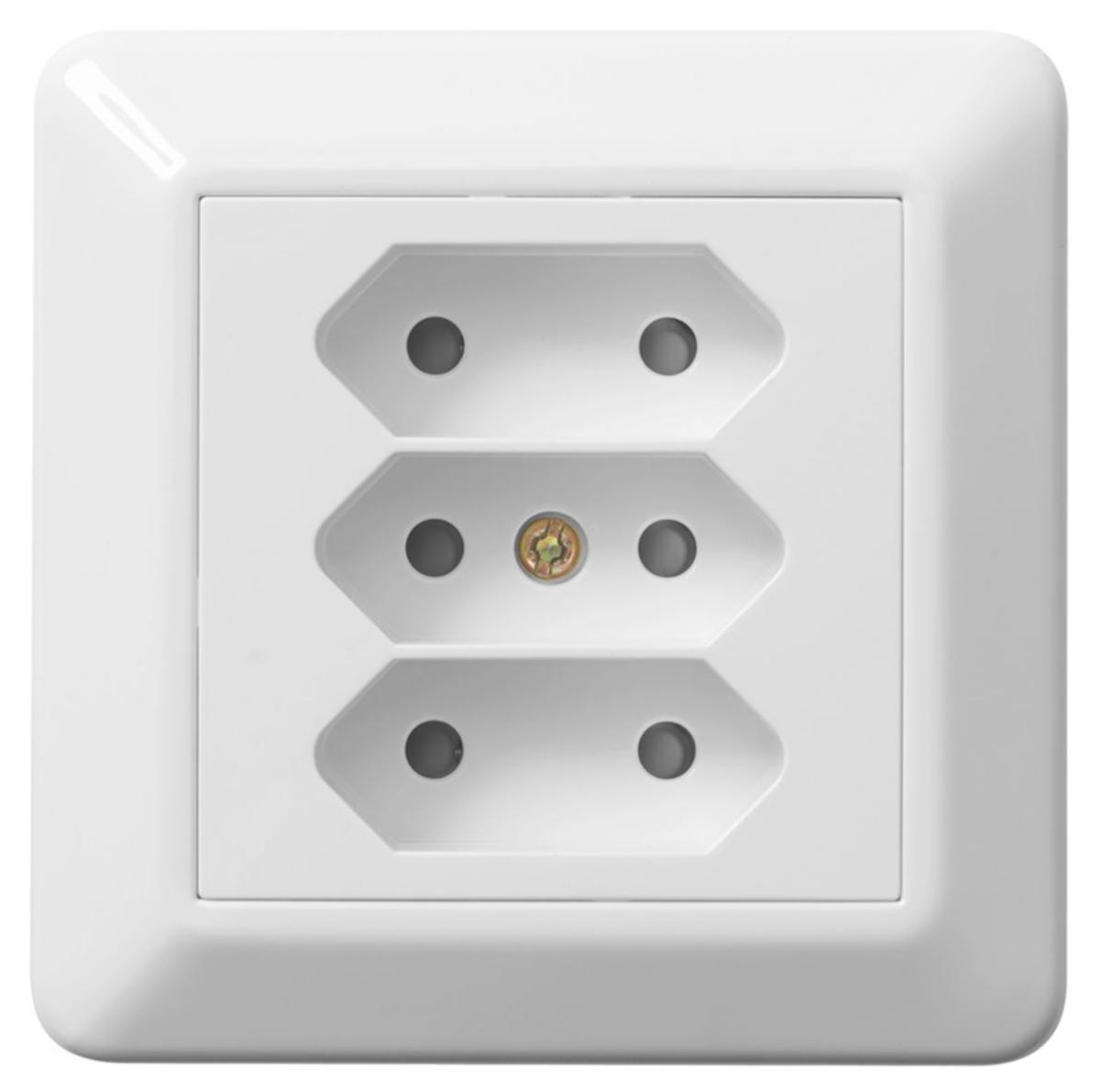

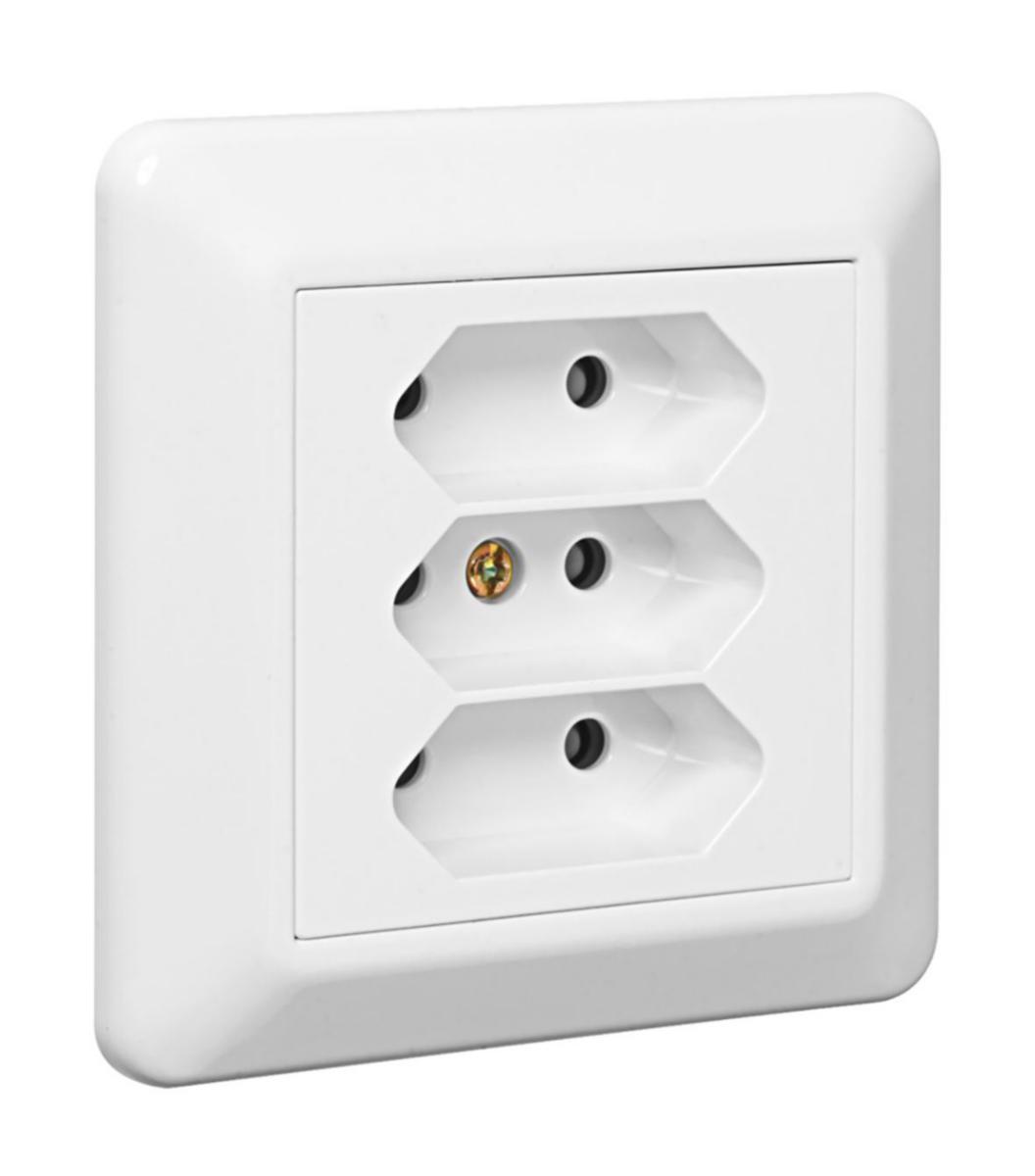

Wall socket 3-way socket EURO flush-mounted 16A - RS1031 3-WAY ERUO OUTLET PW EKO30130
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/02/08/ProductImage35390208.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/02/09/ProductImage35390209.jpg
Elko

Wall socket 3-way socket EURO flush-mounted 16A

RS1031 3-WAY ERUO OUTLET PW EKO30130
Article number:
1848689
Suppl. article no:
EKO30130
‌
‌
‌
‌
‌
 to see price and stock
Socket, cover plate and frame made of halogen-free thermoplastic. Dual connections per phase. Screw connection. Safety output. Fixed screw distance, 60 mm. Supplied with unmounted fasteners.
Assembly depth 31 mm.
  • Article number:
    1848689
  • Suppl. article no:
    EKO30130
  • Ean no:
    7020161301306
  • Material class
    QH3300
Technical data
  • Packagin Size: 1 ST/5 ST/50 ST/800 ST
  • Product series: RS
  • Model: Europlug, female (CEE 7/16, type C)
  • Number of socket outlets: 3
  • Protective contact: None
  • Socket outlets phase-separated: No
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9003
  • Connection type: Screwed terminal
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 84 mm
  • Device width: 84 mm
  • Device depth: 28 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Glossy
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • With built-in USB power supply: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 2.5 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 30 mm
  • Concurrently switching neutral conductor: No
  • Number of loop throughs: 1
  • Number of modules (module system): 0
  • Number of active contacts (round): 6
  • Metallic colour: No
  • Assembly arrangement: Basic element with complete housing
  • Transparent: No
  • REACH Date: 2025-07-18
  • REACH Information obligation: No
  • Compliant with UK Building Regulations Part M: No
