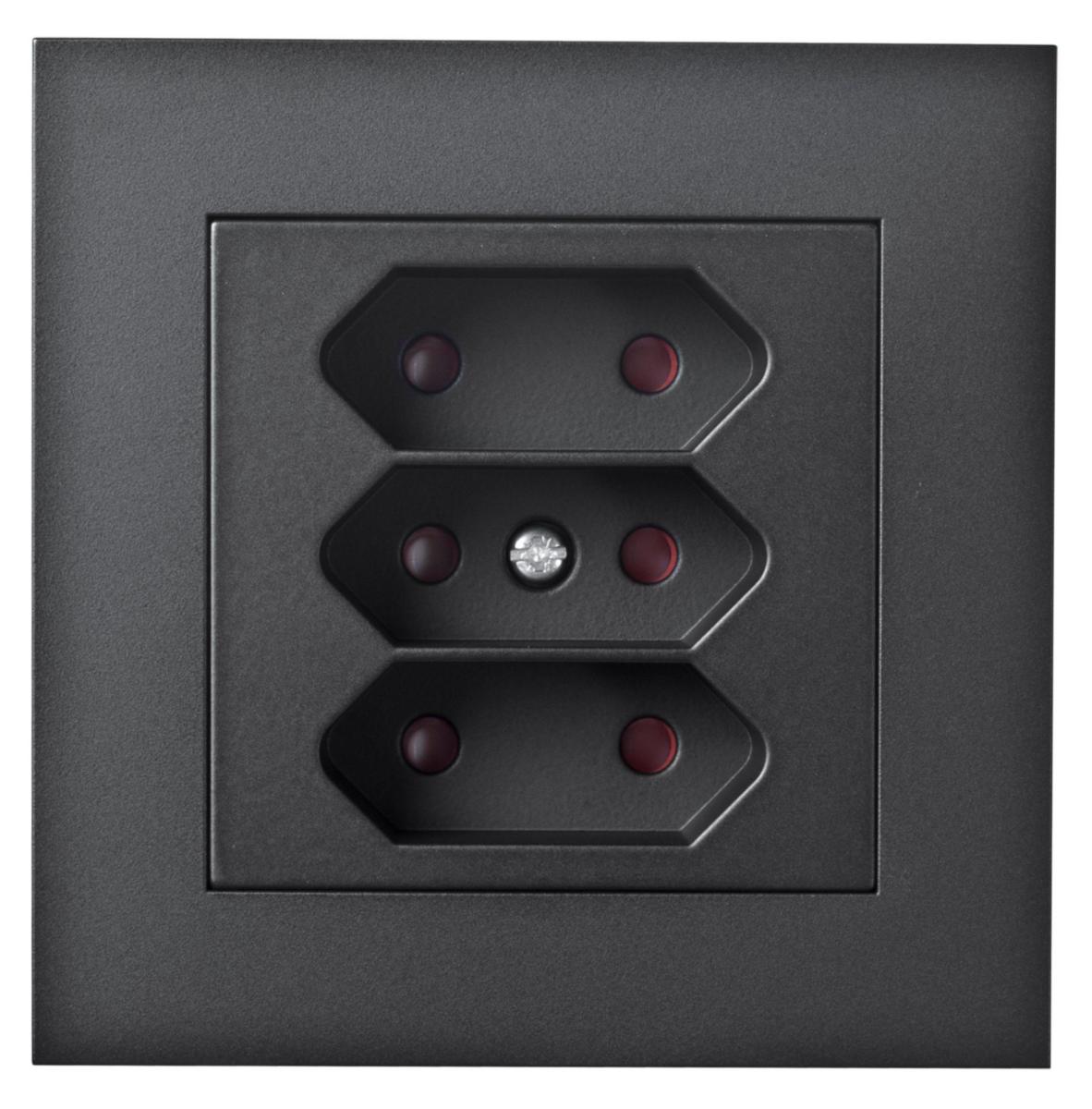

Wall socket 3-way EURO - PLUS EURO OUTLET 3 WAY BLK
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/93/32/ProductImage36359332.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/93/33/ProductImage36359333.jpg
Elko

Wall socket 3-way EURO

PLUS EURO OUTLET 3 WAY BLK
Article number:
1848489
Suppl. article no:
EKO03783
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Socket, cover plate and frame made of halogen-free thermoplastic. Dual connections per phase. Supplied without fixing claws.
  • Article number:
    1848489
  • Suppl. article no:
    EKO03783
  • Ean no:
    7020160378309
  • Material class
    QH380A
Technical data
  • Packagin Size: 1 PCS/5 PCS/50 PCS
  • Product series: Plus
  • Number of socket outlets: 3
  • Number of socket outlets switchable: 0
  • Colour: Black
  • Surface finishing: Matt
  • RAL-number (similar): 9005
  • Model: Europlug, female (CEE 7/16, type C)
  • Protective contact: None
  • Connection type: Screwed terminal
  • Number of phases: 1
  • Type of fastening: Mounting with screw
  • Device height: 86 mm
  • Device width: 86 mm
  • Device depth: 38.5 mm
  • Lockable: No
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 2.5 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Imprint/indication: None
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • Concurrently switching neutral conductor: No
  • With enhanced contact protection: Yes
  • Transparent: No
  • Eject-mechanism: No
  • Surface protection: Lacquered
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 30 mm
  • Number of loop throughs: 1
  • Metallic colour: No
  • Compliant with UK Building Regulations Part M: No
  • Number of active contacts (round): 6
  • Socket outlets phase-separated: No
  • Assembly arrangement: Basic element with complete housing
  • Cover: Full cover plate
  • REACH Date: 2024-07-31
  • REACH contains candidate substances: Bly
  • With built-in USB power supply: No
  • REACH Information obligation: Yes
