Elko

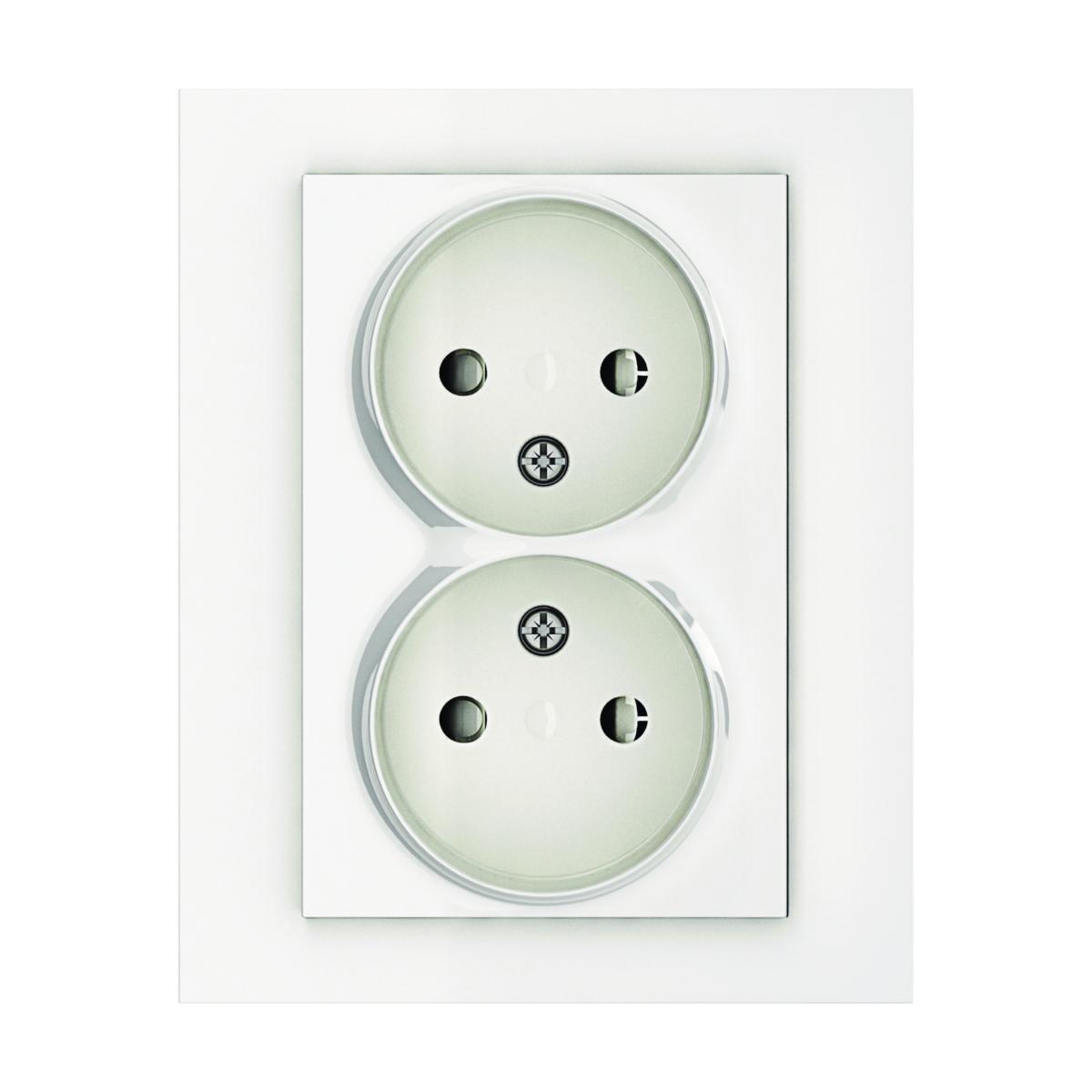

2-way wall socket for normal appliance box, ungrounded
SOCKET OUTLET DOUBL W/O PE WHT 5289
Article number: Suppl. article no:
1848185
EKO05289
to see price and stock
The ELKO Plus wall socket for recessed installation in an ordinary apparatus box with 60mm fixing screw distance. DUO base, i.e. both screw and quick connections. Supplied without fastening claws; supplement with 18 405 94 if needed. Assembly depth 26 mm. Made of halogen-free thermoplastic.
- Article number: 1848185
- Suppl. article no: EKO05289
- Ean no: 7020160528902
- Material class QH3800
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Type: EKO05289
- Product series: Elko Plus
- Number of units: 2
- Number of socket outlets switchable: 0
- Colour: White
- Surface finishing: Glossy
- RAL-number (similar): 9010
- Model: CEE 7/1 unearthed
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Device height: 107 mm
- Device width: 86 mm
- Device depth: 45 mm
- Lockable: No
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Transparent: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Number of modules (module system): 0
- With built-in USB power supply: No
- Cover: Full cover plate
- REACH Date: 2022-08-09
- REACH Information obligation: No
