Elko

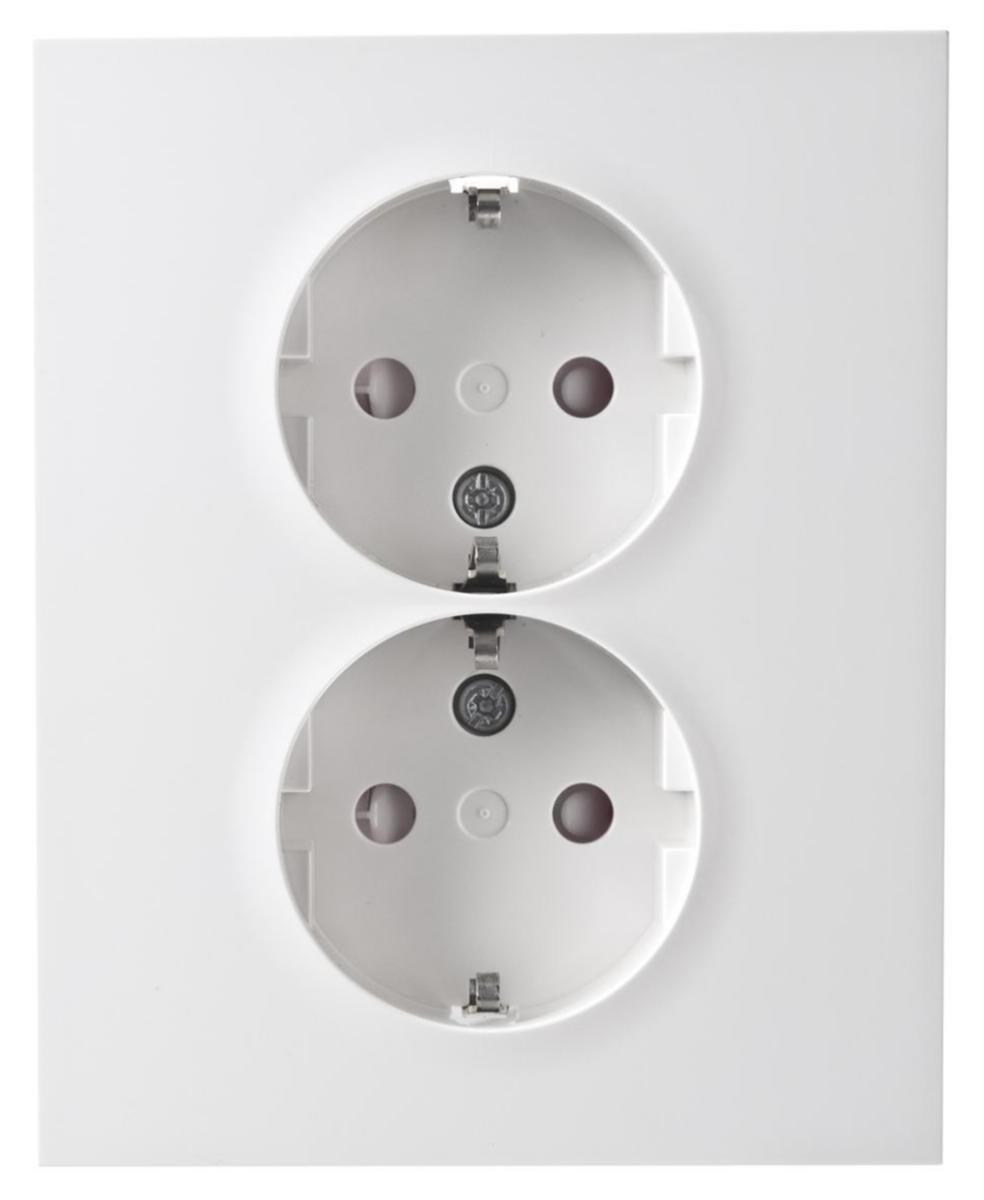

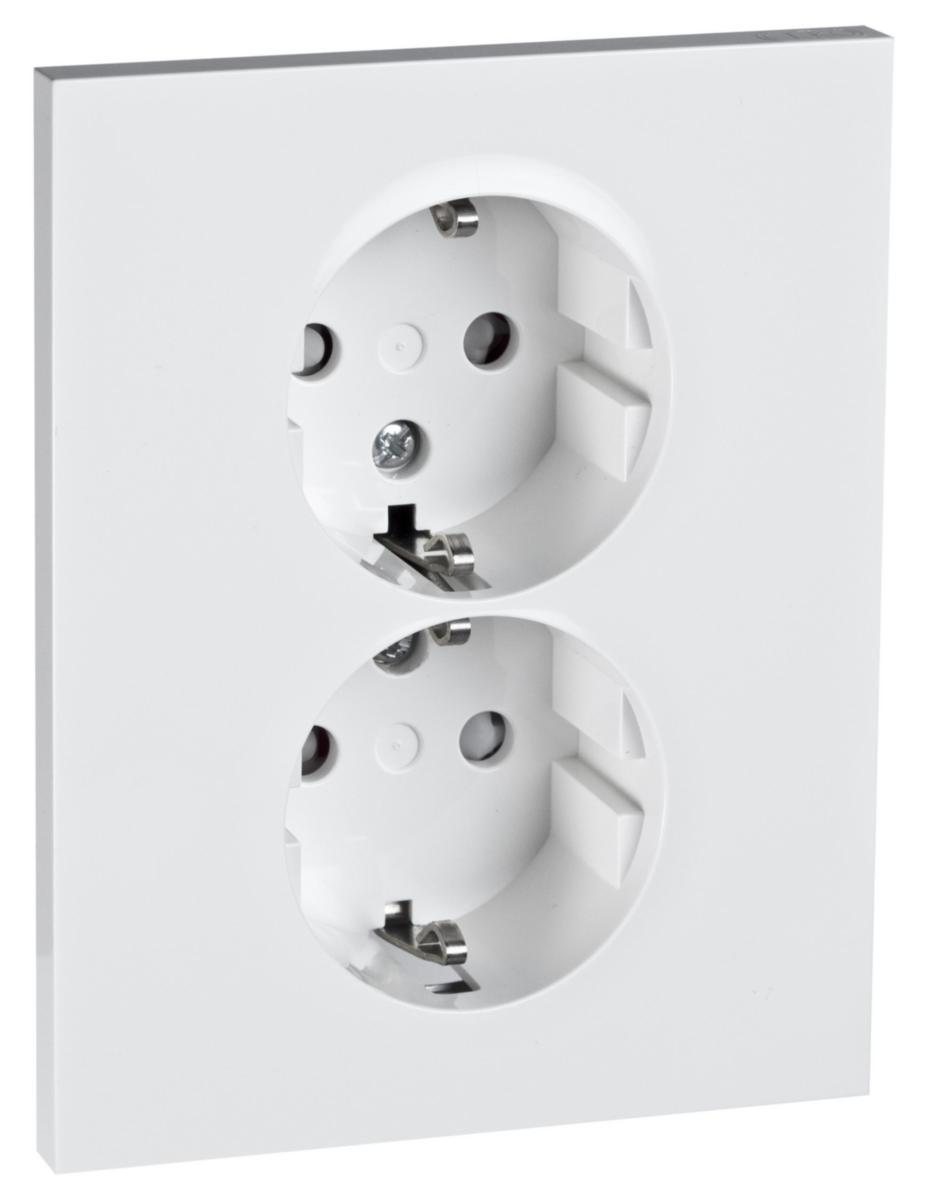

Wall socket 2-way low, Elko Plus
PLUS DOUBLE SOCKET OUTLET PW
Article number: Suppl. article no:
1848086
EKO03778
to see price and stock
Requires ELKO’s Special box 14 203 12 or with fixing bracket 14 203 13. Alternatively, a standard device box and elevation frame 18 489 34/ -44/ -54. Supplied without fastening claws; supplement with 18 405 94 if needed.
- Article number: 1848086
- Suppl. article no: EKO03778
- Ean no: 7020160377807
- Material class QH3800
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS/1400 PCS
- Product series: Plus
- Number of socket outlets: 2
- Colour: White
- Surface finishing: Glossy
- RAL-number (similar): 9010
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Protective contact: Earthing clips
- Connection type: Screwed terminal
- Number of phases: 1
- Type of fastening: Mounting with screw
- Device height: 107 mm
- Device width: 86 mm
- Device depth: 42.5 mm
- Lockable: No
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Imprint/indication: None
- Special power supply: None
- Fault current protection: No
- Frequency: 50-60 Hz
- With miniature fuse: No
- Concurrently switching neutral conductor: No
- With enhanced contact protection: Yes
- Transparent: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: No
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 31 mm
- Number of loop throughs: 2
- Metallic colour: No
- Compliant with UK Building Regulations Part M: No
- Number of active contacts (round): 4
- Socket outlets phase-separated: No
- Assembly arrangement: Basic element with complete housing
- Cover: Full cover plate
- REACH Date: 2024-07-31
- REACH contains candidate substances: Bly
- With built-in USB power supply: No
- REACH Information obligation: Yes
