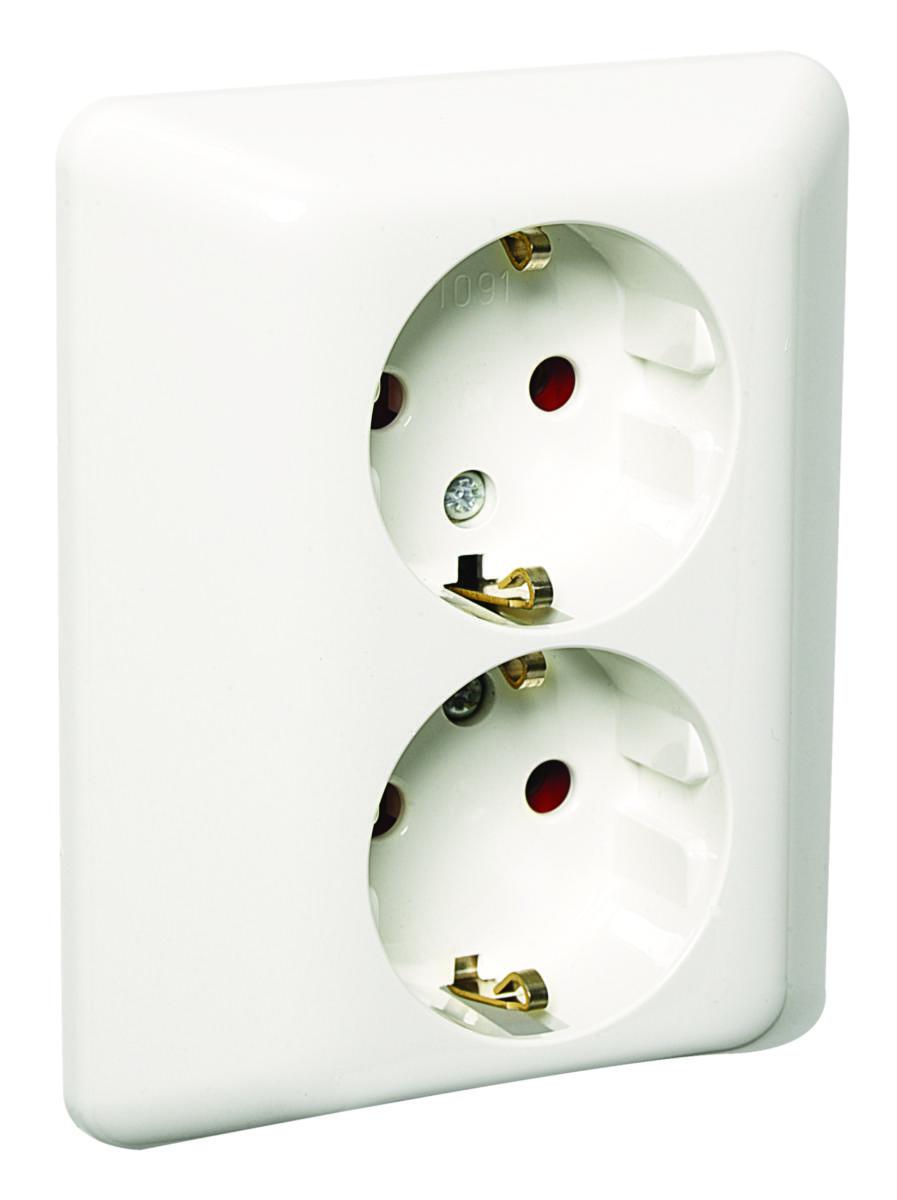

Wall socket 2-way RS 440V with shared neutral conductor - 2-WAY OUTLET SWITCH 440V EKO05816
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/04/37/ProductImage36360437.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/04/38/ProductImage36360438.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/04/39/ProductImage36360439.jpg
Elko

Wall socket 2-way RS 440V with shared neutral conductor

2-WAY OUTLET SWITCH 440V EKO05816
Article number:
1841450
Suppl. article no:
EKO05816
‌
‌
‌
‌
‌
 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.

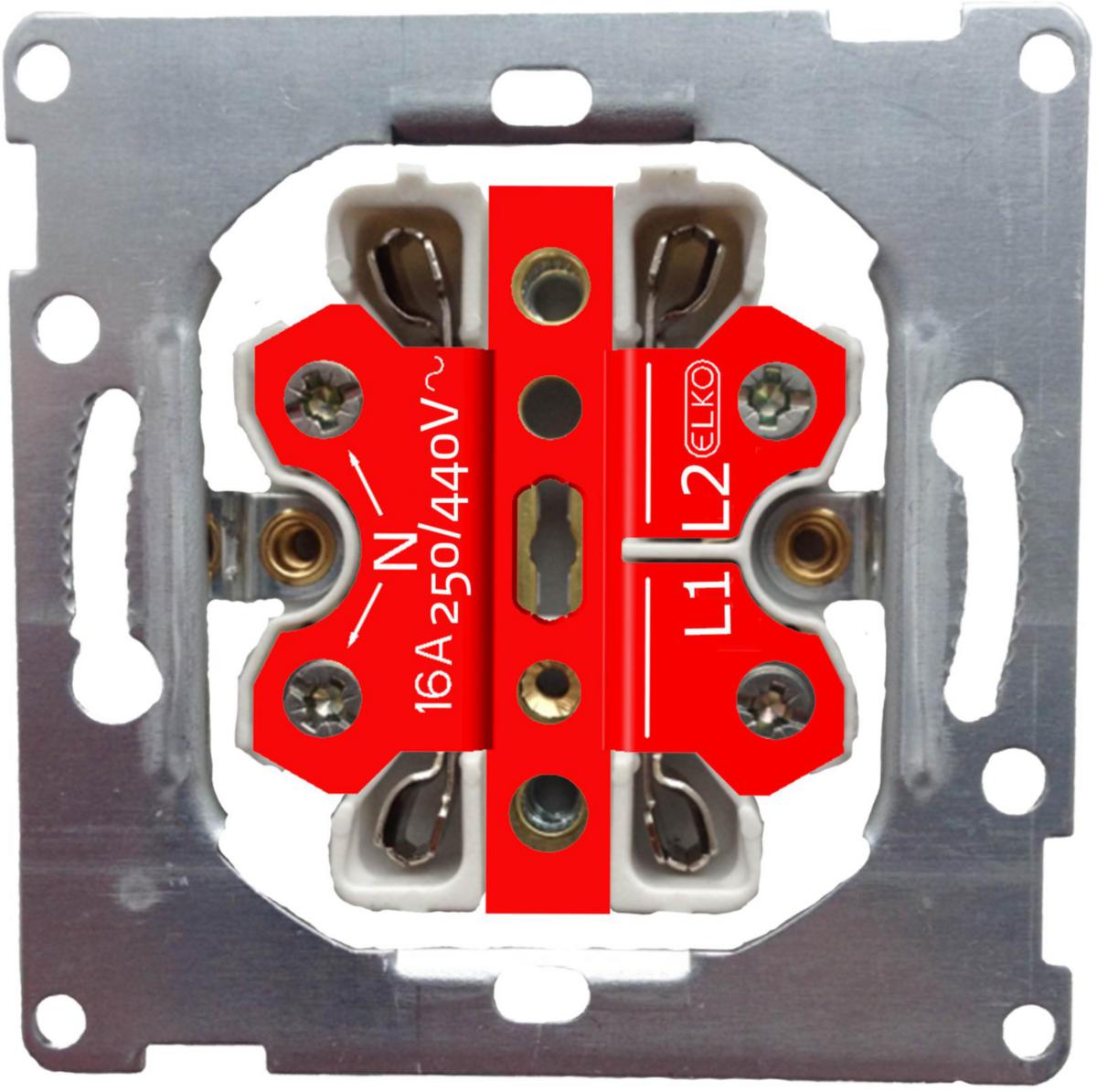

Wall outlet, 2-way, recessed, grounded with separate wells, approved for feeding two phases 440V, NOTE! Use 2-pole miniature circuit breaker (MCB).
  • Article number:
    1841450
  • Suppl. article no:
    EKO05816
  • Ean no:
    7020160581600
  • Material class
    QH3201
Technical data
  • Packagin Size: 1 ST/5 ST/50 ST
  • Type: EKO05816
  • Product series: RS
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Number of socket outlets: 2
  • Protective contact: Earthing clips
  • Socket outlets phase-separated: No
  • Number of socket outlets switchable: 1
  • Colour: White
  • RAL-number (similar): 9010
  • Connection type: Screwed terminal
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 104 mm
  • Device width: 84 mm
  • Device depth: 45 mm
  • Lockable: No
  • Number of phases: 2
  • Surface finishing: Glossy
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • With built-in USB power supply: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 440 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 22 mm
  • Concurrently switching neutral conductor: No
  • Number of loop throughs: 2
  • Number of modules (module system): 0
  • Number of active contacts (round): 4
  • Metallic colour: No
  • Assembly arrangement: Basic element with complete housing
  • Transparent: No
  • REACH Date: 2024-07-31
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
  • Compliant with UK Building Regulations Part M: No
