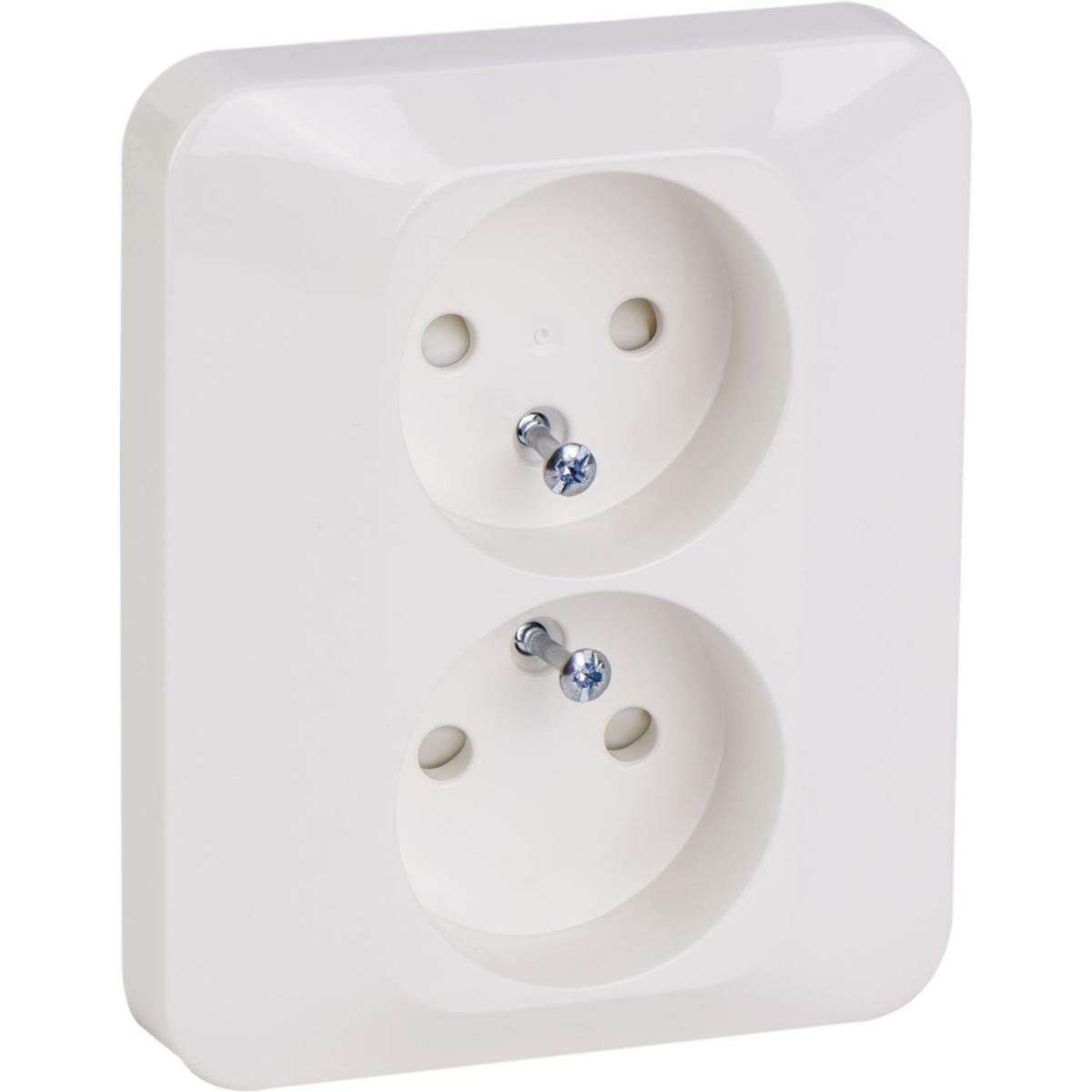

Wall socket 2-way thermoplastic 16A - SOCKET 2-WAY U.J. INF. P-VIT
Schneider Electric

Wall socket 2-way thermoplastic 16A

SOCKET 2-WAY U.J. INF. P-VIT
Article number:
1830291
Suppl. article no:
183029100
‌
‌
‌
‌
‌
 to see price and stock
Third party verified Environmental product declarationProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
2-way outlet, tamper-resistant for recessed mounting in device box c-c 60 mm. Incl. mounting ring For surface mounting, a E18 303 00 frame is used. Approved for kulo insertion. With two neutral transfer clamps.
  • Article number:
    1830291
  • Suppl. article no:
    183029100
  • Ean no:
    6438054017899
  • Material class
    QH0300
Technical data
  • Packagin Size: 1 ST/10 ST/60 ST
  • Product series: Trend
  • Model: Other
  • Number of socket outlets: 2
  • Protective contact: Round
  • Socket outlets phase-separated: No
  • Colour: White
  • RAL-number (similar): 9010
  • Connection type: Push-in clamp
  • Type of fastening: Mounting with claw and screw
  • Imprint/indication: None
  • Device height: 71 mm
  • Device width: 71 mm
  • Device depth: 40 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Glossy
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Rated fault current: 0 mA
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • Impact strength: IK01
  • With loop through function: Yes
  • Insulated mounting: No
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 28 mm
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • Concurrently switching neutral conductor: No
  • Number of loop throughs: 2
  • Number of active contacts (round): 4
  • Metallic colour: No
  • Assembly arrangement: Basic element with central cover plate
  • Transparent: No
  • GWP-tot (A1-A3): 0,5721 kgCO2e/ST
  • REACH Date: 2025-07-18
  • REACH contains candidate substances: DEHP, (dietylhexylftalat eller Bis(2-etylhexyl)ftalat)
  • REACH Information obligation: Yes
  • Compliant with UK Building Regulations Part M: No
