Schneider Electric

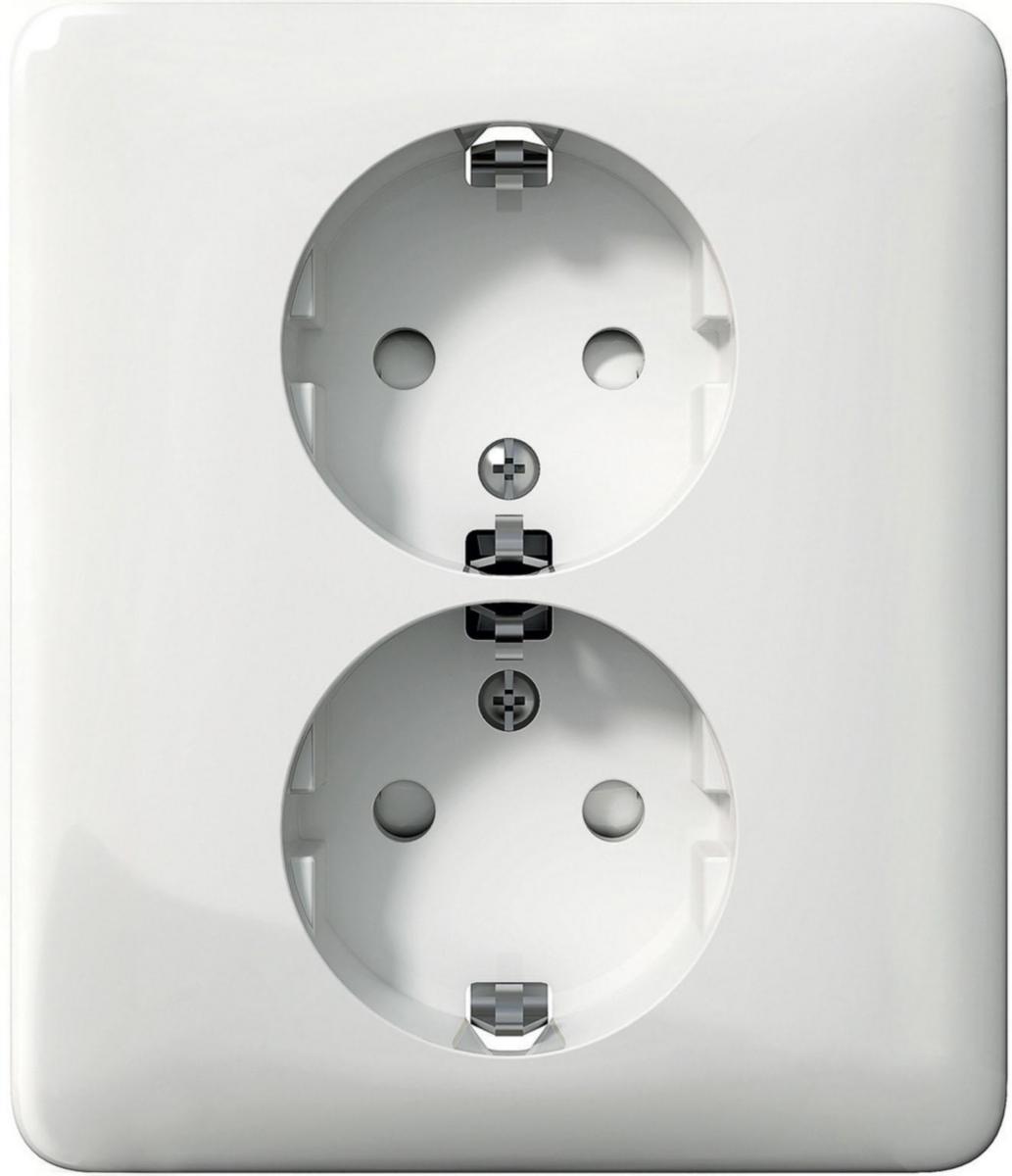

Wall socket 2-way Primo-design
DOUBLE SOCKET EARTHED FULL BOX WDE002999
Article number: Suppl. article no:
1820444
WDE002999
to see price and stock
Complete 2-way socket Primo design,16A, tamper-protected, for recessed installation in apparatus box c/c 60 mm. Use 22 mm box for surface mounting.
- Article number: 1820444
- Suppl. article no: WDE002999
- Ean no: 13606481033410
- Material class QH1750
Technical data
- Packagin Size: 1 FRP/10 FRP/120 FRP
- Product series: Exxact
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Number of socket outlets: 2
- Protective contact: Earthing clips
- Socket outlets phase-separated: Yes
- Colour: White
- RAL-number (similar): 9003
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 100 mm
- Device width: 85 mm
- Device depth: 44.2 mm
- Lockable: No
- Number of phases: 1
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: None
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Impact strength: IK07
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 22.4 mm
- Number of loop throughs: 1
- Number of active contacts (round): 2
- Metallic colour: No
- Transparent: No
- REACH Date: 2025-07-18
- REACH Information obligation: No
