AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsWall socketRecessed

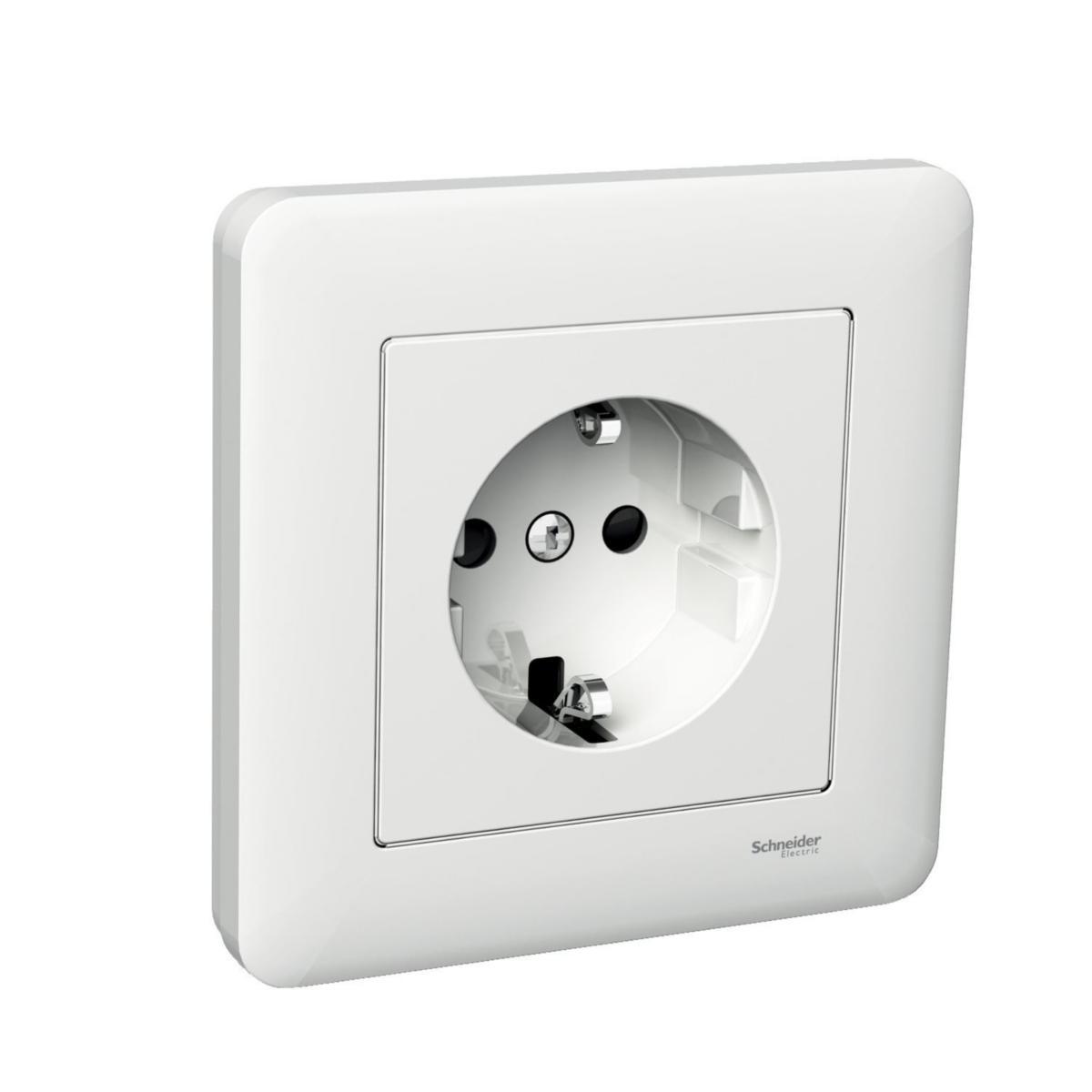

Wall socket 1-way Exxact Wall socket 1-way grounded complete (not combinable) - WALL SOCKET+ICP COMPL WH EXXACT
Schneider Electric

Wall socket 1-way Exxact Wall socket 1-way grounded complete (not combinable)

WALL SOCKET+ICP COMPL WH EXXACT
Article number:
1820275
Suppl. article no:
WDE002376
‌
‌
‌
‌
‌
 to see price and stock
Third party verified Environmental product declarationProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
1-way socket 16A with full cover (not combinable) 16A. Tamper-protected. For recessed mounting in device case, 60mm c/c, for surface mounting using box 35mm.
  • Article number:
    1820275
  • Suppl. article no:
    WDE002376
  • Ean no:
    3606480203350
  • Material class
    QH1701
Technical data
  • Packagin Size: 1 PCS/10 PCS/40 PCS
  • Type: WDE002376
  • Product series: Exxact
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Number of socket outlets: 1
  • Protective contact: Earthing clips
  • Socket outlets phase-separated: Yes
  • Colour: White
  • RAL-number (similar): 9003
  • Connection type: Push-in clamp
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 82 mm
  • Device width: 82 mm
  • Device depth: 39 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Glossy
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • With built-in USB power supply: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 28 mm
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • Number of loop throughs: 1
  • Number of active contacts (round): 2
  • Metallic colour: No
  • Transparent: No
  • REACH Date: 2025-07-18
  • REACH contains candidate substances: Bly | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
  • Protective earth pin round: No
  • Protective contact: No
  • REACH Information obligation: Yes
