Schneider Electric

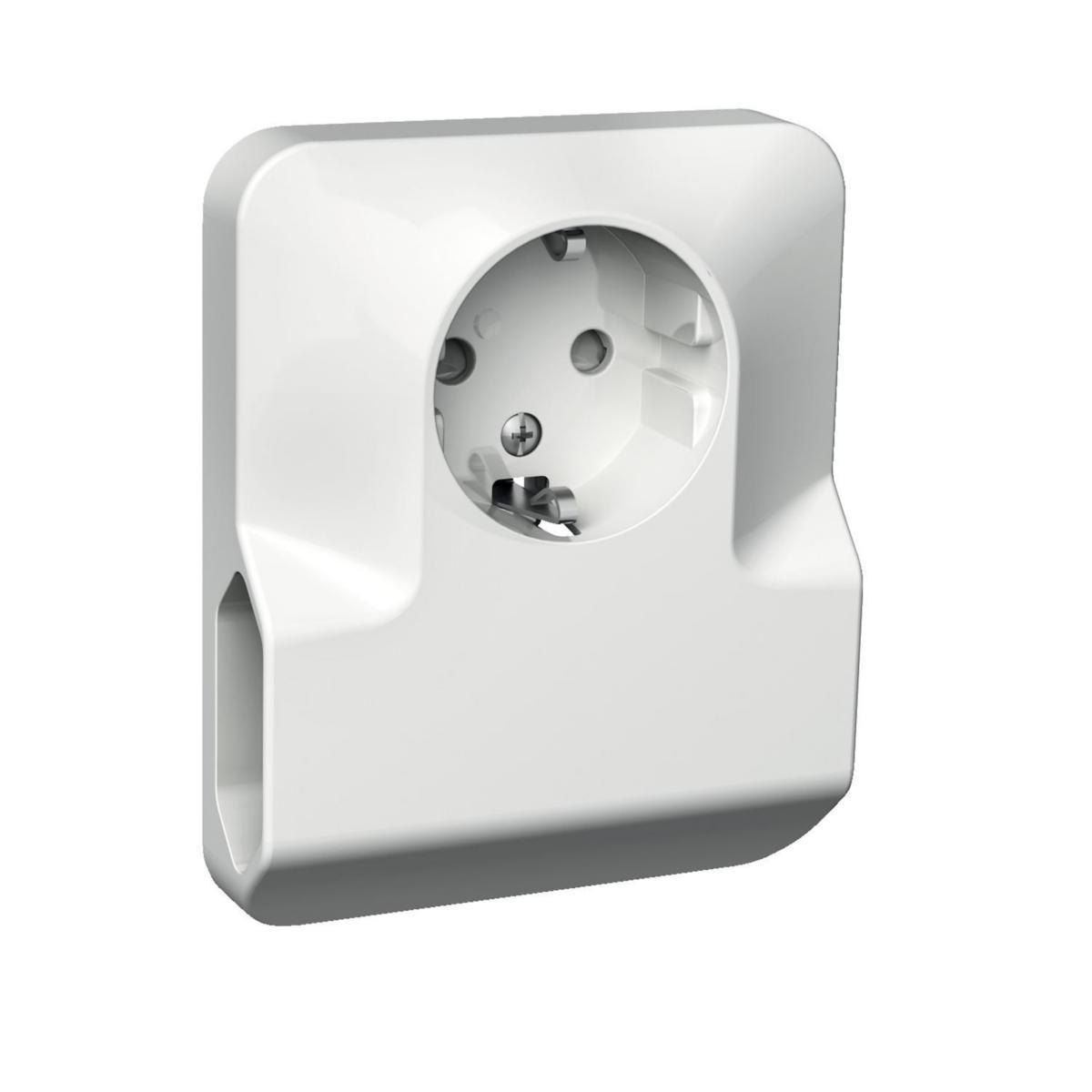

Wall socket 3-way Kombi and class II socket
WALL SOCKET COMBI SCREW WH EXXACT
Article number: Suppl. article no:
1820233
WDE002281
to see price and stock
Socket with two class II sockets and one earthed socket or with four class II sockets. Finger protected. Use WDE002359. box for surface mounting.
- Article number: 1820233
- Suppl. article no: WDE002281
- Ean no: 3606480204418
- Material class QH170A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: WDE002281
- Product series: Exxact
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Number of socket outlets: 3
- Protective contact: Earthing clips
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 100 mm
- Device width: 82 mm
- Device depth: 44 mm
- Lockable: No
- Number of phases: 1
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Rated fault current: 0 mA
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 22 mm
- Number of loop throughs: 1
- Number of active contacts (round): 2
- Metallic colour: No
- Transparent: No
- REACH Date: 2025-07-18
- GWP-tot (A1-A3): 0,7059 kgCO2e/ST
- REACH Information obligation: No
