Schneider Electric

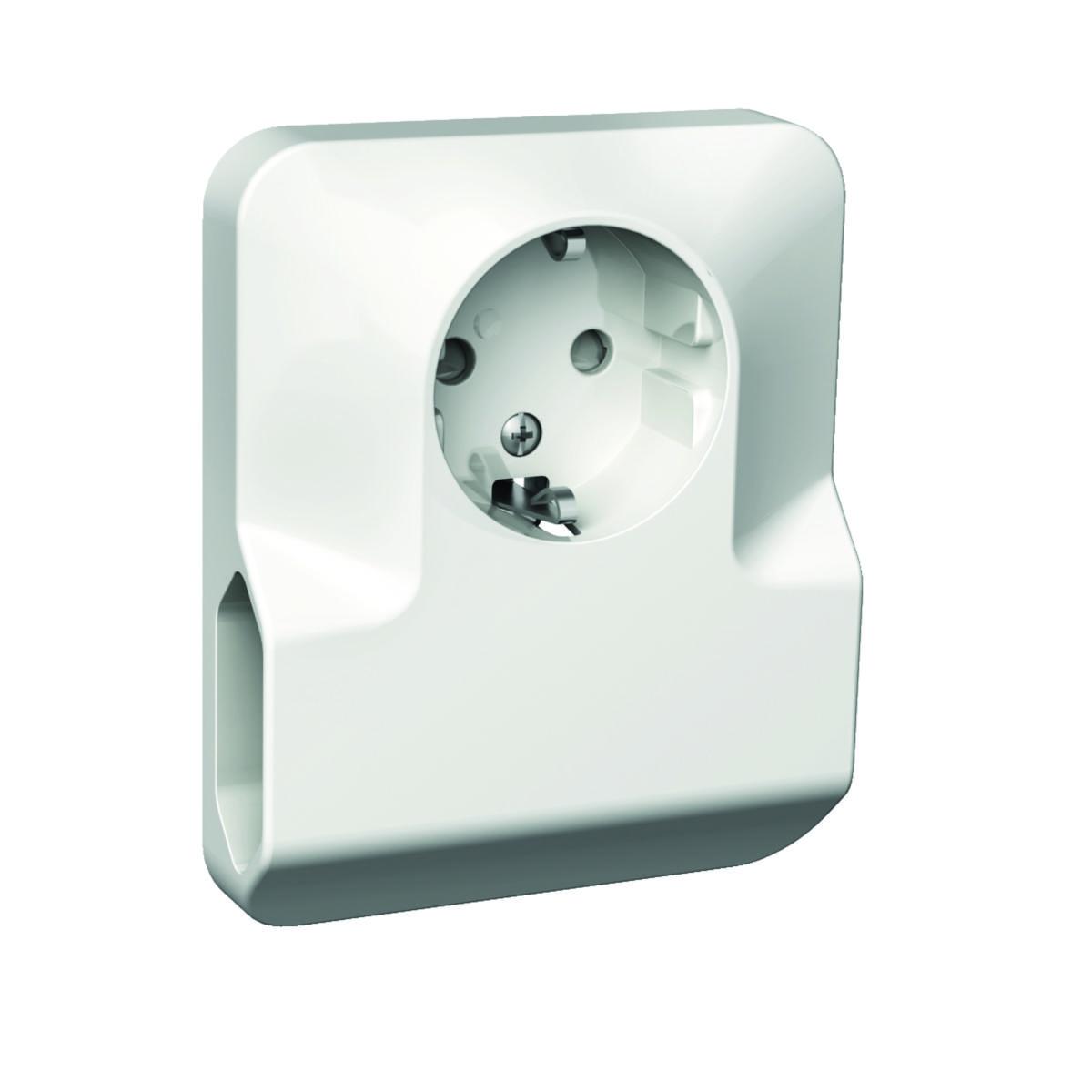

Wall socket 3-way Kombi and class II socket
WALL SOCKET COMBI WH EXXACT
Article number: Suppl. article no:
1820232
WDE002183
to see price and stock
Socket with two class II sockets and one earthed socket or with four class II sockets. Finger protected. Use WDE002359. box for surface mounting.
- Article number: 1820232
- Suppl. article no: WDE002183
- Ean no: 3606480204395
- Material class QH1700
Technical data
- Packagin Size: 1 ST/10 ST/60 ST
- Type: WDE002183
- Product series: Exxact
- Model: Other
- Number of socket outlets: 3
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 100 mm
- Device width: 82 mm
- Device depth: 0 mm
- Lockable: No
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Rated fault current: 0 mA
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP21
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Transparent: No
- REACH Date: 2022-07-20
- GWP-tot (A1-A3): 0,6573 kgCO2e/ST
- REACH Information obligation: No
