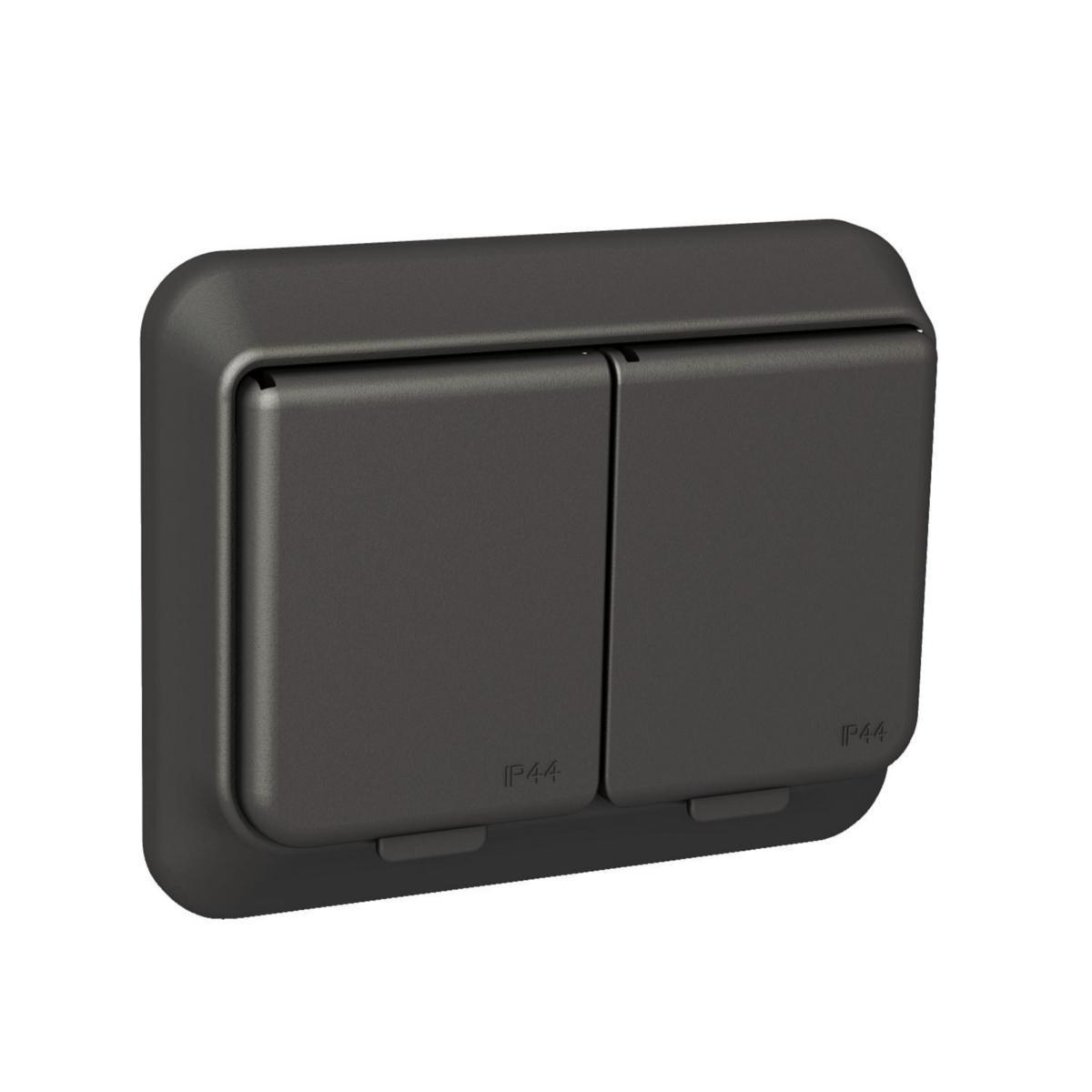

Wall socket 2-way flush-mounted with flip lid IP44 - DSO WITH LID SURFACE IP44 A WDE003192
Schneider Electric

Wall socket 2-way flush-mounted with flip lid IP44

DSO WITH LID SURFACE IP44 A WDE003192
Article number:
1820007
Suppl. article no:
WDE003192
‌
‌
‌
‌
‌
 to see price and stock
Third party verified Environmental product declarationProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.
2-way wall socket with hinged lid, 16A. Enclosure class IP44. For recessed mounting in apparatus box c/c 60 mm. Use IP44 box for surface mounting. Supplied with two neutral bridging clamps.
  • Article number:
    1820007
  • Suppl. article no:
    WDE003192
  • Ean no:
    3606480554216
  • Material class
    QH1660
Technical data
  • Packagin Size: 1 ST/5 ST/60 ST
  • Type: WDE003192
  • Product series: Exxact
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Number of socket outlets: 2
  • Protective contact: Earthing clips
  • Socket outlets phase-separated: Yes
  • Colour: Anthracite
  • Connection type: Push-in clamp
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • Device height: 85 mm
  • Device width: 100 mm
  • Device depth: 44.2 mm
  • Lockable: No
  • Number of phases: 1
  • Surface finishing: Matt
  • With hinged lid: Yes
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Flush-mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP44
  • Special power supply: None
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Lacquered
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 22.4 mm
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • Number of loop throughs: 1
  • Number of active contacts (round): 2
  • Metallic colour: No
  • Transparent: No
  • REACH Date: 2025-07-18
  • GWP-tot (A1-A3): 0,6816 kgCO2e/ST
  • REACH Information obligation: No
