Schneider Electric
Mechanical Timer Exxact
TIM.SW.INS 120 MIN WH EXXACT
Article number: Suppl. article no:
1821173
WDE002477
to see price and stock

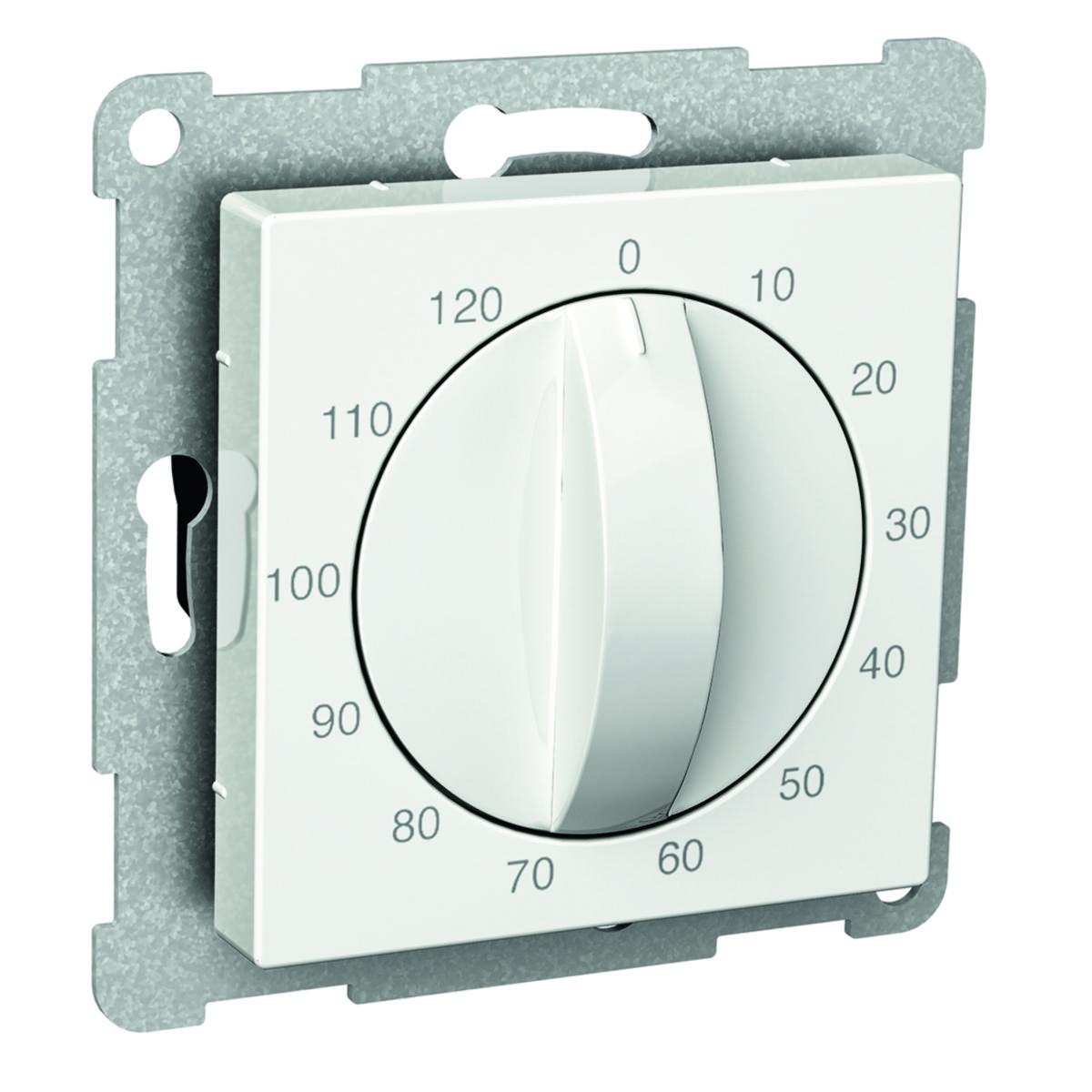

Mechanical timer, 2 pole. Spring-driven clockwork with closing contacts. Recessed mounting in apparatus boxc/c 60 mm or surface mounting in raising frame with a depth of 35 mm. Supplemented by optional Exxact frame.
- Article number: 1821173
- Suppl. article no: WDE002477
- Ean no: 3606480204876
- Material class QH2500
Technical data
- Packagin Size: 1 ST/10 ST/20 ST
- Design: Mechanical timer
- Product series: Exxact
- Time setting: 0-120 min
- Number of contacts as normally open contact: 0
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 1
- Colour: White
- Halogen free: Yes
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Assembly arrangement: Basic element with central cover plate
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 16 A
- RAL-number (similar): 9003
- Surface finishing: Glossy
- Surface protection: Untreated
- Number of modules (module system): 0
- With semiconductor output: No
- Min. depth of built-in installation box: 46 mm
- IFTTT support available: No
- Model: Mechanical
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Transparent: No
- REACH Date: 2025-07-18
- REACH contains candidate substances: Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Colour: White
- Switching time: 0-120 min
- REACH Information obligation: Yes
