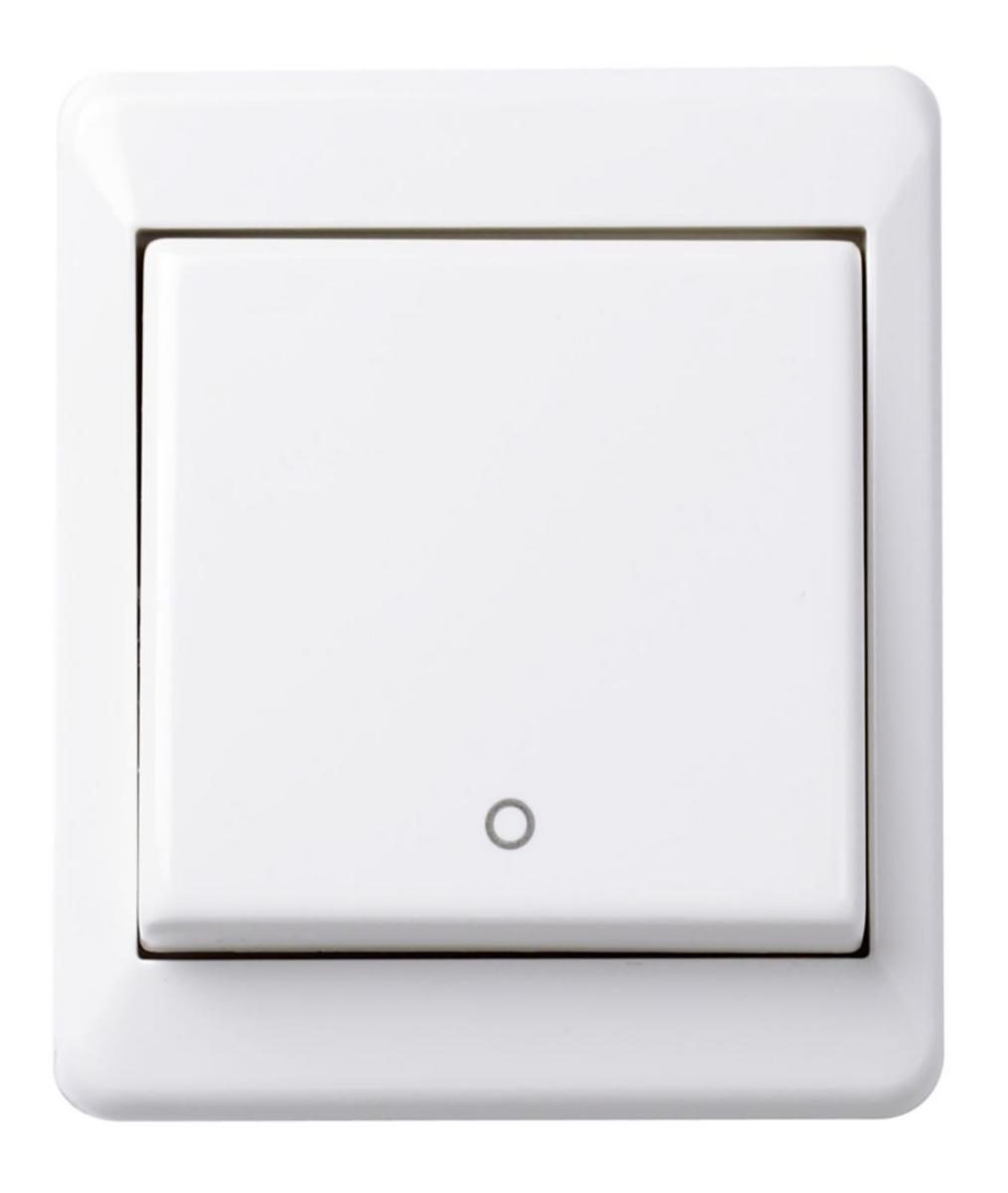

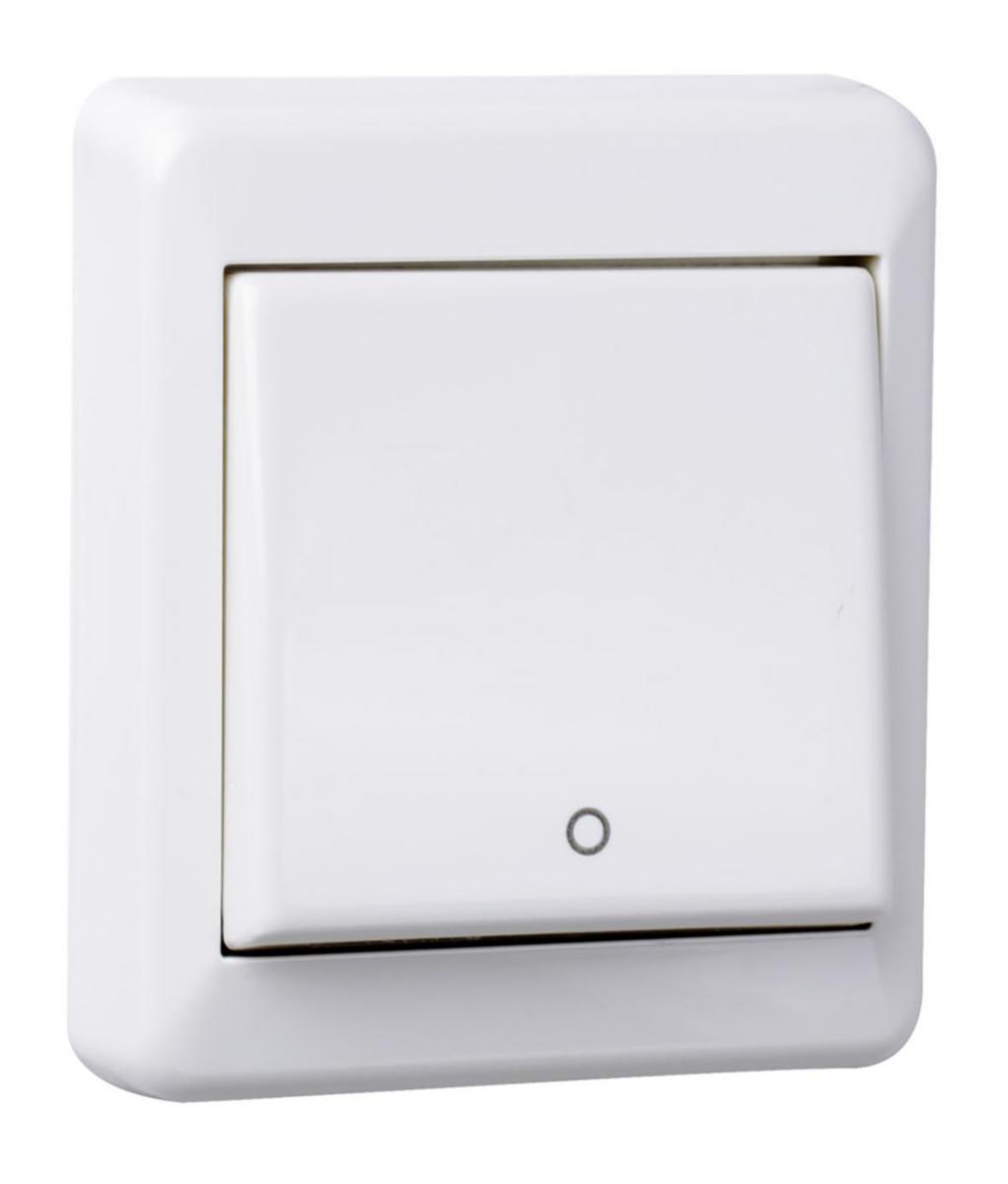

Elko-Qvik switch for surface mounted screw connection, IP21
RS16/2 P SWITCH SURFACE PW EKO07584
Article number: Suppl. article no:
1849406
EKO07584
to see price and stock
Screw connection. Rocker switch with base, rocker and frame of halogen-free thermoplast. Fixing screw interval 38 mm. Pressure-fixed cover frame and rocker are standard. Cutover 400V. The switch is equipped with full bottom plate and has several alternative fixing holes for fastening.
- Article number: 1849406
- Suppl. article no: EKO07584
- Ean no: 7020160758408
- Material class QH3400
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS/3900 PCS
- Product series: Qvick
- Wiring system: Switch 2-pole
- Operating method: Rocker/button
- Number of rockers: 1
- Lighting: No
- Push button switch: No
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9003
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 71 mm
- Device height: 84 mm
- Device depth: 28 mm
- Built-in depth: 0 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- With mounting plate: Yes
- Connection type: Screwed terminal
- Number of modules (module system): 0
- REACH Date: 2022-08-09
- REACH Information obligation: No
