Elko

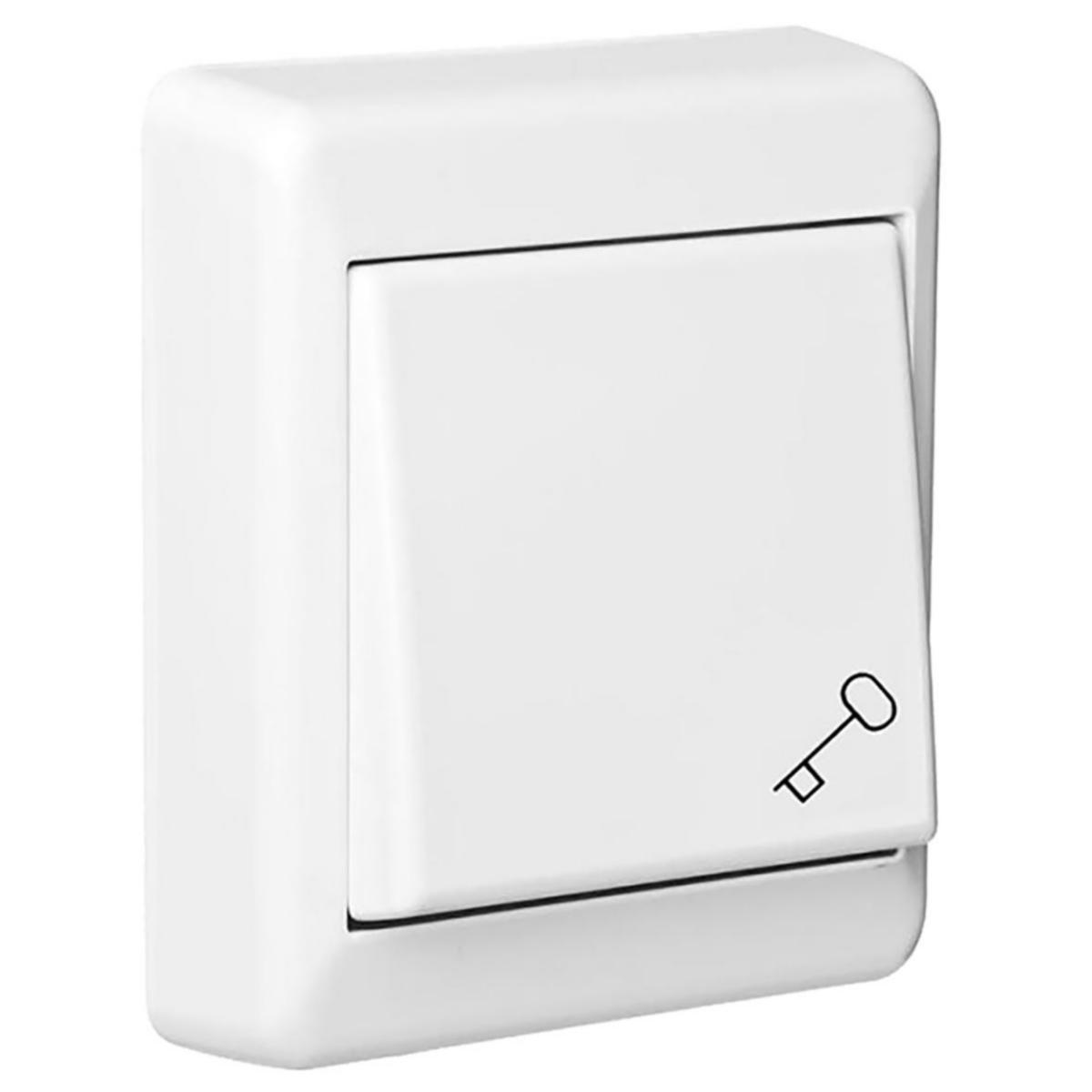

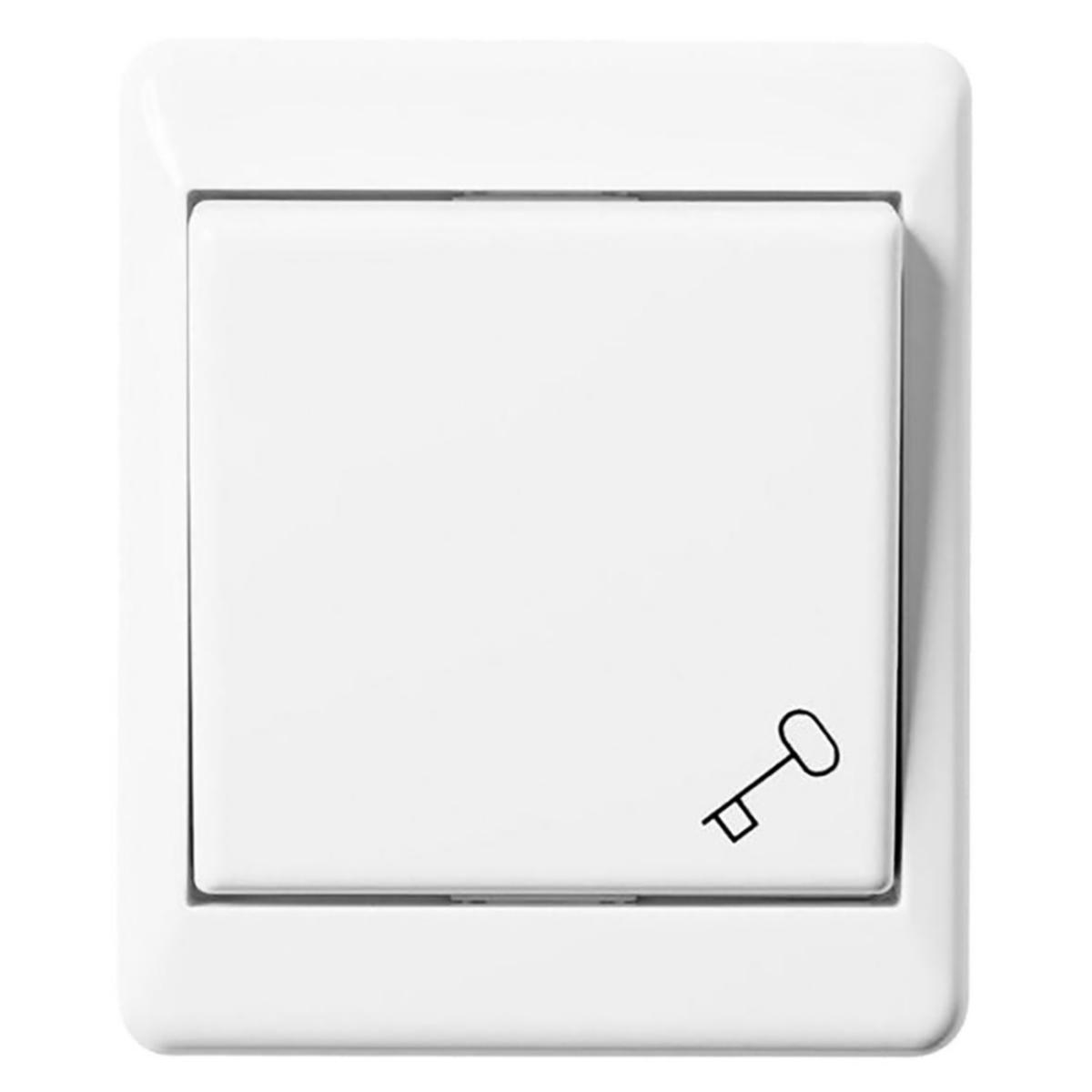

Door opening button, surface mounted, 16A, 250V, IP21
RS16/6 P W SPRING & KEYSYMBOL EKO07460
Article number: Suppl. article no:
1849344
EKO07460
to see price and stock
Rocker switch for door opening is equipped with spring-back rocker with engraved key symbol. Both closing and switching function and the ability for connecting to additional switches. The switch is equipped with full bottom plate and has several alternative fixing holes for fastening. Screw connection of the leads by means of lift clamps.
- Article number: 1849344
- Suppl. article no: EKO07460
- Ean no: 7020160746009
- Material class QH3400
Technical data
- Packagin Size: 1 ST/5 ST/50 ST
- Product series: RS
- Wiring system: Other
- Operating method: Rocker/button
- Number of rockers: 1
- Lighting: No
- Push button switch: Yes
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9003
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 71 mm
- Device height: 84 mm
- Device depth: 28 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- With mounting plate: Yes
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- REACH Information obligation: No
