Schneider Electric

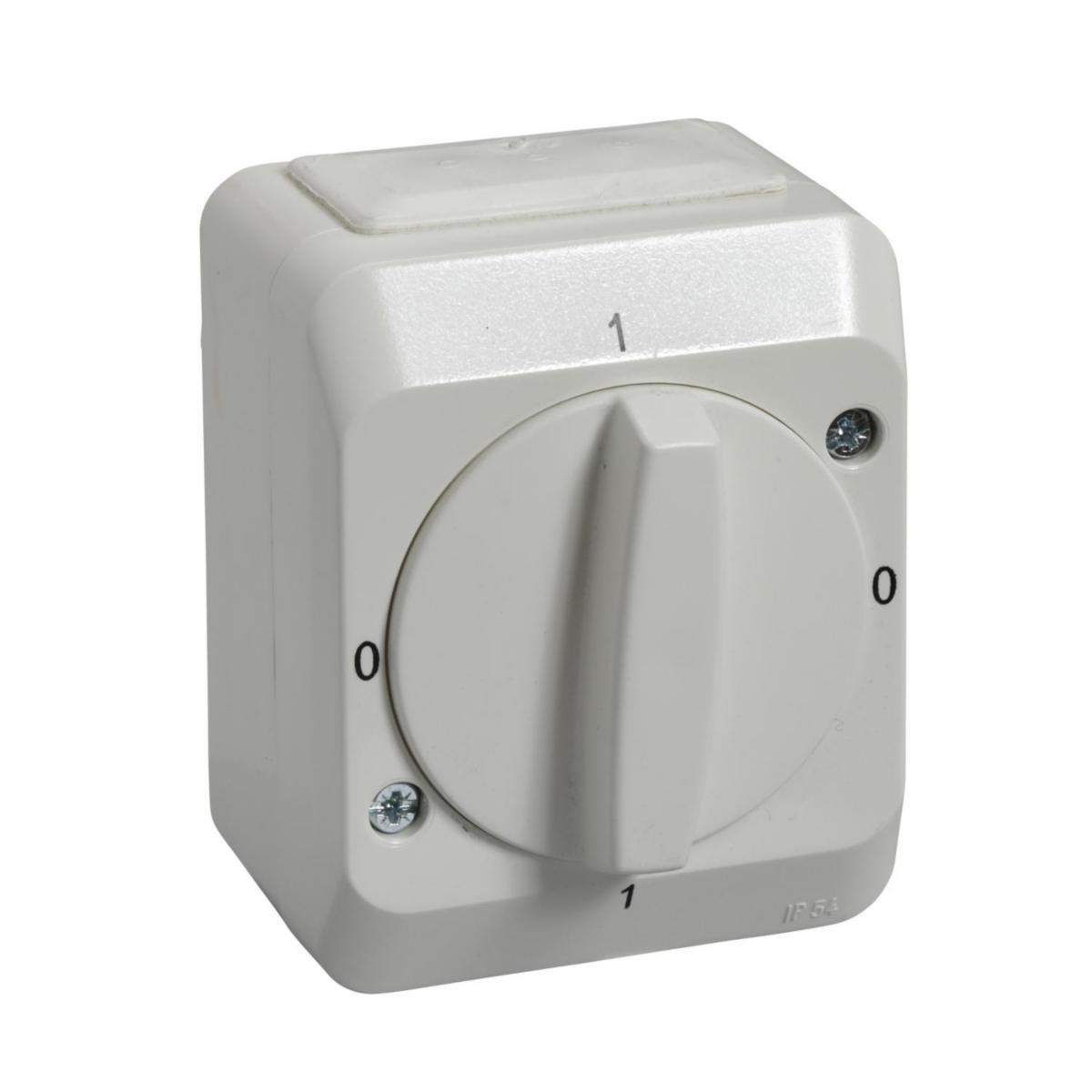

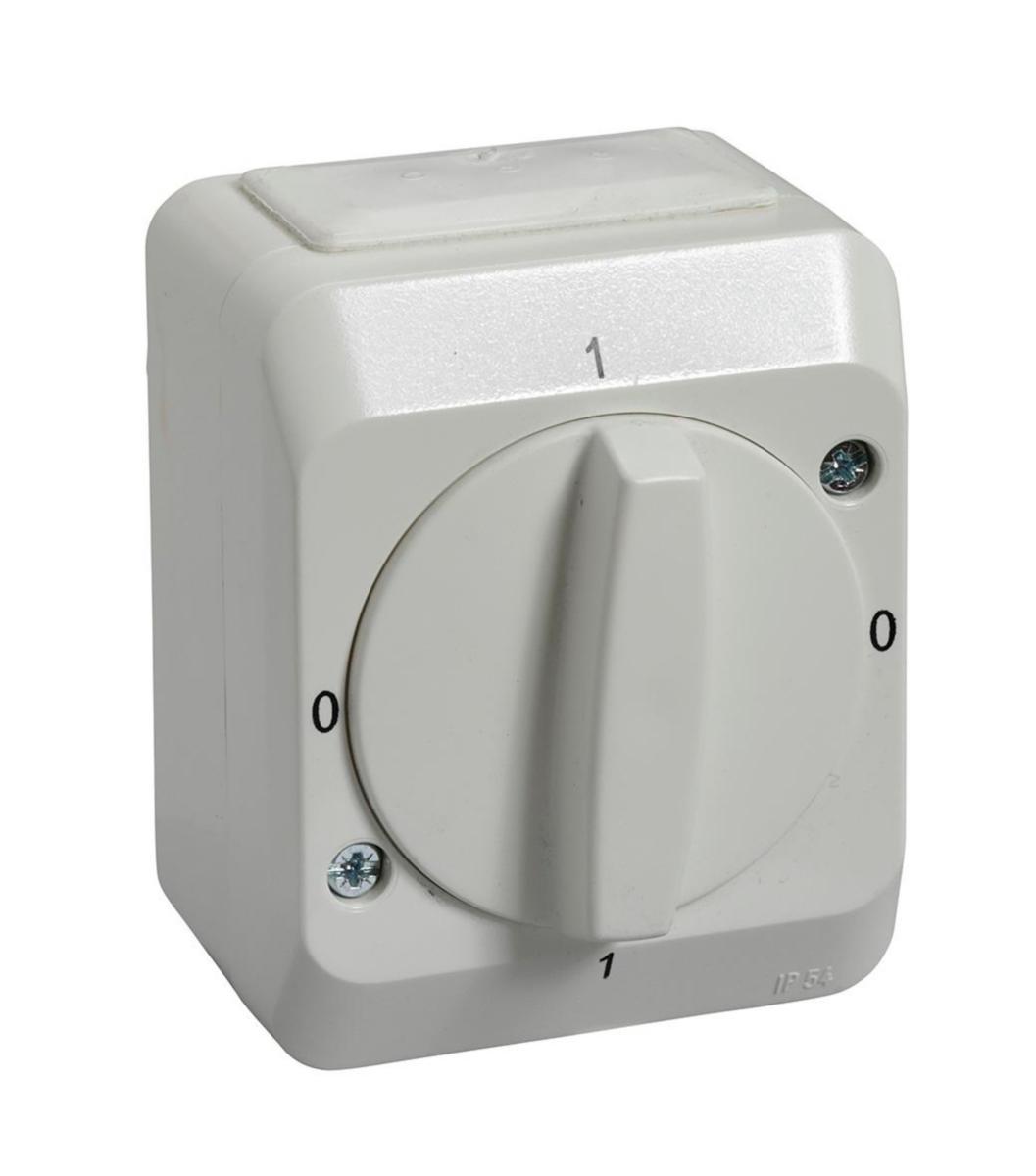

Rotary switch, Aqua Stark
AQUA-S 2-P ROT SWITCH 16A PW 183500700
Article number: Suppl. article no:
1835007
183500700
to see price and stock
Rotary switch for surface IP44 mounting with two membrane nipples. With clear position indication 1-0. Screw connection. Two neutral transfer clamps.
- Article number: 1835007
- Suppl. article no: 183500700
- Ean no: 6438054013778
- Material class QH0702
Technical data
- Packagin Size: 1 PCS/5 PCS/60 PCS
- Product series: Aqua Stark
- Wiring system: Switch 2-pole
- Lighting: No
- Number of rockers: 0
- Device width: 60 mm
- Device depth: 55 mm
- Device height: 75 mm
- Halogen free: Yes
- Label space/information surface: No
- Colour: White
- Switching current for fluorescent lamps: 16 AX
- Suitable for degree of protection (IP): IP44
- Operating method: Turn button
- Material: Plastic
- Material quality: Thermoplastic
- With mounting plate: No
- Assembly arrangement: Basic element with complete housing
- Mounting method: Surface mounted
- Nominal voltage: 230 V
- Rated current: 16 A
- RAL-number (similar): 9010
- Push button switch: No
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Untreated
- Monitoring contact: No
- REACH Date: 2022-07-20
- Built-in depth: 0 mm
- REACH Information obligation: No
- Connection type: Screwed terminal
